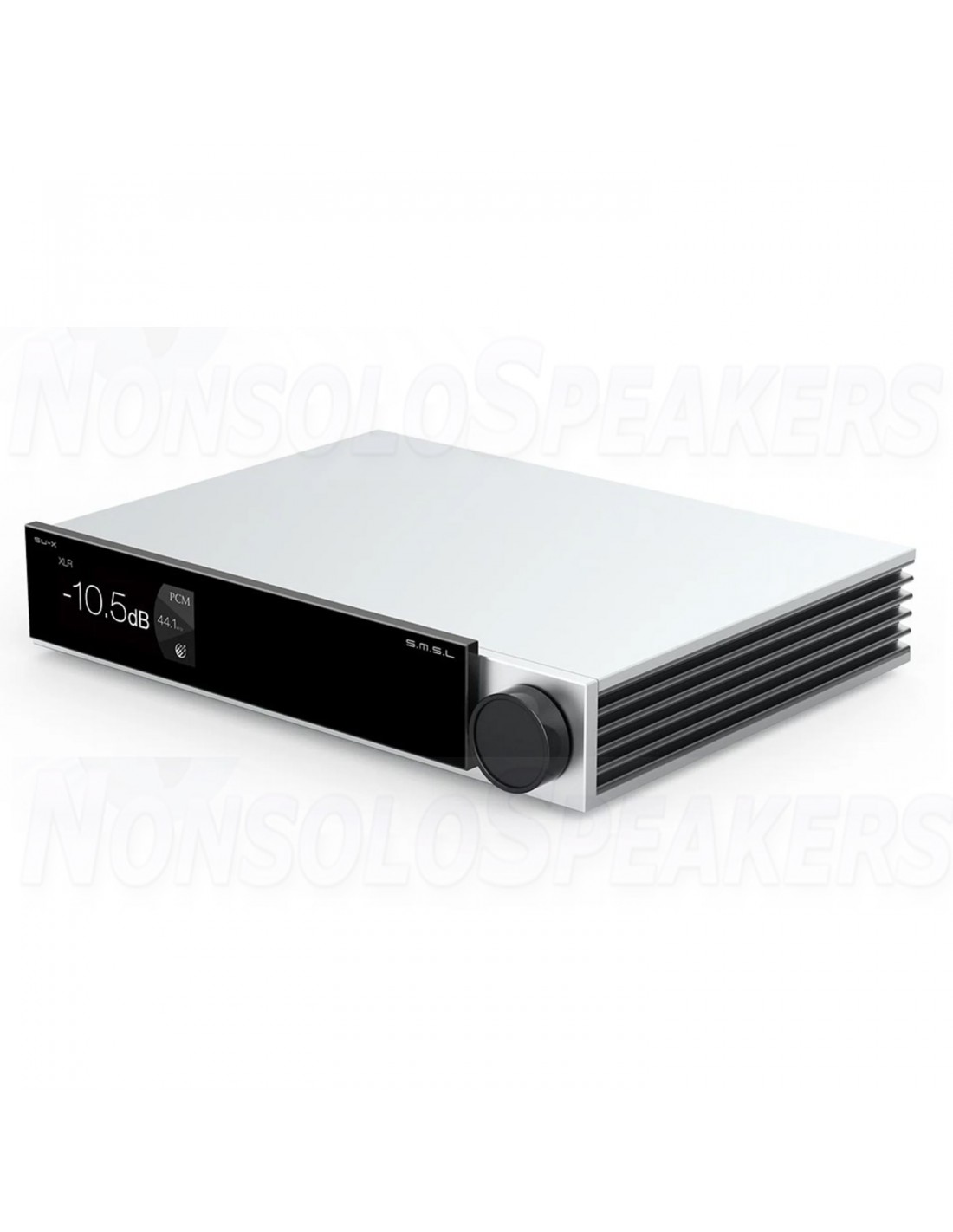

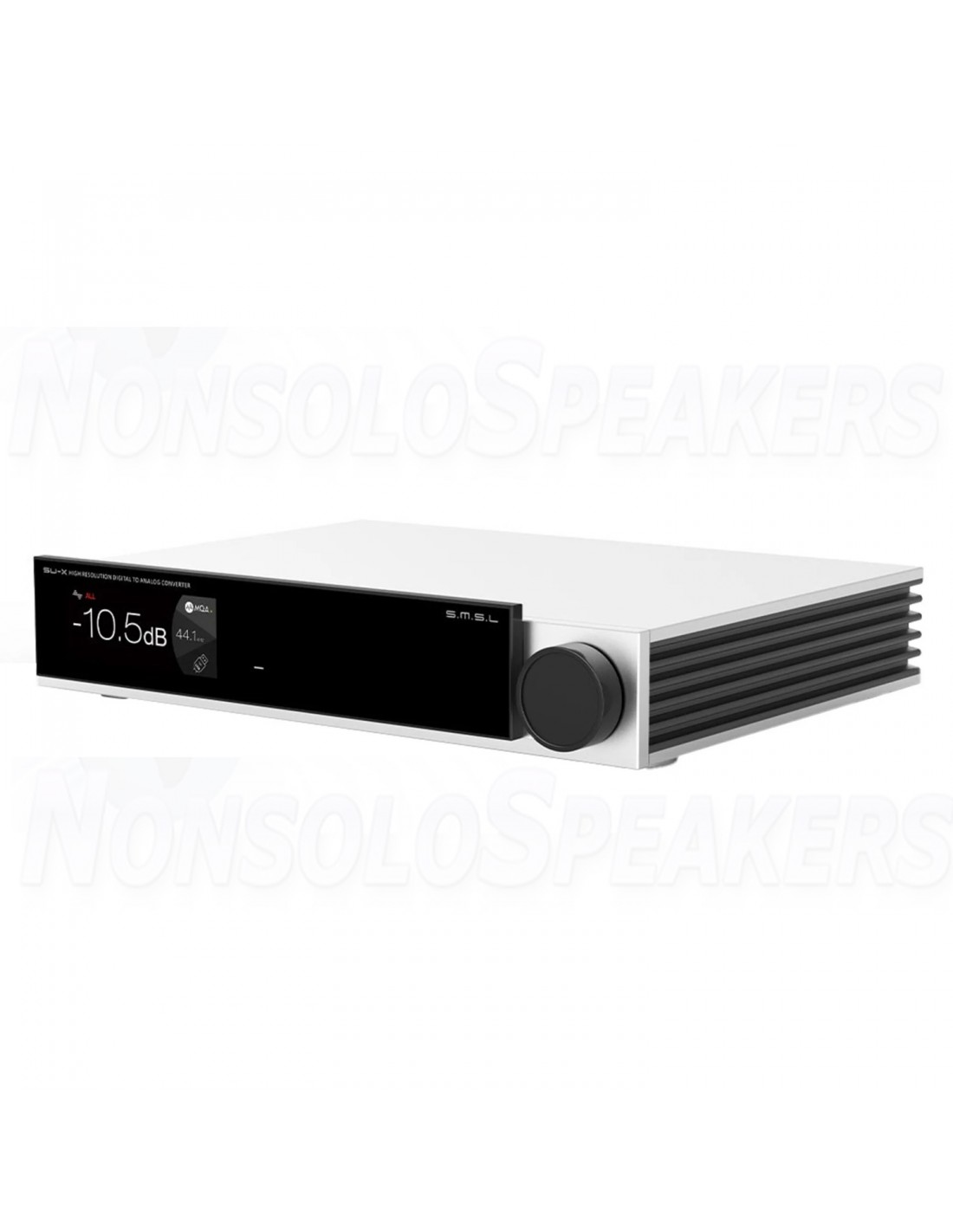

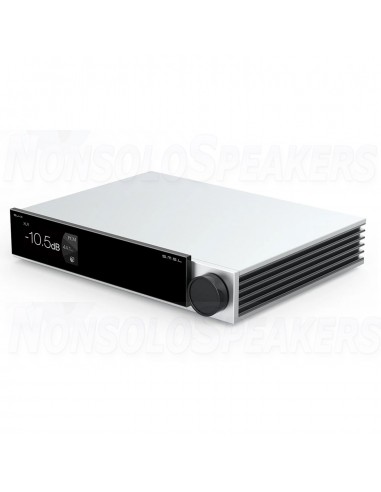

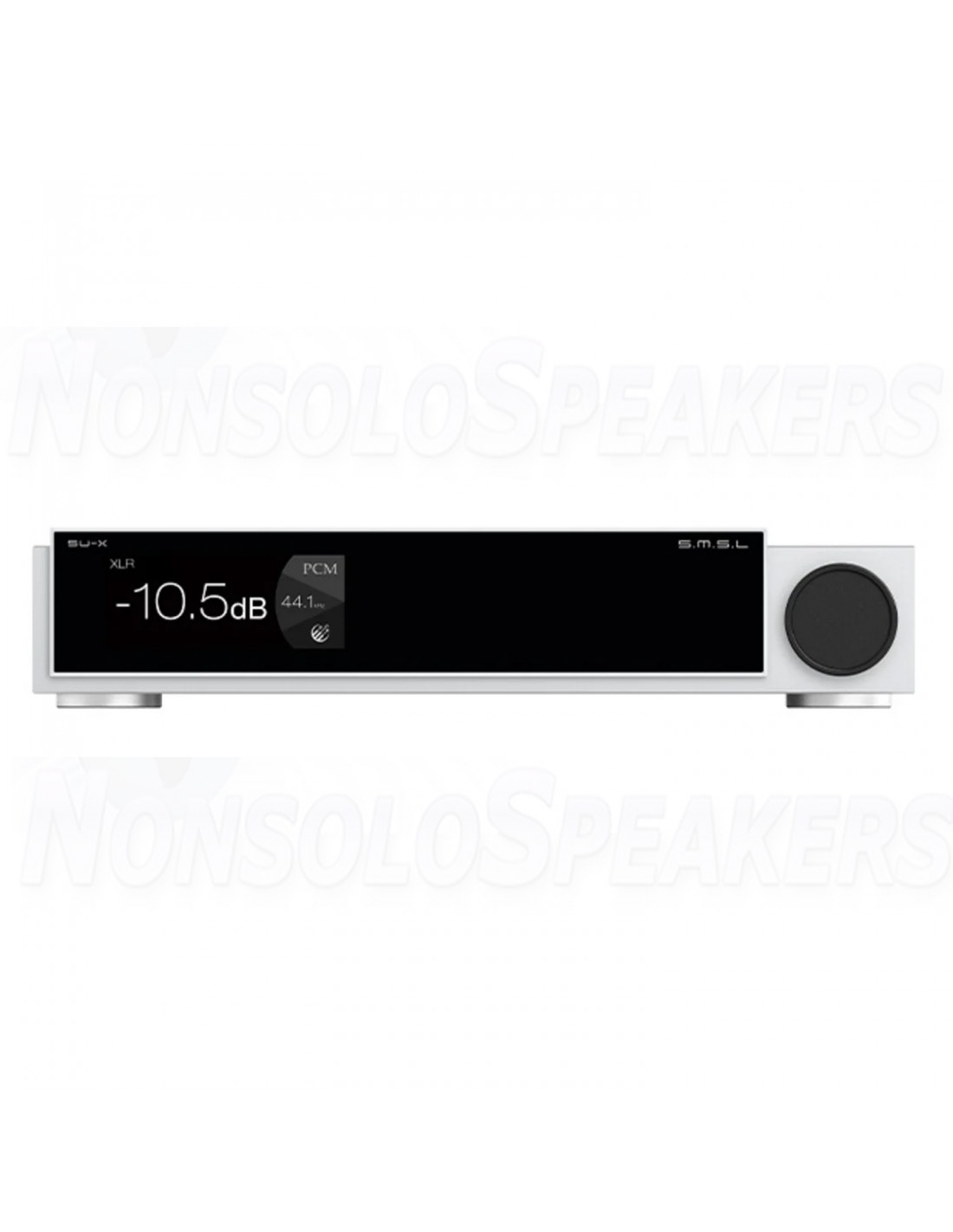

SMSL SU-X Dual ES9039MSPRO Digital to Analog Convertor (DAC)

.

Product description

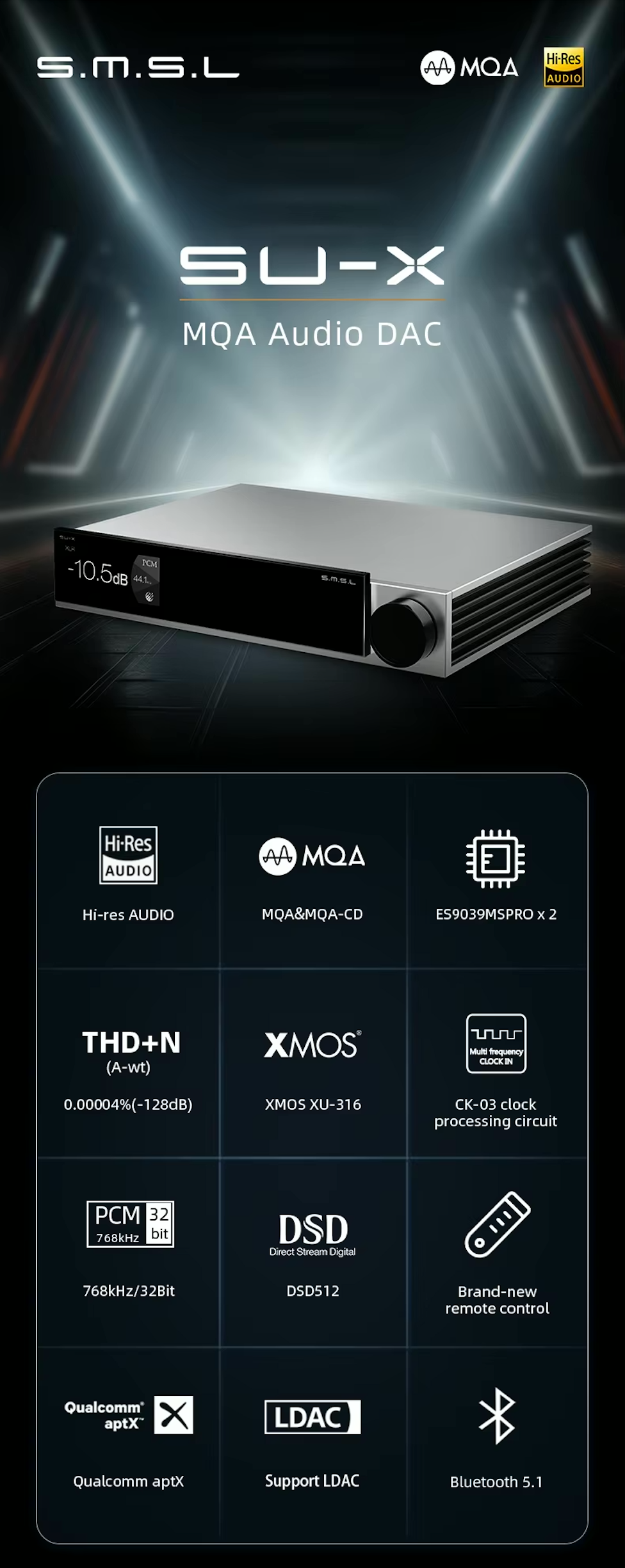

The SMSL SU-X is a high-performance dual Digital-to-Analog Converter (DAC) that delivers exceptional sound quality and advanced features for music enthusiasts. It features the latest dual ES9039MSPRO DAC chips from ESS Technology, a third-generation XMOS XU316 USB controller, Bluetooth 5.1 with support for LDAC, aptX HD, SBC, and AAC, and a self-developed CK-03 jitter processing circuit.

.

Highlights

Dual ES9039MSPRO DAC Chips

Third-generation XMOS XU316 USB Controller

Bluetooth 5.1 with Support for LDAC, aptX HD, SBC, and AAC

Self-developed CK-03 Jitter Processing Circuit

Two Groups of Linear Power Supplies

8-Channel Parallel Circuit Design

21 High-End Dual Op-Amps and HiFi Components

-

Product Details

SU-X Dual ES9039MSPRO Digital to Analog Convertor (DAC)

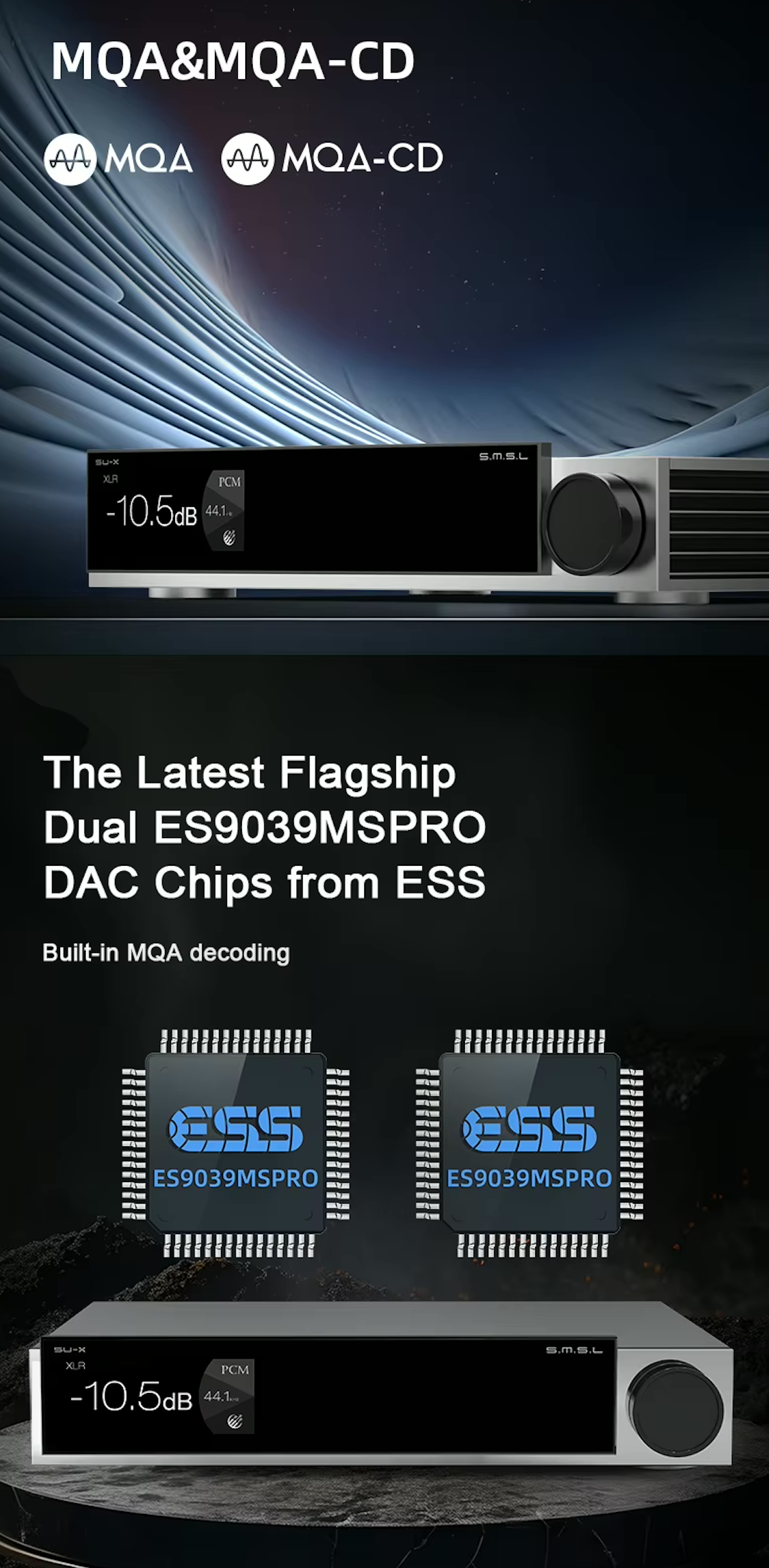

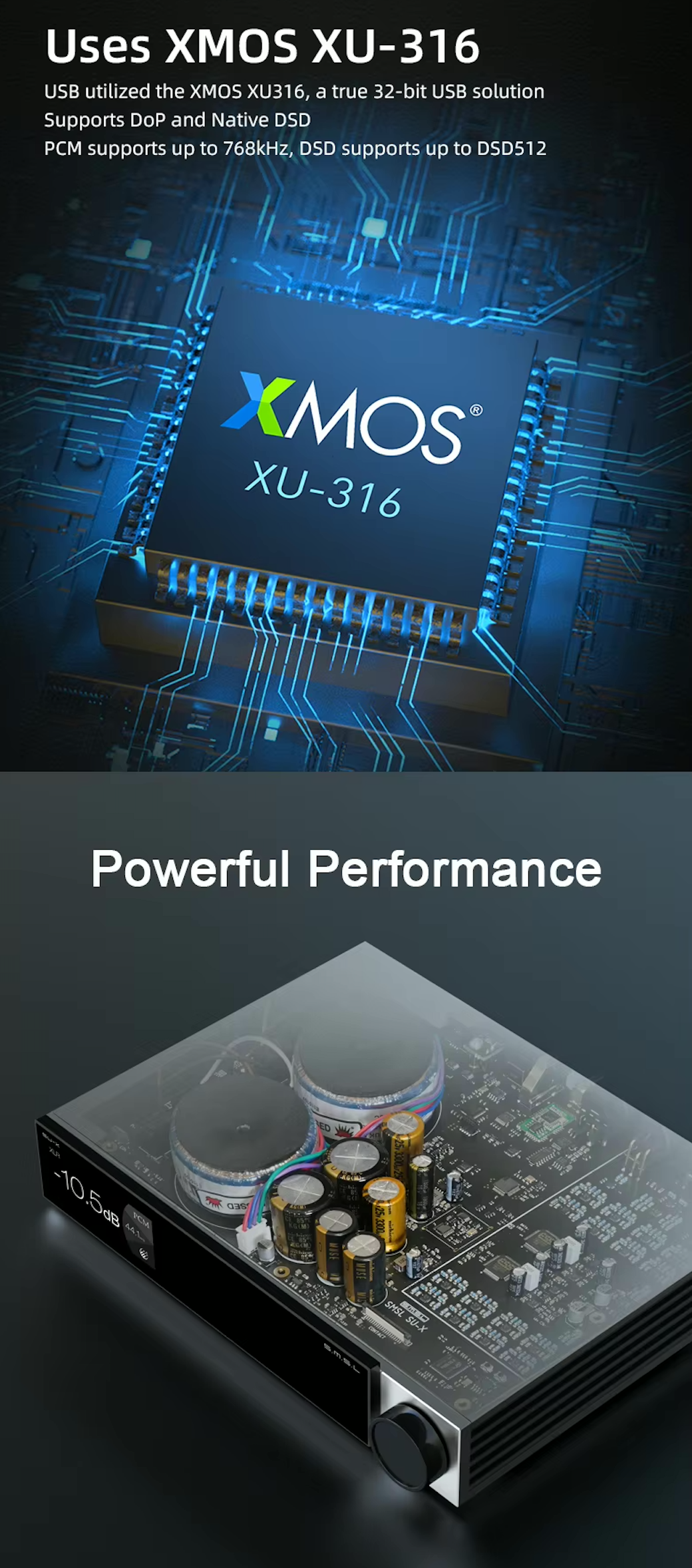

The SU-X's dual ES9039MSPRO DAC chips are capable of supporting high-resolution audio playback up to 32-bit/768kHz PCM and DSD512. This means that the SU-X can reproduce the finest details in your music with stunning clarity and precision. The SU-X also features a third-generation XMOS XU316 USB controller, which provides seamless compatibility with a wide range of digital audio sources, including computers, smartphones, and audio players. In addition, the SU-X supports Bluetooth 5.1 with support for high-quality codecs like LDAC and aptX HD, allowing you to wirelessly enjoy your music from any Bluetooth-enabled device.

To ensure the highest possible audio quality, the SU-X utilizes two separate linear power supplies for the digital and analog sections. This helps to eliminate noise and interference, resulting in a clean and transparent soundstage. The SU-X also features an 8-channel parallel circuit design, which further reduces distortion and delivers exceptional audio clarity and detail. The SU-X is equipped with a 21 high-end dual op-amps and HiFi components, which ensure a rich and dynamic soundstage.

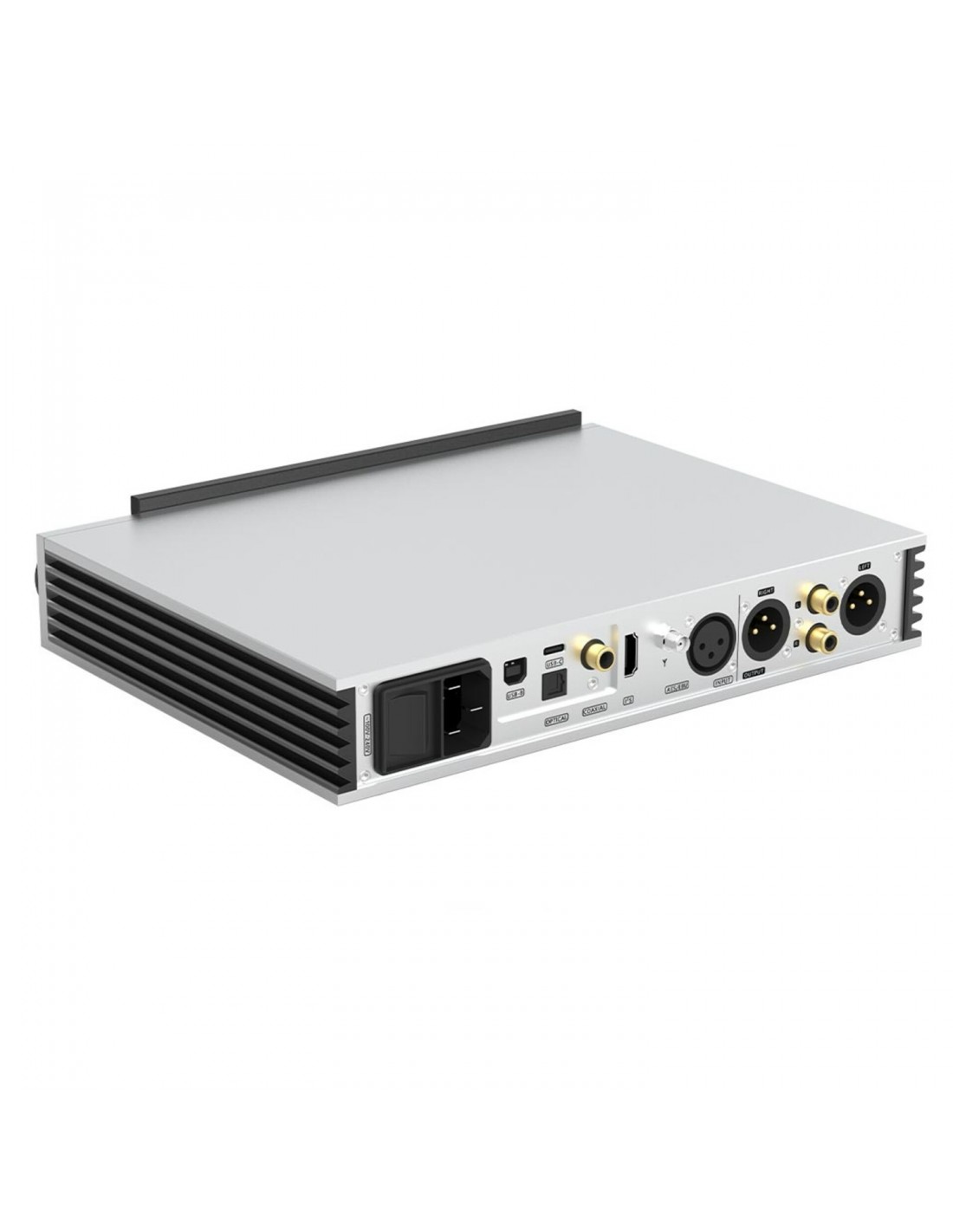

The SU-X is a versatile DAC that can be connected to a wide range of audio systems. It features both analog and digital outputs, allowing you to connect it to amplifiers, active speakers, and digital audio recorders. The SU-X also supports a variety of input formats, including USB, optical, coaxial, and Bluetooth, giving you flexibility to connect to a wide range of digital audio sources.

.

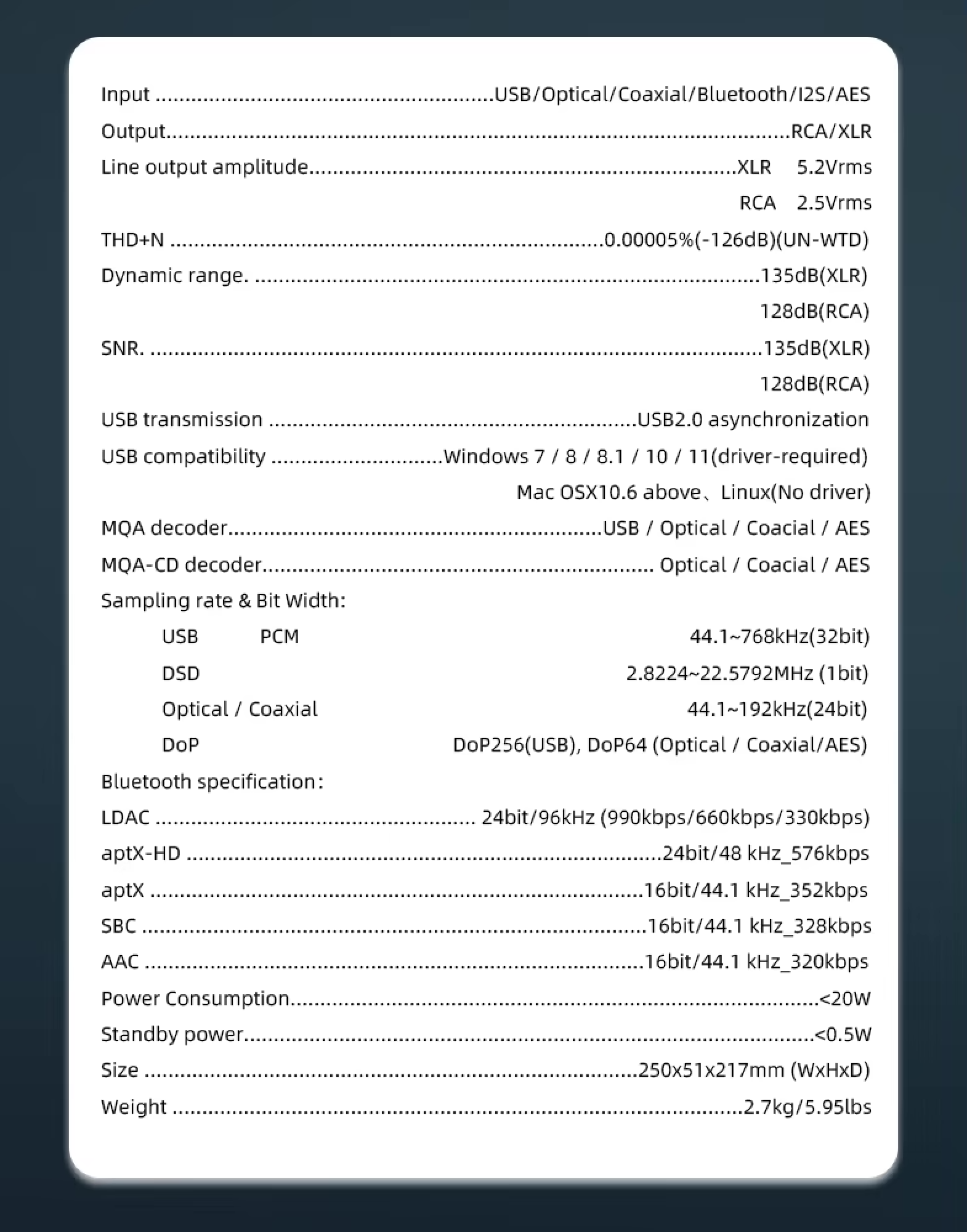

Specifications

Article number SMSL SU-X

Wireless Connectivity Bluetooth, LDAC 24bit/96kHz (990kbps/660kbps/330kbps,) aptX-HD 24bit/48 kHz 576kbps, aptX 16bit/44.1 kHz_352kbps, SBC 16bit/44.1 kHz 328kbps, AAC 16bit/44.1 kHz_320kbps

DAC Chipset Flagship DAC chip ES9039MSPRO from American ESS, built-in MQA decoding

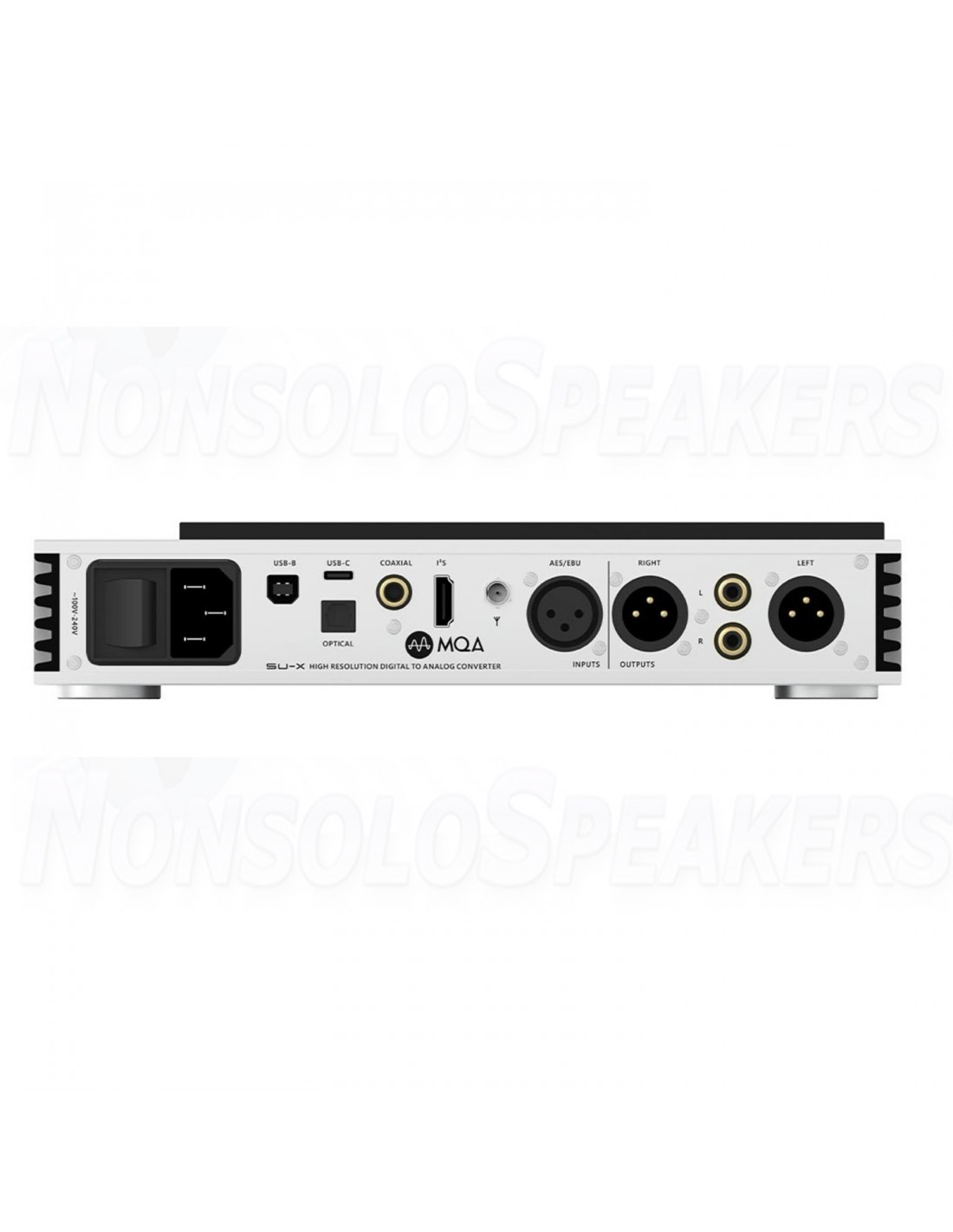

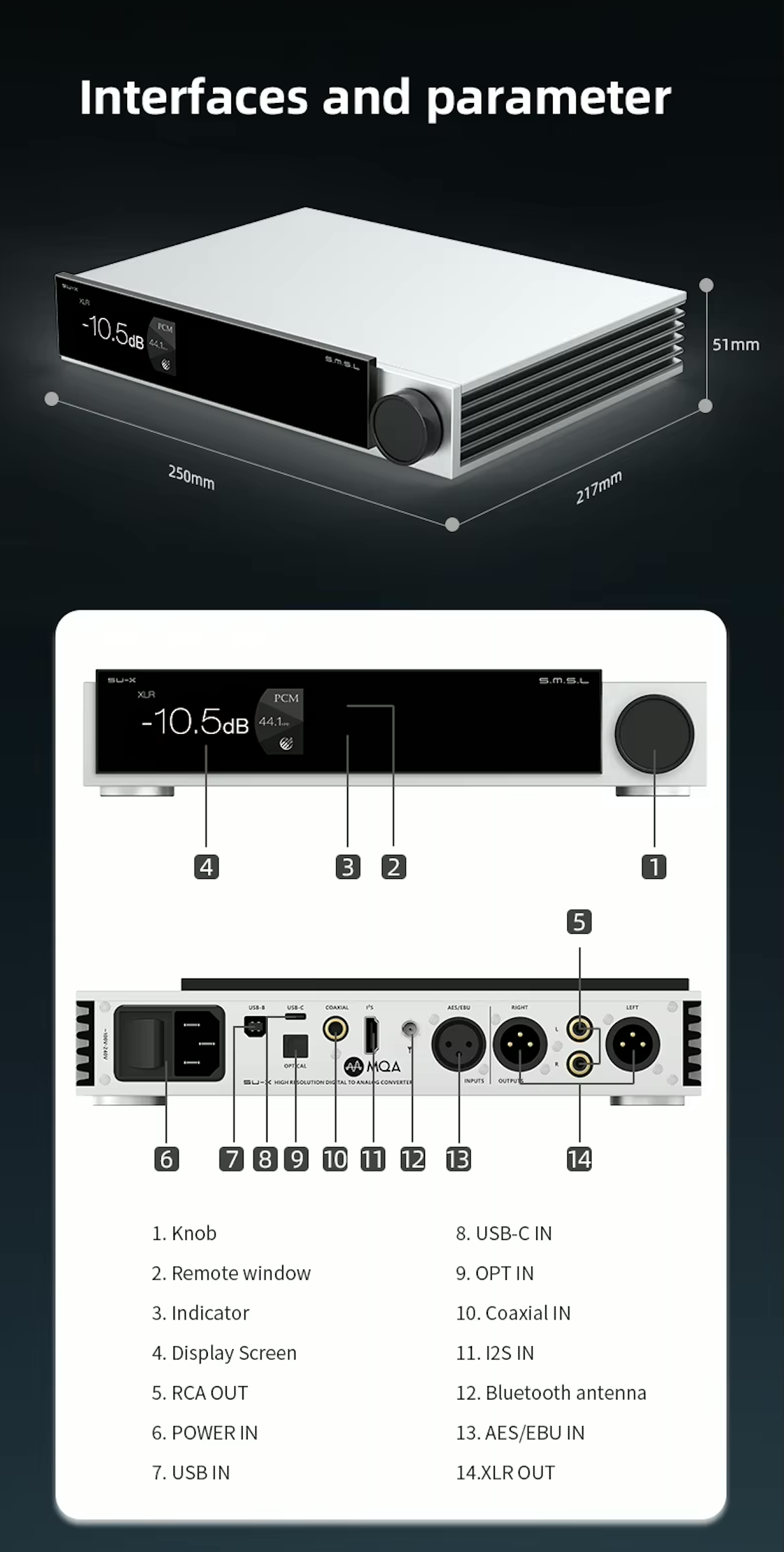

Inputs USB / Optical / Coaxial / Bluetooth / I2 S / AES

Outputs RCA / XLR

Dynamic Range 135dB(XLR),128dB(RCA)

SNR 135dB(XLR),128dB(RCA)

USB Compatibility Windows 7 / 8 / 8.1 / 10(Needs Driver) Mac OSX10.6 or Later, Linux(Driverless)

Processing resolution & sample rate USB PCM 44.1 ~ 768kHz(32bit), DSD 2.8224 ~ 22.5792MHz(1bit), Optical / Coaxial 44.1 ~ 192kHz(24bit), DoP DoP256(USB),DoP64(Optical / Coaxial / AES)

Power consumption <20W

Standby power consumption <0.5W

Remote control Yes

Dimensions 250 x 51 x 217mm (WxHxD)

Weight 2.7kg/5.95lbs
