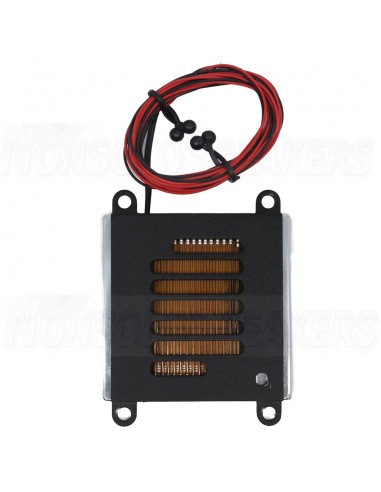

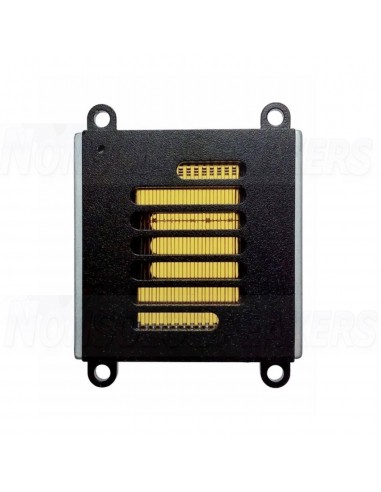

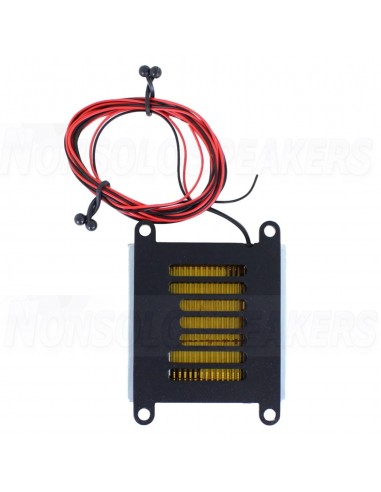

Mundorf AMT17D2.2 Dipole Tweeter

.

Highlights

• No baffle required
• Frequency Range up to 31,000 Hz

.

Product Details

Mundorf AMT17D2.2 Dipole Air Motion Tweeter (AMT)

Mundorf offers today's largest selection of Air Motion Transformer (AMT) tweeters worldwide.  The different lines were developed for certain applications and requirements.  All Mundorf HiFi AMT tweeters have two superior key properties: excellent transient response and outstanding low distortion ratio.  The differences lie mainly in their frequency ranges, sound pressure levels and dispersion angles.

Free-standing Dipole. Usable as a super tweeter for existing speaker systems or as free-standing tweeter in dipole systems.

.

Technical Specifications

• Article number AMT17D2.2
• Tweeter Type Soft Dome
• Cone / Dome Diameter 1/2"
• Power Handling (RMS) 20 Watts
• Impedance (Z) 4 Ω
• Sensitivity (SPL at 1m / 2.83V) 88.5 dB
• Frequency Response 4,500 to 20,000 Hz
• Resonant Frequency (Fs) 2832 Hz
• DC Resistance (Re) 3.07 ohms
• Voice Coil Inductance (Le) 0.02 mH
• Mechanical Q (Qms) 0.93
• Electromagnetic Q (Qes) 8.44
• Total Q (Qts) 0.84
• Overall Outside Diameter 1.77"
• Cutout Diameter 1.16"
• Depth 0.45"
