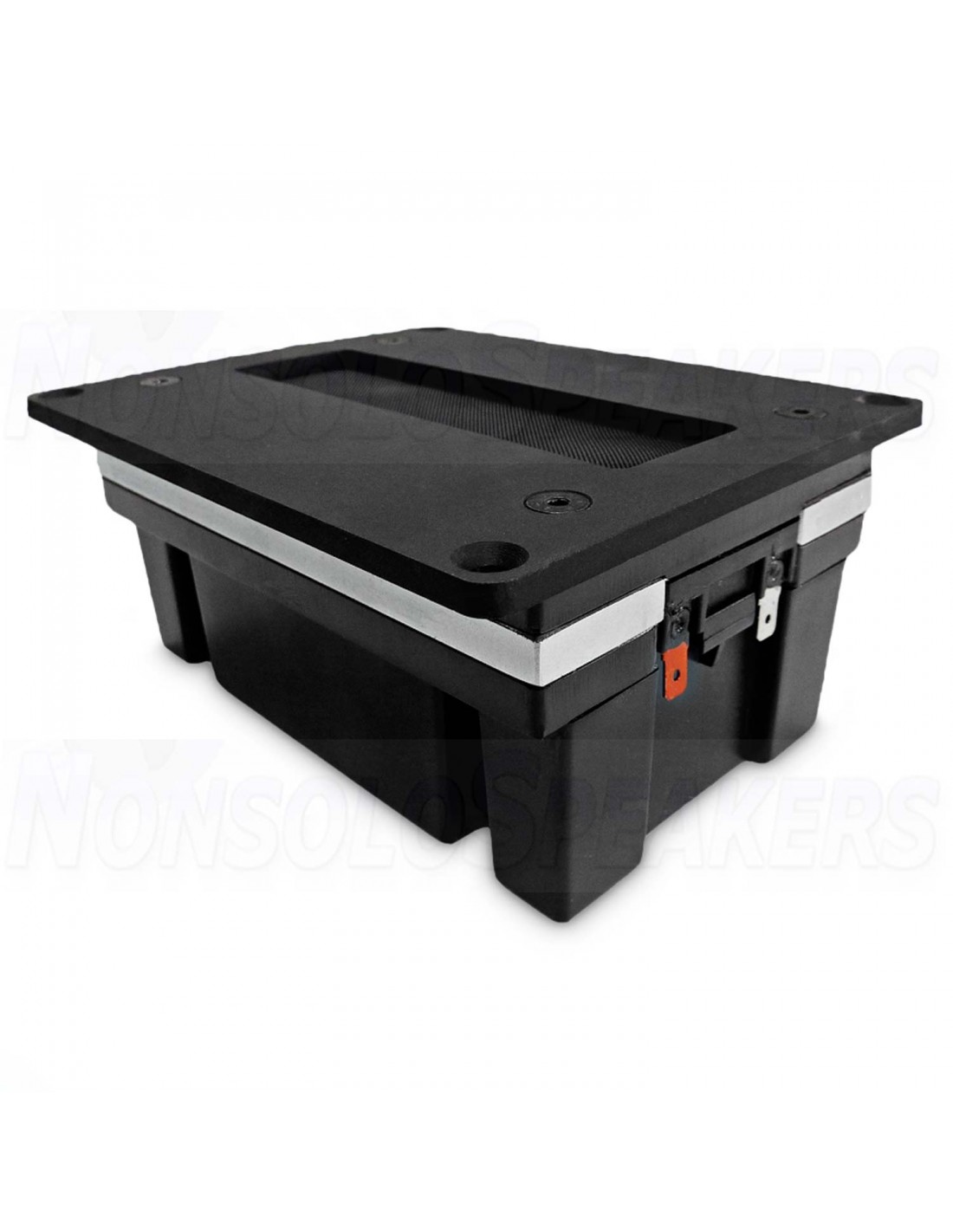

Beyma TPL-200/B - Tweeter Planare 8ohm 101dB 120W

The Beyma TPL-200/B in black is a high-grade pleated diaphragm tweeter with a high sensitivity of 104dB and that stands out for its incredibly linear frequency response and extremely low distortion. This horn is designed specifically for use as part of a high-grade system.

.

Key Features:

• Superior sound reproduction quality
• Extended frequency response (1 - 23 kHz)
• High sensitivity (101 dB)
• High power handling 240 W program (X-bow®)
• Extremely linear frequency response
• Ultra low distortion
• Designed for High End systems

.

Technical Specifcations:

• Rated impedance 8 Ω
• D.C. resistance 4,9 Ω
• Power capacity* 120 WAES above 1 kHz
• Program power 240 W above 1 kHz
• Sensitivity** 101 dB 1W @ 1m
• Frequency range 1 - 23 kHz
• Recommended crossover 1 kHz or higher (12 dB/oct min.)

.

Mounting Informations:

• Overall dimensions 160 x 130 x 72 mm
• Cutout dimensions 5,12 x 6,30 x 2,83 in
• Mounting 152 x 105 mm 5,98 x 4,13 in Four M5 threaded holes
• Net weight 2,75 kg
• Shipping weight 3,05 kg
