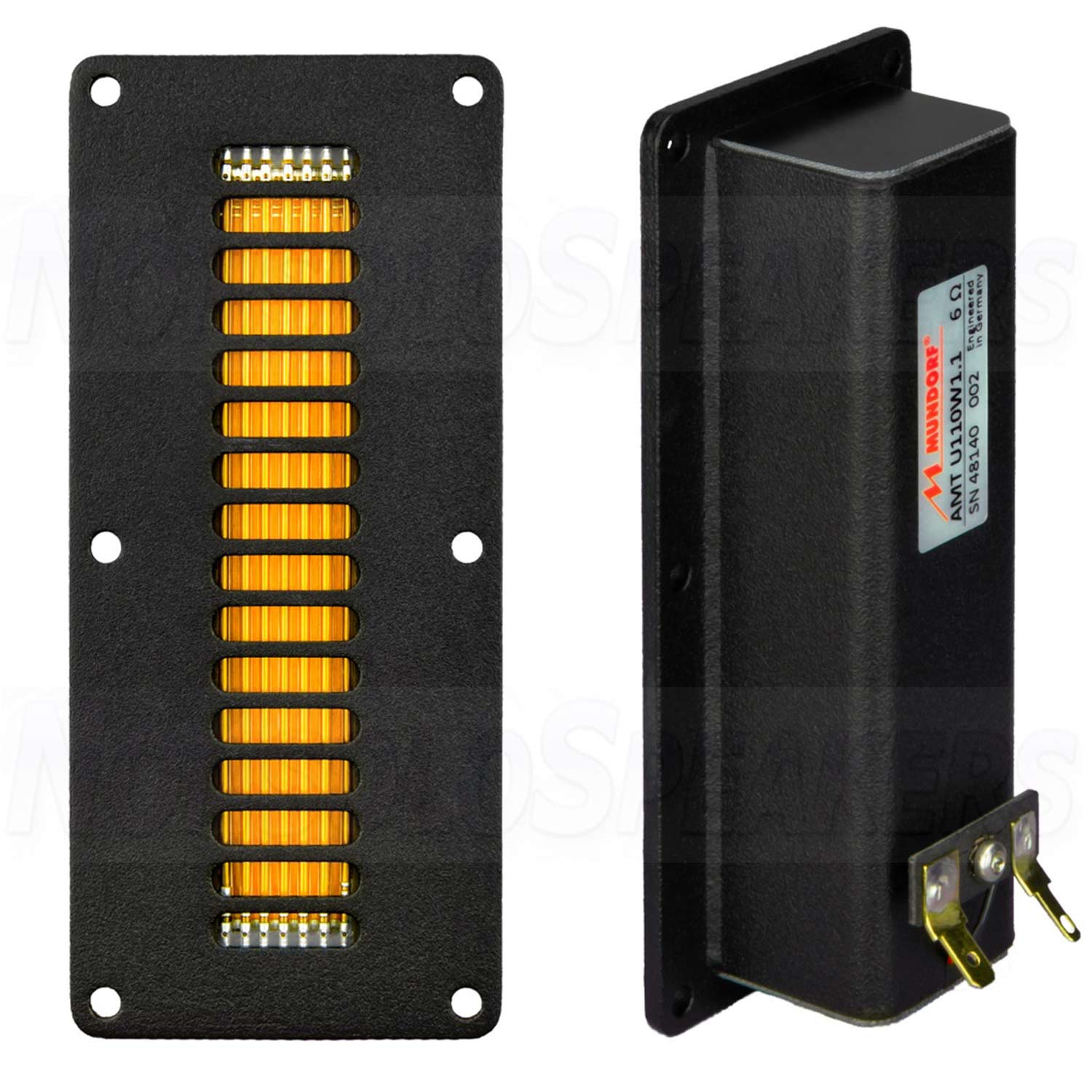

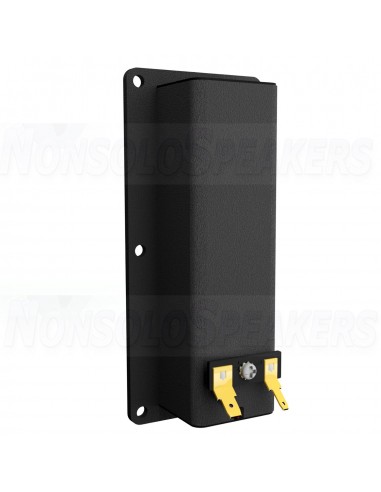

Mundorf AMTU110W1.1 Air Motion Transformer
Mundorf AMTU110W1.1 Air Motion Transformer
AMT U110W1.1 offers huge SPL reserves for large floor standing speakers with a low crossover frequency or for quite demanding home-theater speakers. It is predestined for applications where low ceiling or floor reflections might cause difficulties.
You might also like
Mundorf AMTU110W1.1 Air Motion Transformer
1 piece
Tweeter 6 Ohms · 55x125mm · Neodymium
AMT U110W1.1 offers huge SPL reserves for large floor standing speakers with a low crossover frequency or for quite demanding home-theater speakers. It is predestined for applications where low ceiling or floor reflections might cause difficulties. Its SPL reserves, together with the decisive quality features of our AMT U.Series with Mundorf diaphragm, such as exceptionally low K3 / K5 distortion data, a truly powerful music performance within the entire application range and, at the same time, the fine micro-dynamics and richness of music details that distinguish all Mundorf AMTs, make AMT U110W1.1 always the first choice when a little more of everything is in demand.
- power handling (continuous/programme) = 20/110 W
- frequency range = 1700-27000 Hz
- resonance frequency fs = 1750 Hz
- impedance R = 6 Ohm
- sound pressure level SPL = 93 dB (2,83V; 1m)
- DC resistance Re = 5,5 Ohm
- effective piston radiating area Sd = 43,6 cm2
- overall diameter d = 125x55 mm
