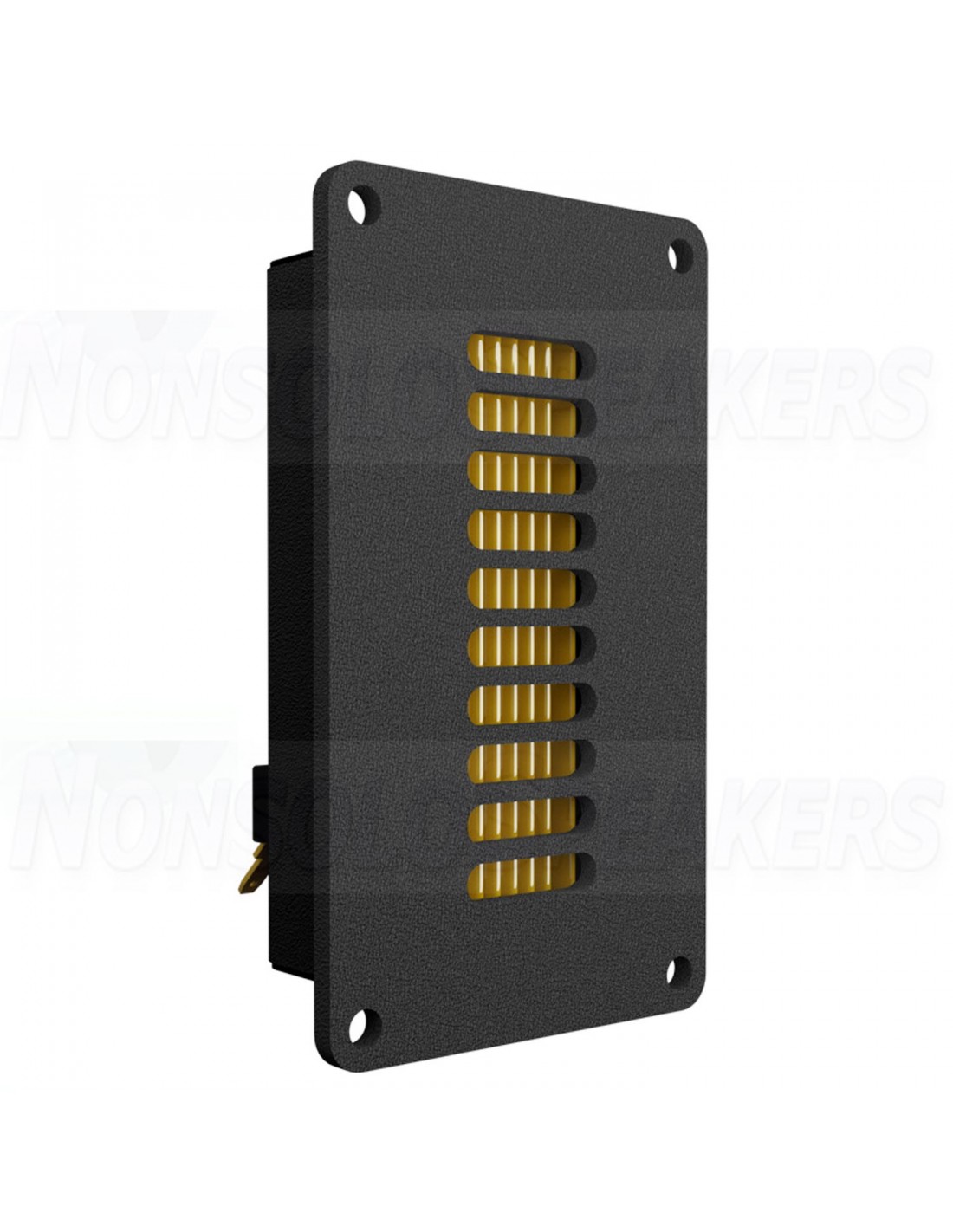

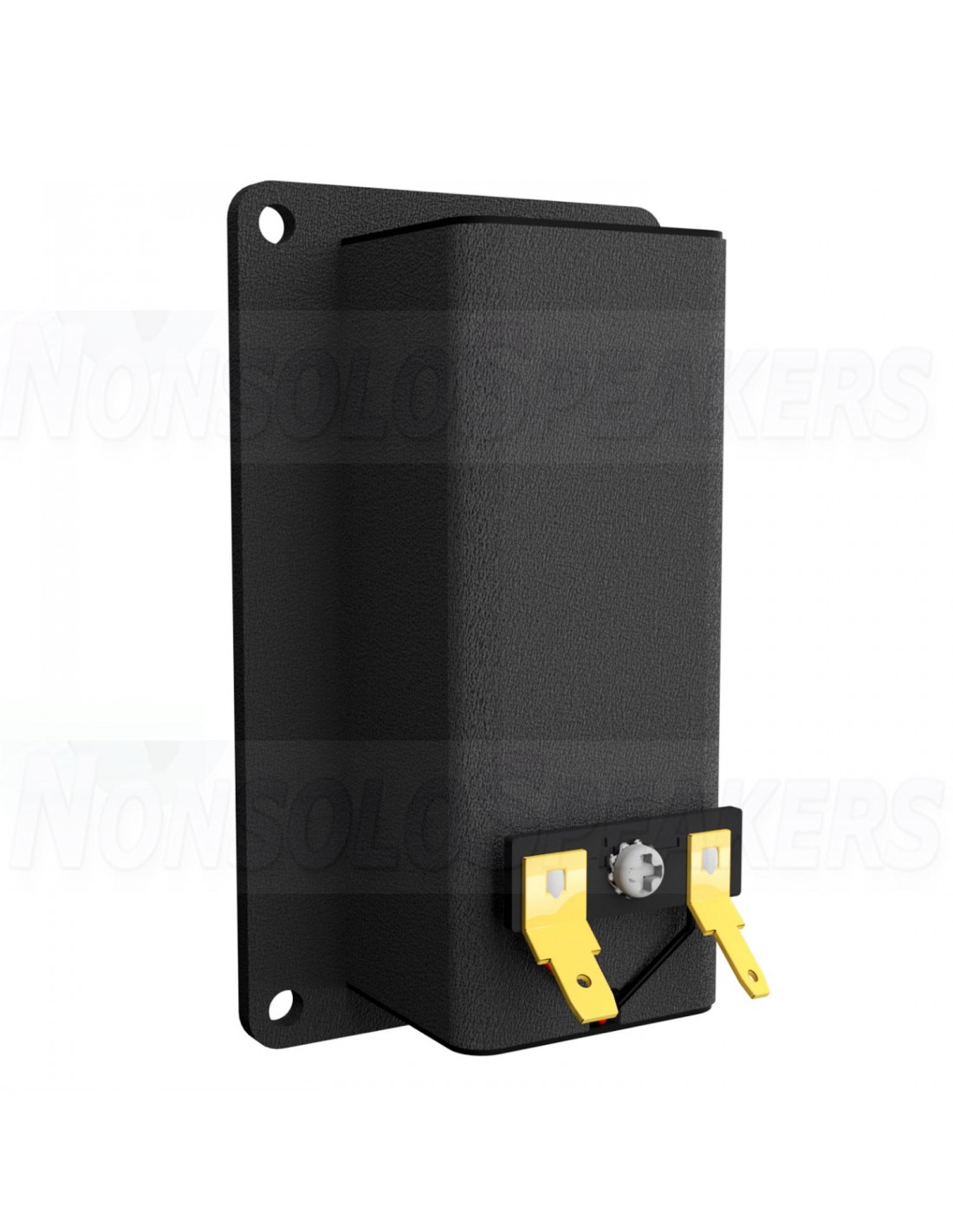

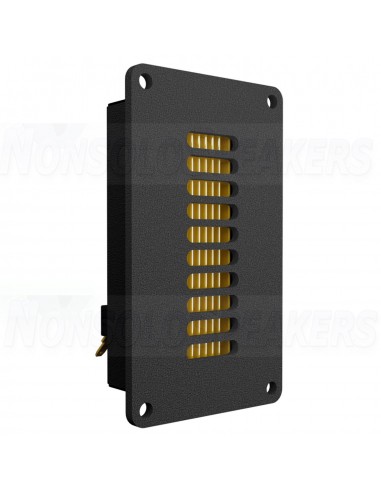

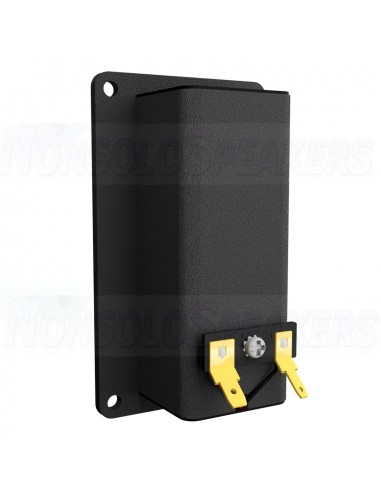

Mundorf AMTU80W1.1 Air Motion Transformer

1 piece

Tweeter 4 Ohms · 55x95mm · Neodymium

AMT U60W1.1 and AMT U80W1.1 could be described as the small and the large all-rounder of this product range. Both can be used in small or medium 2-way and 3-way systems. AMT U80W1.1 offers additional dynamic range. Both convince with the decisive quality features of the AMT U.Series with Mundorf diaphragm: Exceptionally low K3 / K5 distortion data, a truly powerful music performance within the entire application range and, at the same time, the fine micro-dynamics and richness of music details that distinguish all Mundorf AMT’s.

• power handling (continuous/programme) = 15/90 W
• frequency range = 1800-31000 Hz
• resonance frequency fs = 2150 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 94 dB (2,83V; 1m)
• DC resistance Re = 4,4 Ohm
• effective piston radiating area Sd = 31,4 cm²
• overall diameter d = 95x55 mm
