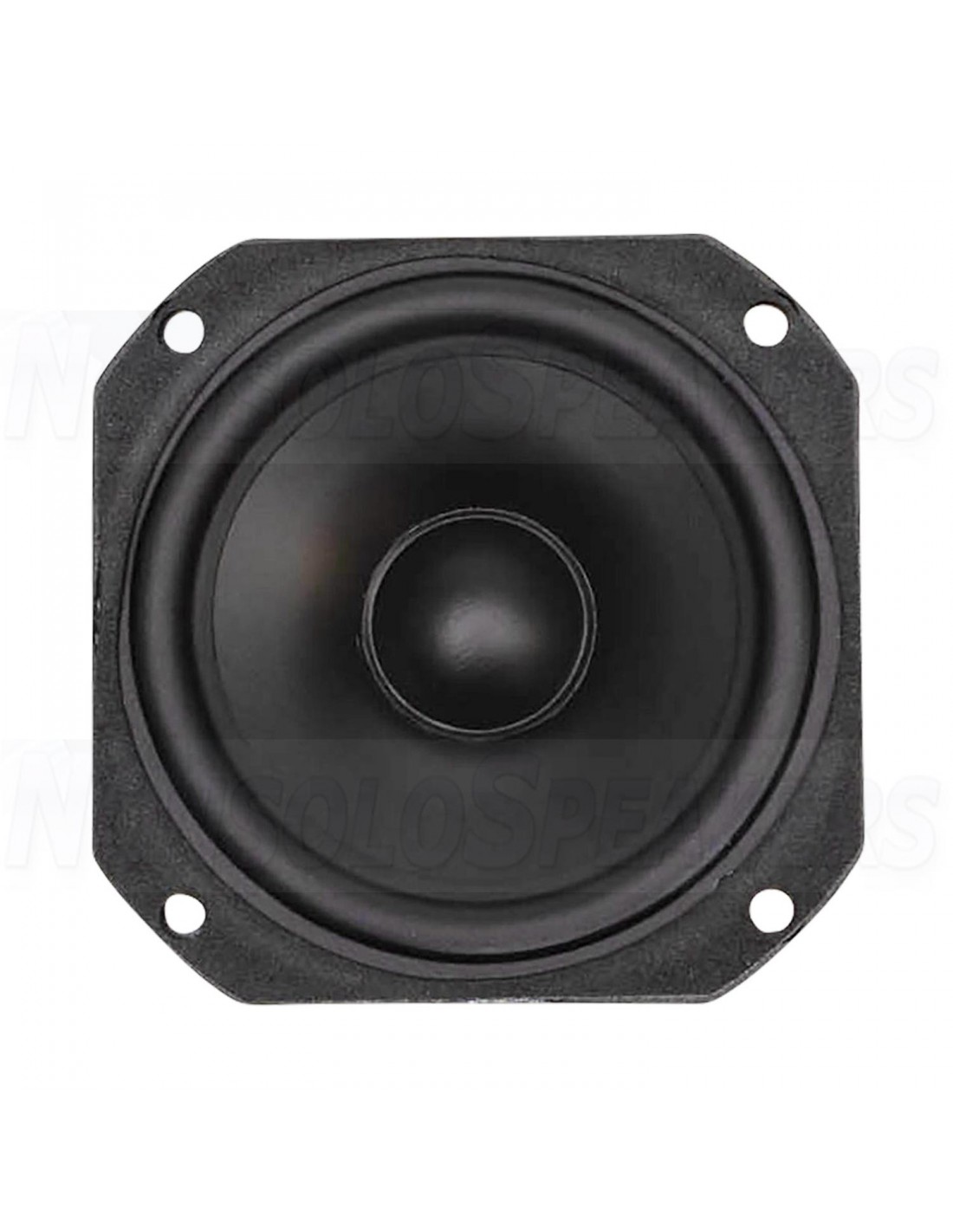

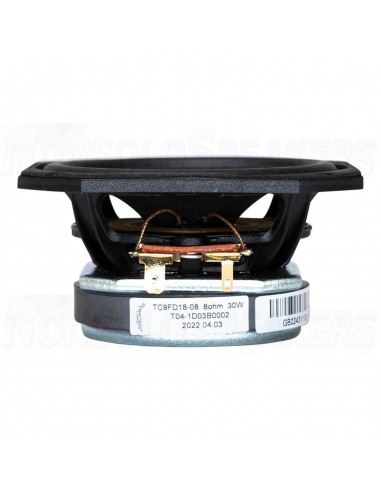

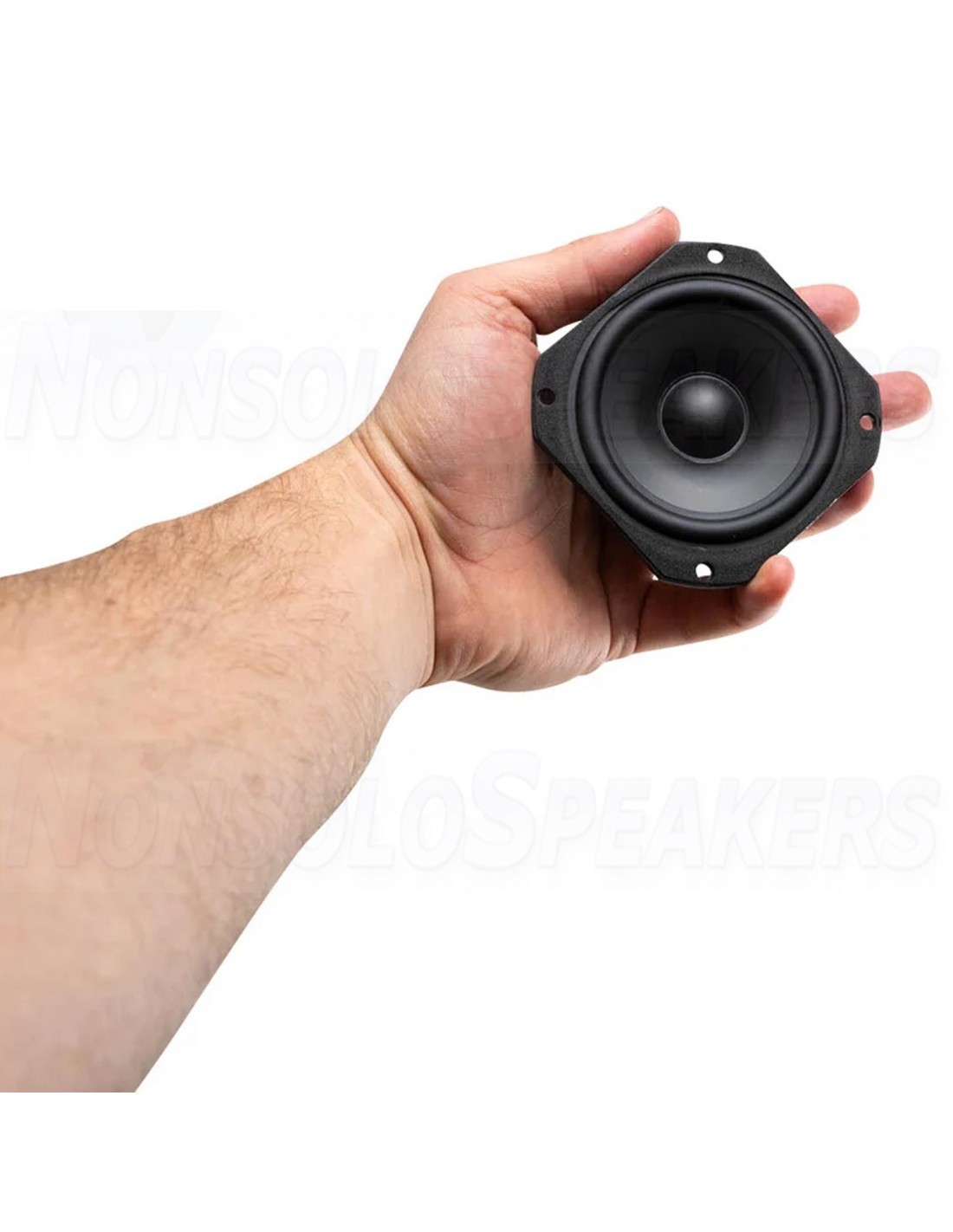

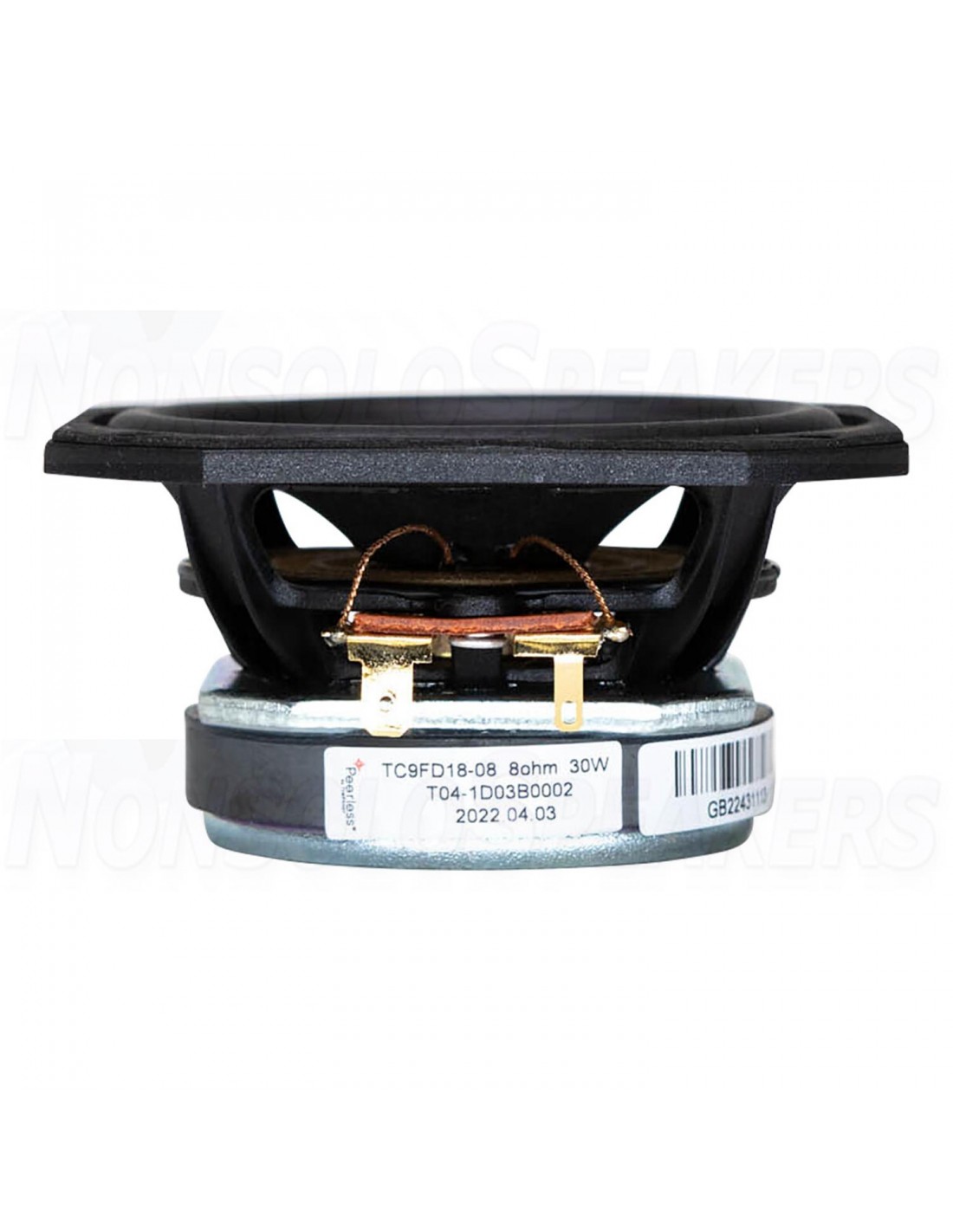

Peerless by Tymphany TC9FD18-08 3-1/2" Full Range Paper Cone Woofer

Product description

The TC/TG Series from Tymphany (formerly Vifa) offers a high performance full range and mid-bass solution for TV products and other compact applications.

.

Highlights

Light weight, non-resonant polymer chassis

Patented NRSC paper cone

Copper pole piece cap controls impedance

Frequency response extends past 15 kHz

.

Product details

Peerless by Tymphany TC9FD18-08 3-1/2" Full Range Paper Cone Woofer

The TC/TG Series offers a high performance full range and mid-bass solution for TV products and other compact applications. The use of leading-edge technologies like a polymer chassis, NRSC (Tymphany patent) paper cone, and a copper pole piece cap, have made this full range driver appear on many industry insider lists as the best sounding solution in this market.

.

Specifications

Article number TC9FD18-08

Woofer Series TC Series

Woofer Type Full-range

Nominal Diameter 3-1/2"

Power Handling (RMS) 30 Watts

Power Handling (max) 60 Watts

Impedance (Z) 8 Ohms

Sensitivity (SPL at 1m / 2.83V) 83.5 dB

Frequency Response 100 to 20,000Hz

Voice Coil Diameter 0.75"

DC Resistance (Re) 6.3 ohms

Voice Coil Inductance (Le) 0.05 mH

Resonant Frequency (Fs) 125 Hz

Mechanical Q (Qms) 2.7

Electromagnetic Q (Qes) 1.33

Total Q (Qts) 0.89

Diaphragm Mass Inc. Airload (Mms) 2.43g

Mechanical Compliance of Suspension (Cms) 0.67 mm/N

Surface Area of Cone (Sd) 36.3 cm²

BL Product (BL) 3.01 Tm

Compliance Equivalent Volume (Vas) 0.04 ft.³

Maximum Linear Excursion (Xmax) 2.55 mm

Cone / Diaphragm Material Paper

Surround Material Rubber

Basket / Frame Material Polymer

Magnet Material Ferrite

Overall Outside Diameter Diagonal: 3.62", Across flats: 3.3"

Overall Depth 1.69"

Baffle Cutout Diameter 3"

Bolt Circle Diameter 3.5"

# Mounting Holes 4

Sealed Volume 0.1 ft.³

Sealed F3 122 Hz

Vented Volume 0.2 ft.³

Vented F3 72 Hz
