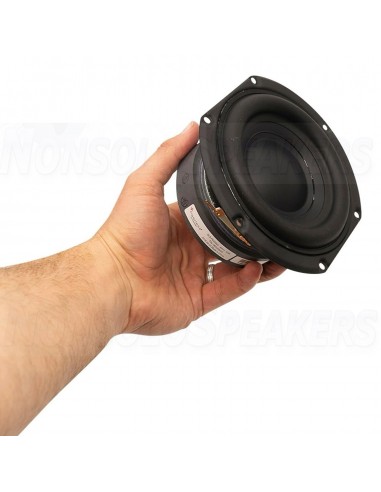

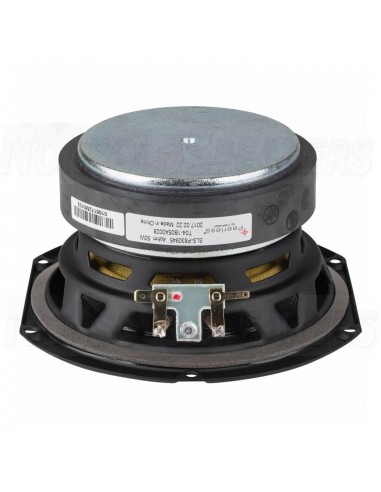

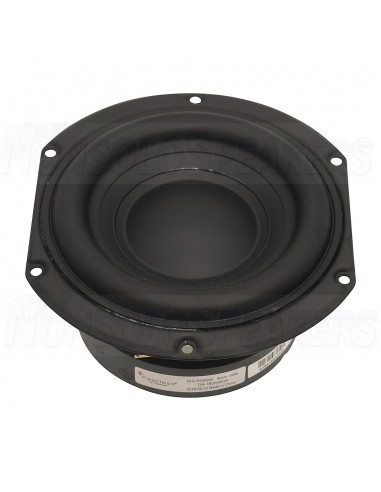

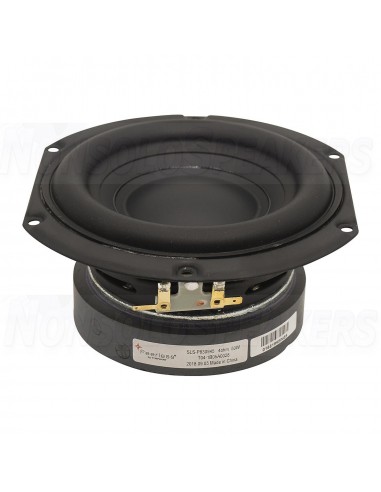

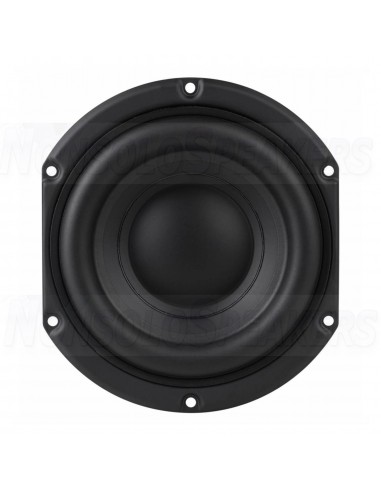

Peerless by Tymphany SLS-P830945 Subwoofer

Product description

With a large roll surround, high excursion, and low Fs for its size, the Peerless SLS-P380945 5-1/4" subwoofer is ideal for use in extremely compact subwoofer designs, portable 2.1 systems, or even as a woofer in small 3-way systems.

.

Highlights

High excursion capability makes this perfect for compact subwoofer designs

Aluminum shorting ring lowers distortion and keeps inductance under control

Rigid steel basket with adequate venting above and below the spider

Higher efficiency that most subwoofer drivers this small

.

Product details

Peerless by Tymphany SLS-P830945 5-1/4" Paper Cone Woofer

The SLS line combines high quality performance with an affordable design. This 5.25 inch 4 ohm member of the SLS family features a rigid steel basket, a paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.

.

Specifications

Article number SLS-P830945

Woofer Type Woofer

Nominal Diameter 5-1/2"

Power Handling (RMS) 50 Watts

Power Handling (max) 100 Watts

Impedance (Z) 4 ohms

Sensitivity (SPL at 1m / 2.83V) 88.36 dB

Frequency Response 40 to 1,500Hz

Voice Coil Diameter 1.3"

DC Resistance (Re) 2.71 ohms

Voice Coil Inductance (Le) 0.20 mH

Resonant Frequency (Fs) 51.4 Hz

Mechanical Q (Qms) 3.95

Electromagnetic Q (Qes) 0.40

Total Q (Qts) 0.36

Diaphragm Mass Inc. Airload (Mms) 15.9g

Mechanical Compliance of Suspension (Cms) 0.601 mm/N

Surface Area of Cone (Sd) 83.3 cm²

BL Product (BL) 5.9 Tm

Compliance Equivalent Volume (Vas)0.21 ft.³

Maximum Linear Excursion (Xmax) 5 mm

Cone / Diaphragm Material Paper

Surround Material Foam

Basket / Frame Material Aluminum

Magnet Material Ferrite

Overall Outside Diameter 5.6"

Overall Depth 2.64"

Baffle Cutout Diameter 4.72"

# Mounting Holes 6

Sealed Volume 0.04 ft.³

Sealed F3120 Hz

Vented Volume 0.11 ft.³

Vented F3 68.29 Hz
