FiiO BTA30PRO Bluetooth 5.0 transceiver with ES9038Q2M DAC - 32bit 384kHz

The FiiO BTA30 Pro in summary: Even though the BTA30 Pro looks only slightly different from the BTA30, from a technical point of view it is a consistent further development of the BTA30 with convincing improvements in performance and usability.

Improved USB DAC – Resolutions up to 384 kHz/32bit instead of 48kHz/16 on the BTA30 Improved DSD decoding – Supports not only DoP 64, but DoP 64/128/256 Now also transmits in LDAC – Supports LDAC in TX mode (USB in) Speakers and Bluetooth headphones at the same time – Can control line out and Bluetooth receiver in parallel in TX or DAC mode Simply at the touch of a button – Change the input signal simply by pressing a button Improved pairing – Separate button for each headphone Low latency at the touch of a button – Switch between HD and LL (Low Latency) at the touch of a button.

Highlights:

• Premium ES9038Q2M ESS Sabre DAC Chip.
• Bluetooth 5.0
• High-performance DSP.
• Qualcomm CSR8675 Bluetooth Chip.
• Transmit & Receive Hi-Res Signal With LDAC Support.
• Premium XMOS USB Receiver.
• USB supports 32-Bit/384kHz PCM and Native DSD256.
• RGB Indicator Light.
• APP Remote Control.

Advanced High-Resolution Bluetooth Transmission

FiiO has featured Qualcomm's highly-trusted CSR8675 Bluetooth processor chip on the BTA30 Pro. BTA30 Pro provides a seamless wireless Bluetooth transmission with high-resolution LDAC codec support in both transmission and receiving stages. The devices truly untangle us from the burden of wires by making us go wireless in the input signal department.

.

Top-Of-The-Line Performance With A TOTL DAC Chip

FiiO BTA30 Pro utilizes the power of a trusted ES9038Q2M DAC chip from Sabre technologies. It is a 32-bit DAC chip that provides high-resolution audio signal decoding with utmost precision and quality. With the BTA30 Pro and this premium Sabre DAC chip, you get to experience high-resolution audio signal decoding. This DAC is supported by XMOS's latest XU208 USB receiver providing support for 32-bit/384kHz and native DSD512 decoding support over the USB connection.

Not Just Bluetooth But Several Other Input Options

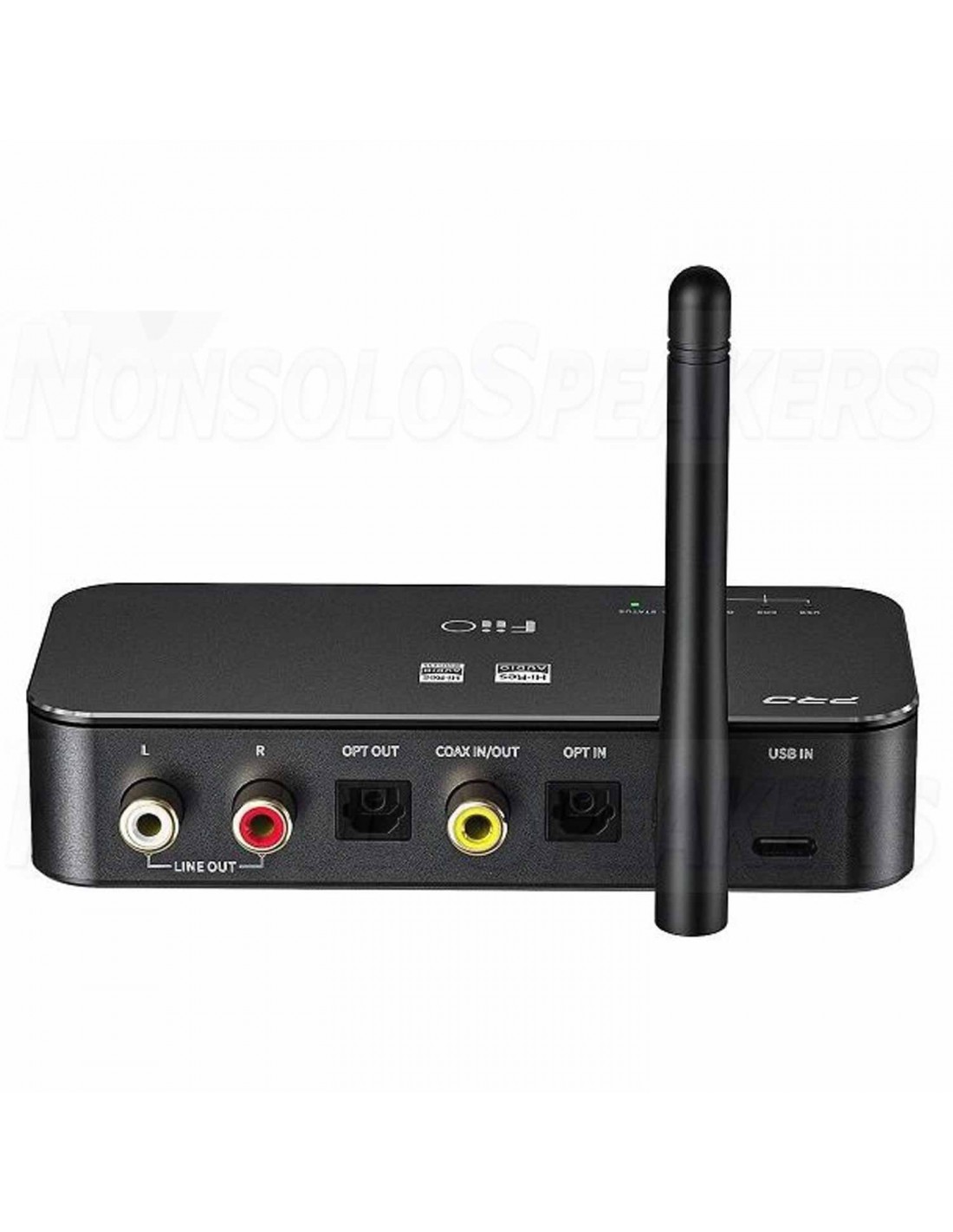

BTA30 Pro can serve as a high-fidelity desktop DAC if you require it to be. It supports not only Bluetooth and USB as input ports but also has SPDIF Coaxial and Optical digital inputs

Bypass Function & One-Button Switch Between Different Input Sources

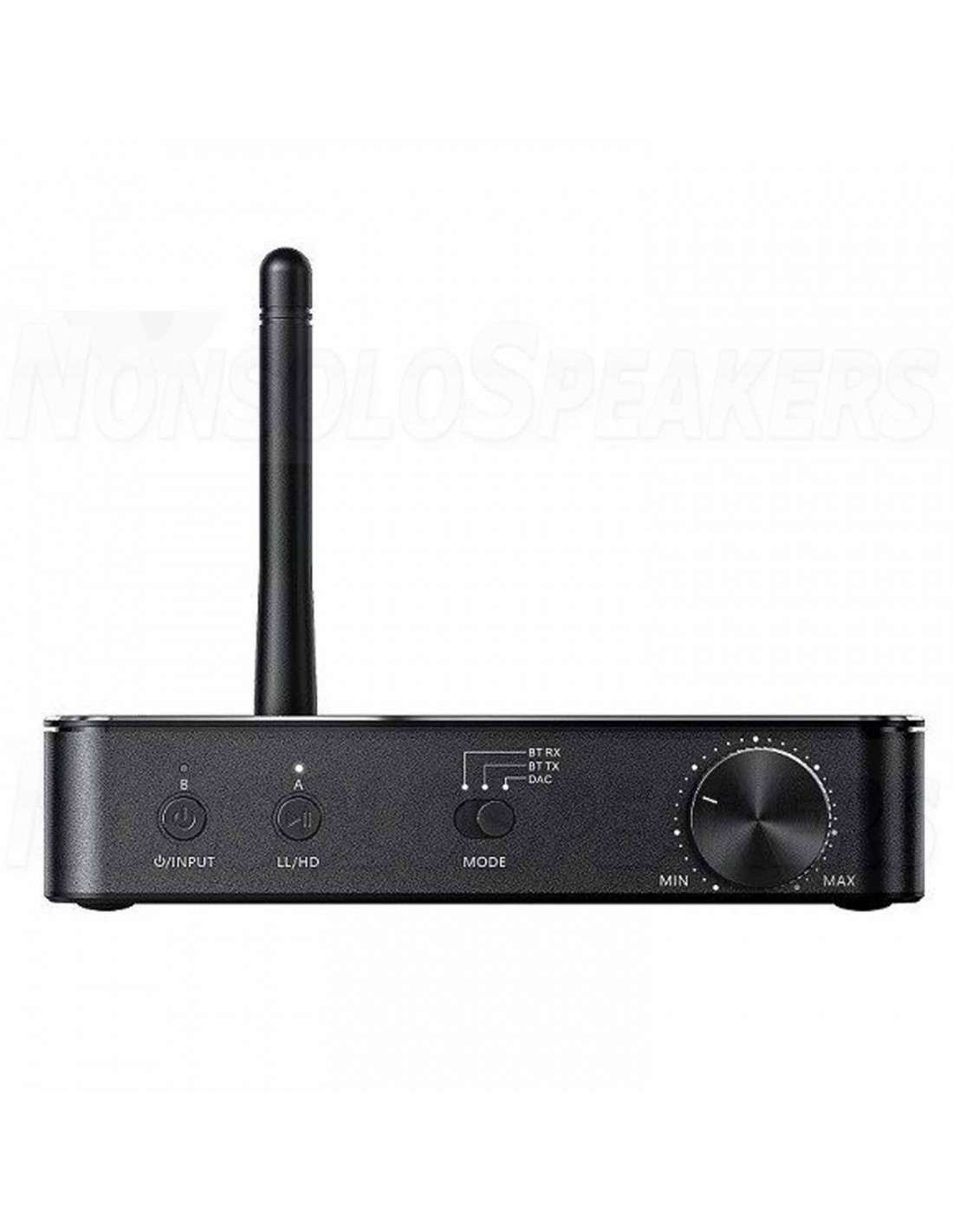

FiiO BTA30 Pro supports signal bypass function. It allows the users to access both the input and output functions at the same time. One can easily switch the active input mode by just simply clicking on the Input button.

.

Technical data

• Max output amplitude: 3vrms(10kΩ).
• Noise-Floor: ≤3.8uV(A-weighted).
• SNR: ≥118dB.
• THD+N: 0.0008%(USB DAC, 1kHz).
• SINAD: 102dB(USB IN).
• Dynamic Range: 112dB.
