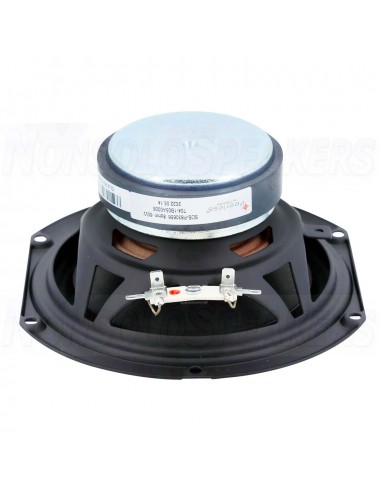

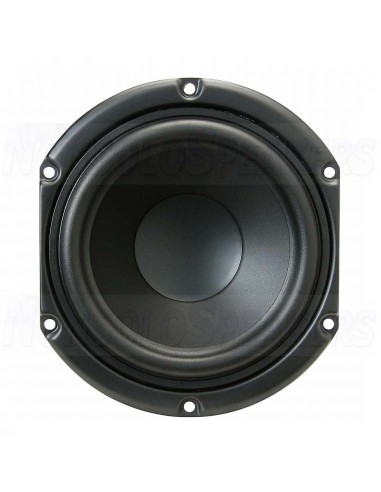

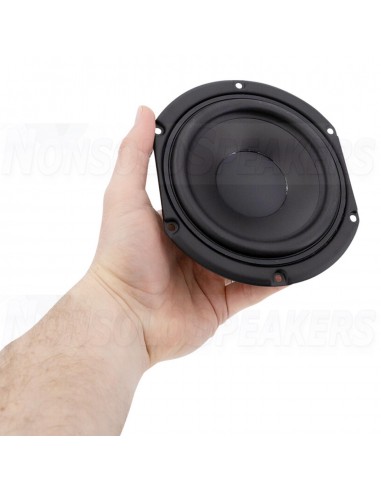

Peerless by Tymphany SDS-P830656 5-1/4" Paper Cone SDS Woofer

.

Product description

The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.

.

Highlights

Premium sculpted stamped steel chassis

Coated paper cone with rubber edge

Smooth, extended response

.

Product details

Peerless by Tymphany SDS-P830656 5-1/4" Paper Cone SDS Woofer

The SDS compact subwoofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 5.25 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket, shaped to fit into narrow cabinets.

.

Specifications

Article number SDS-P830656

Woofer Series SDS Series

Woofer Type Midwoofer

Nominal Diameter 5-1/4”

Power Handling (RMS) 60 Watts

Power Handling (max) 110 Watts

Impedance (Z) 8 Ohms

Sensitivity (SPL at 1m / 2.83V) 84.5 dB

Frequency Response 50 to 5,000Hz

Voice Coil Diameter 1"

DC Resistance (Re) 6.1 ohms

Voice Coil Inductance (Le) 0.37 mH

Resonant Frequency (Fs) 57 Hz

Mechanical Q (Qms) 3.6

Electromagnetic Q (Qes) 0.7

Total Q (Qts) 0.59

Diaphragm Mass Inc. Airload (Mms) 9.3g

Mechanical Compliance of Suspension (Cms) 0.83 mm/N

Surface Area of Cone (Sd) 86.6 cm²

BL Product (BL) 5.36 Tm

Compliance Equivalent Volume (Vas) 0.31 ft.³

Maximum Linear Excursion (Xmax) 3.46 mm

Cone / Diaphragm Material Coated Paper

Surround Material Rubber

Basket / Frame Material Steel

Magnet Material Ferrite

Overall Outside Diameter 5.98"

Overall Depth 2.23"

Baffle Cutout Diameter 4.61"

# Mounting Holes 6

Sealed Volume 0.2 ft.³

Sealed F3 99 Hz

Vented Volume 0.58 ft.³

Vented F3 48 Hz
