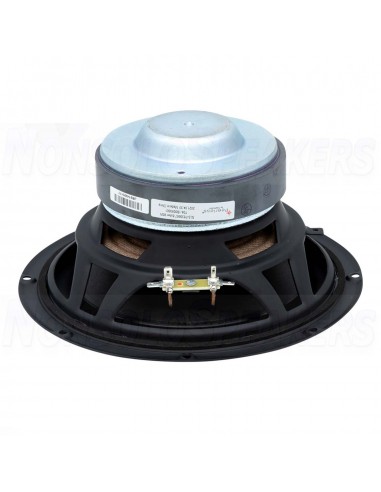

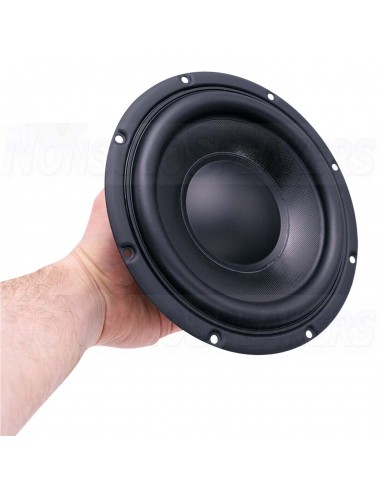

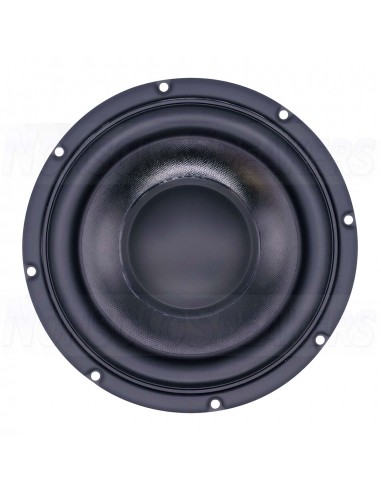

Peerless by Tymphany SLS-P830667 Subwoofer

.

Product description

The Peerless SLS Series combines high quality performance with an affordable design.

.

Highlights

Premium sculpted stamped steel chassis

Coated paper cone with rubber edge

Shorting ring in magnet system

.

Product details

Peerless by Tymphany SLS-P830667 8" Paper Cone SLS Subwoofer

.

The SLS line combines high quality performance with an affordable design. This 8 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance

.

Specifications

Article number SLS-P830667

Woofer Type Subwoofer

Nominal Diameter 8"

Power Handling (RMS) 110 Watts

Power Handling (max) 220 Watts

Impedance (Z) 8 ohms

Sensitivity (SPL at 1m / 2.83V) 87.2 dB

Frequency Response 36.5 to 2,000Hz

Voice Coil Diameter 1.5"

DC Resistance (Re) 5.5 ohms

Voice Coil Inductance (Le) 0.78 mH

Resonant Frequency (Fs) 42 Hz

Mechanical Q (Qms) 5.7

Electromagnetic Q (Qes) 0.75

Total Q (Qts) 0.66

Diaphragm Mass Inc. Airload (Mms) 34.8g

Mechanical Compliance of Suspension (Cms) 0.41 mm/N

Surface Area of Cone (Sd) 213.8 cm²

BL Product (BL) 8.26 Tm

Compliance Equivalent Volume (Vas) 0.93ft.³

Maximum Linear Excursion (Xmax) 8.41 mm

Cone / Diaphragm Material Coated Paper

Surround Material Rubber

Basket / Frame Material Steel

Magnet Material Ferrite

Overall Outside Diameter 8.44"

Overall Depth 2.09"

Baffle Cutout Diameter 6.79"

# Mounting Holes 8

Sealed Volume 0.72 ft.³

Sealed F3 58 Hz

Vented Volume 2.09 ft.³

Vented F3 28 Hz
