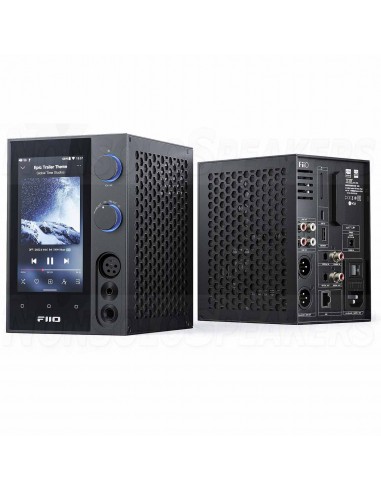

FiiO R7 Desktop Hi-Res Transmitter, Decoder & Amplifier

Full range of inputs and outputs | Four output modes | DC/AC dual power supply | Eight operating modes | ES9068AS+THX AAA 788+*2 | Five gain levels | 3.6W output power | Portrait media streaming | Snapdragon 660+Android 10 | Customizable RGB lights | Ethernet port | Personalized screensaver | Exclusive DP mode | Dual USB ports

• Highlights:

• Full range of inputs and outputs
• Four output modes
• Eight operating modes including Roon Ready
• Dual DC/AC power supply
• ES9068AS+THX AAA 788+*2 design
• Five gain levels
• 3W output power
• Portrait Media Streaming Design
• Snapdragon 660+Android 10
• Customizable RGB lighting
• Ethernet port
• Personalized screen saver
• Exclusive DP mode
• Two USB ports

The key to a brand new world of Hi-Fi desktop experience

The FiiO R7 combines transmitter/decoder/amplifier/preamplifier and media playback functions in one device. Along with numerous connections and expansion options and a variety of operating modes. The R7 offers you an attractive looking, easy to use and great sounding desktop Hi-Fi experience.

.

Comprehensive selection of inputs and outputs

The FiiO R7 offers connectivity options that go far beyond what you would expect, allowing you to quickly and easily build a desktop hi-fi system with the R7 at its heart.

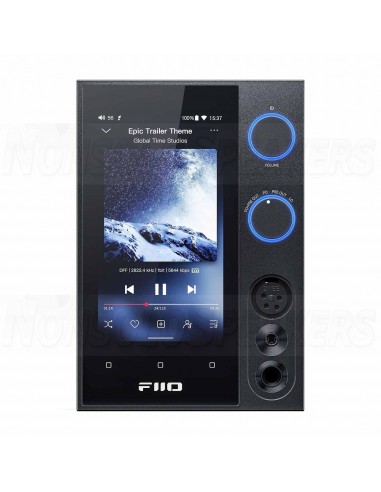

Front: 6.35mm headphone output 4.4mm balanced headphone output 4-pin balanced XLR headphone output

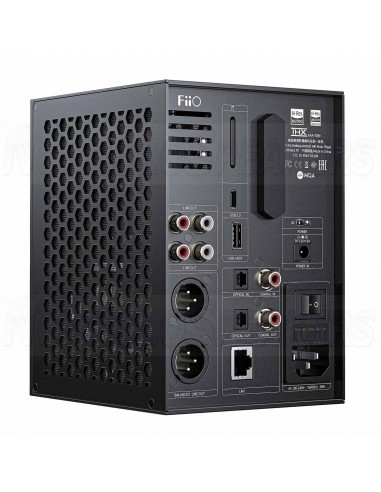

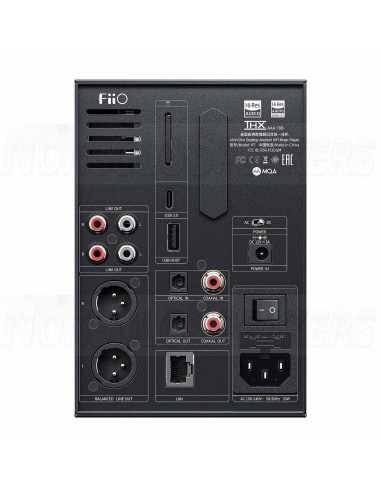

Rear: RCA line output*2 3-pin balanced XLR line output Coaxial output Coaxial input Optical output Optical input Ethernet: for wired connection to a network USB HOST interface: supports external USB devices such as external decoders/hard drives/keyboards/expansion hubs Type-C port (USB 3.0): supports data transfer, DP output mode, USB DAC and USB HOST related functions Micro SD card slots: Stored in a Micro SD card holder, supports up to 2TB Micro SD cards AC/DC power switch for operating different power modes: DC power input for external DC power adapter, with 12V-3A (FiiO PL50 is sold separately) Built-in AC power adapter AC power switch on/off WiFi/Bluetooth antenna

Many outputs with just the turn of a knob

.

Multiple Modes - For even more extraordinary experiences

Android Mode: Enjoy third-party apps such as the main streaming services Pure Music Mode: Exclusive FiiO Pure Music mode, for an even more immersive music experience USB DAC Mode: Enhance the sound of computers/phones by connecting them as decoders Bluetooth Receiver Mode: Supports LDAC/SBC/AAC, making it easy to hear excellent sound AirPlay Receiver Mode: Connect iPhone/iPad and other iOS devices wirelessly, greatly improving sound quality Roon Ready Mode: Roon Ready certified, giving you an ergonomic player in seconds Coaxial/Optical Decoding Mode: The ability to receive optical/coaxial signals turns the FiiO R7 into a powerful decoder

.

Convenient, intuitive and almost endless options

The FiiO R7 is unique because it is easy to use and offers an amazing number of ways to listen. When listening to music streaming apps, you can easily switch between headphones and speakers or any other output mode. Conveniently listen to songs stored locally on the R7 - thanks to the built-in storage and Micro SD card support - or receive Bluetooth audio from your phone - with support for high-resolution Bluetooth audio formats. The R7 really lets you listen the way you want.

The R7 supports Micro SD cards up to 2TB and comes with a Micro SD card holder.

R7 features Bluetooth 5.0; supports SBC/AAC/LDAC reception; supports SBC/AAC/aptX/aptX HD/LDAC/LHDC transmission.

.

Possible Setups

R7 + Headphones Connect the R7 to the FT3 or other headphones via the balanced XLR and 4.4mm outputs or the unbalanced 6.3mm output for high-fidelity music playback. R7 + Active Speakers Connect the R7 to the FiiO SP3 or other speakers via the XLR, RCA single-ended, USB, coaxial or optical ports and enjoy truly immersive three-dimensional sound in a large soundstage. R7 + Headphones+Active Speakers The R7 can serve as a convenient hub for connecting speakers and headphones.

Turn the knob to conveniently switch between hearing aids by changing the output mode. PO - Headphones; PRE OUT - Speakers; PO+PRE OUT - Headphones + Speakers

.

A complete Hi-Fi desktop setup

With the help of the KB1 keyboard and the PL50 linear power supply, you can unlock the full potential of the R7 and experience a complete FiiO Hi-Fi desktop system at the highest level.

.

Time to be your own DJ

The R7 can act as a control center for accessing your music when connected to a NAS and playing music via DLNA. The R7 is Roon Ready certified, allowing you to access music from a ROON CORE source such as a NAS or a computer. And if that's not enough, the R7 itself can act as a network music server as it is compatible with DLNA transfer protocols. Music on the R7's internal storage, micro SD cards, and even tracks on a connected external portable drive can be accessed on another device via DLNA.

.

FiiO HiFi Desktop Experience Version 1.0

Whether you are a beginner or an experienced audiophile, you can easily build a desktop HiFi setup with the R7. You can also synergistically combine the R7 with other FiiO products to further enhance your listening experience, creating a completely new and refreshing desktop HiFi experience.

.

More power The pursuit of great sound

4th generation FPGA with phase-locked loop clock technology + 2 femtosecond crystal oscillators Enables a high-precision, low-jitter unified clock source for clean and stable sound.

Specially optimized audio circuit design - The R7 uses an ES9068AS DAC coupled with a pair of THX AAA 788+ headphone amplifiers. In addition, there are other high-quality components inside the R7, such as four Panasonic PPS film capacitors. No expense has been spared in using high-quality components to ensure that the R7 faithfully reproduces your audio.

5 Gain Levels, 3W Output

The R7 features five gain levels: low/medium/high/over-ear headphone/amplified over-ear headphone mode. With a 32Ω load in the enhanced over-ear headphone mode, the R7 is capable of outputting up to 3W, more than enough to drive low and high impedance headphones.

.

Electricity is the root of good sound - Dual DC/AC power supply

Inside the R7 is a 30W switching power supply. The AC input circuit is filtered and purified by a large capacity choke and special high voltage capacitors. The DC input circuit is a ±12V high voltage power supply. Both circuits contribute to the robustness of the power system to enhance the dynamic sound of your music. The R7 can also be used with external DC power supplies such as the FiiO PL50 linear power supply or other power supplies to give your sound an even purer, blacker background so that the musical details really come out.

*Only external 12V-3A DC power supplies are supported

.

High-quality components

The twelve 470uF tantalum capacitors help regulate and purify the current in the power supply, thereby reducing the noise of the power supply. In addition, the transformer is fixed to the main power supply board by the specially designed metal cover, which reduces the shaking of the power supply and achieves more stable performance.

.

LDO-rich power supply design

The R7 is continuously supplied with stable, clean power thanks to power stabilization and filtering, which is due in part to the use of ultra-low noise LDOs for voltage regulation at each stage of the audio circuit.

.

Bold design - exploring new form factors

3 years ago we started thinking about how to create a streaming media player that would be ideal for even the smallest of workspaces. For a year we researched numerous form factors, such as a horizontal, foldable or even rotating screen. For each form factor we built a specially optimized and hand-crafted prototype to really fully explore the pros and cons. After numerous field tests and lots of experience we decided on the R7, which has a portrait display in a stylish and compact housing. With the R7 we want to usher in a new era of desktop hi-fi experience.

.

Portrait Screen - New Innovative Highlights

Thanks to the 5.0-inch high-definition display and Android operating system, the R7 lets you enjoy major streaming services and other third-party apps like never before.

.

Every part well thought out

.

Scope of delivery

1 x R7

6.35mm adapter

Power cable

USB data cable

Micro SD card holder

Base /, double-sided adhesive tape for the base

Fuse

Quick start guide

.

Technical Data

• Color: Black/White
• SoC: Snapdragon 660
• DAC: ES9068AS
• Amplifier: THX AAA 788+ *2
• Supported audio formats: 384kHz-32bit PCM, DSD256
• USB ports: Type-C USB3.0, USB-A
• Display: 5.0-inch FHD+ high-definition display
• Output power 1: 3000mW (32Ω/balanced/amplified over-ear headphone mode)
• Output power 2: 630mW (300Ω/balanced/amplified over-ear headphone mode)
• Frequency response: 20Hz~90kHz (-3dB)
• SNR: ≥122dB (A-weighted)
• Noise floor: LO≤1.5μV (A-weighted); PO≤4μV (A-weighted); BAL
• LO≤2.4μV (A-weighted): BAL≤5.5μV (A-weighted)
• Output impedance: ＜1Ω (32Ω load)
• THD+N: ≤0.0004% (1kHz/32kΩ)
• Dimensions: 110*160*134mm
• Weight: 1.3kg
