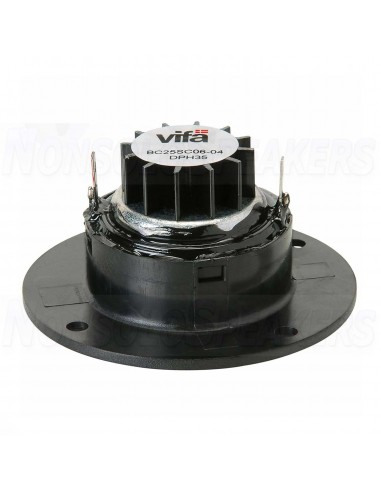

Peerless by Tymphany BC25SC06-04 Dome Tweeter With Waveguide

Product description

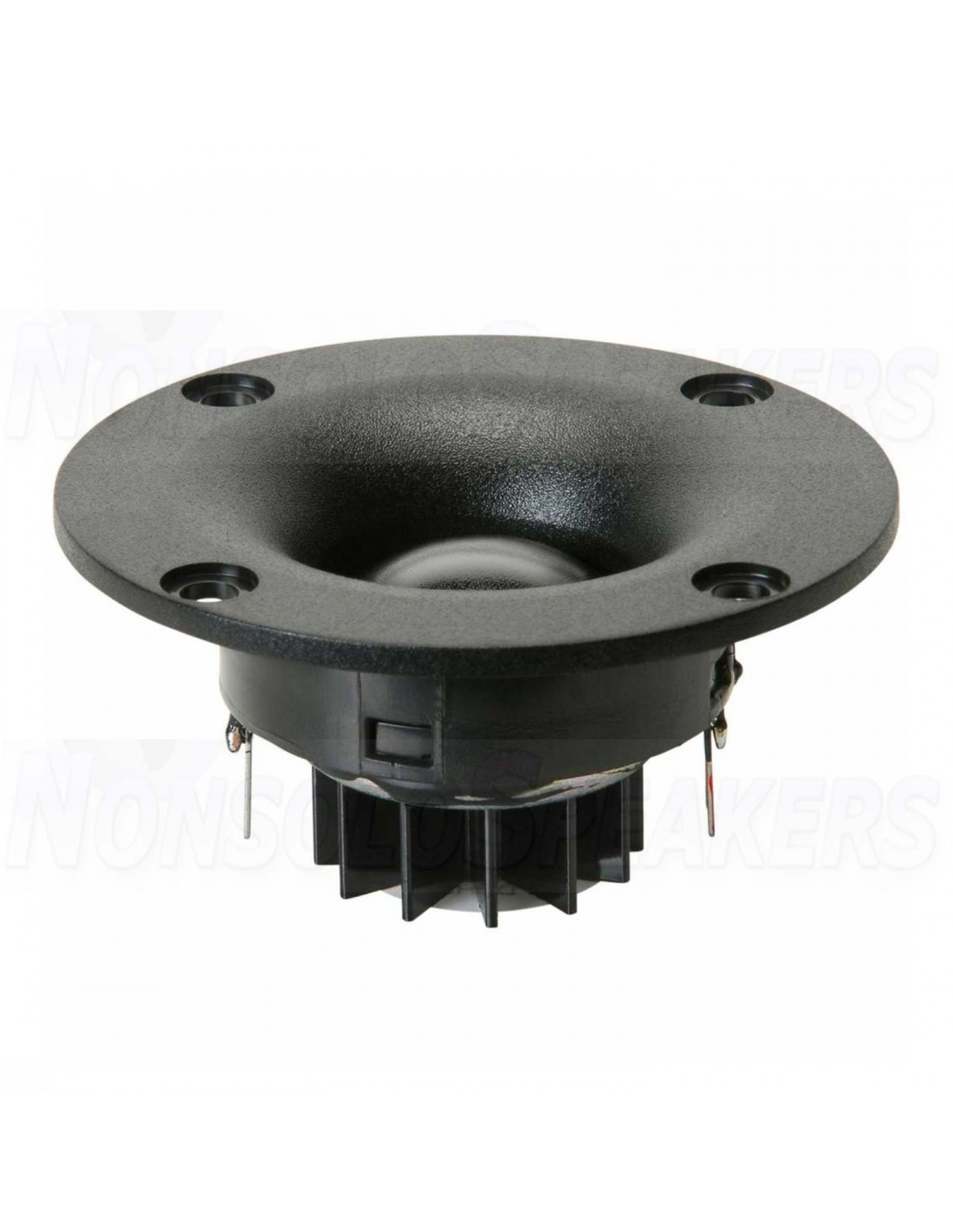

The BC25 SC06-04 from Tymphany is a smooth-sounding compact soft dome tweeter. Extremely efficient for it's size, this tweeter features a neodymium motor, heatsink fins, and round faceplate.

.

Highlights

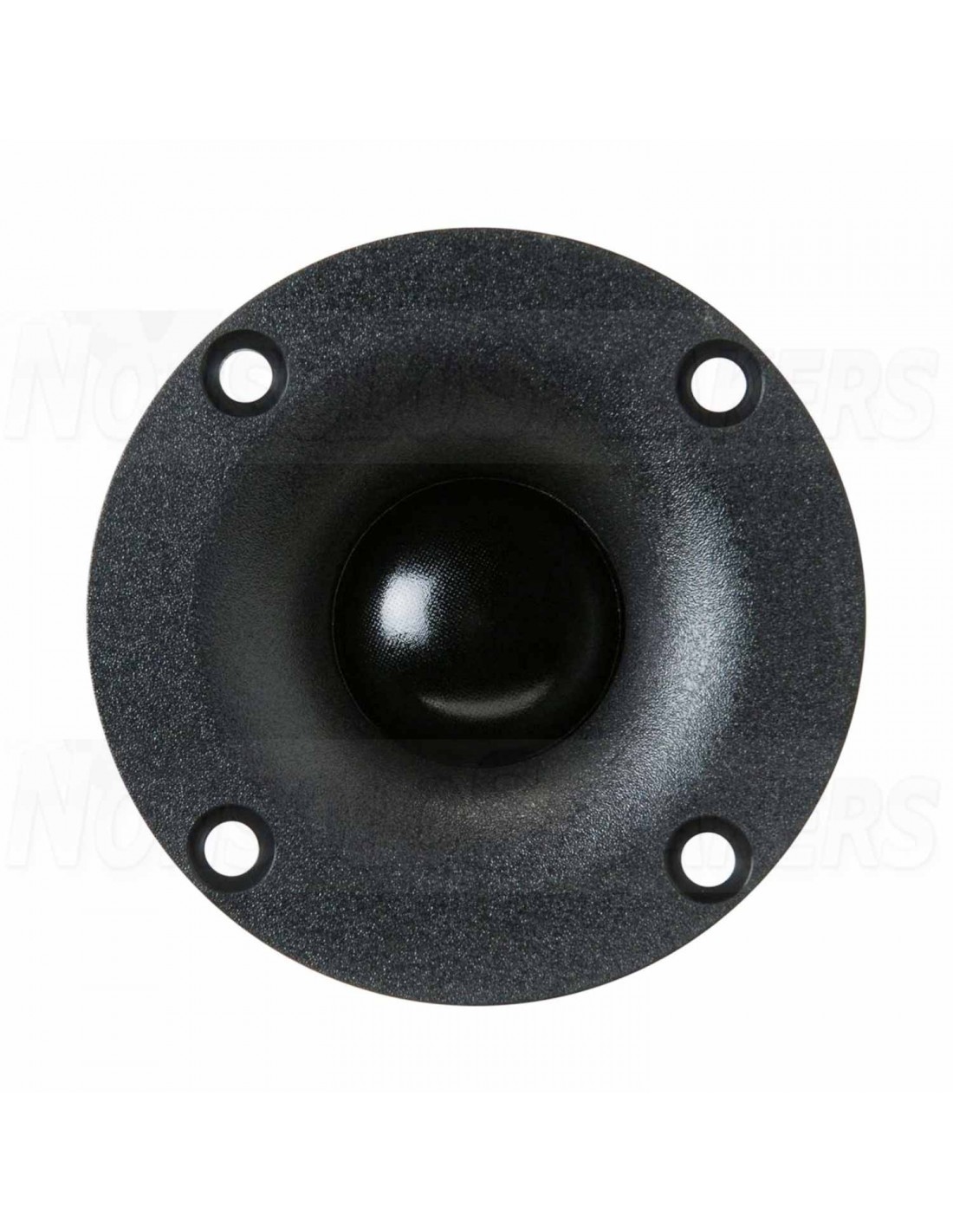

Round polymer faceplate with recessed waveguide loading

1" treated soft dome

Neodymium magnet for high output and compact size

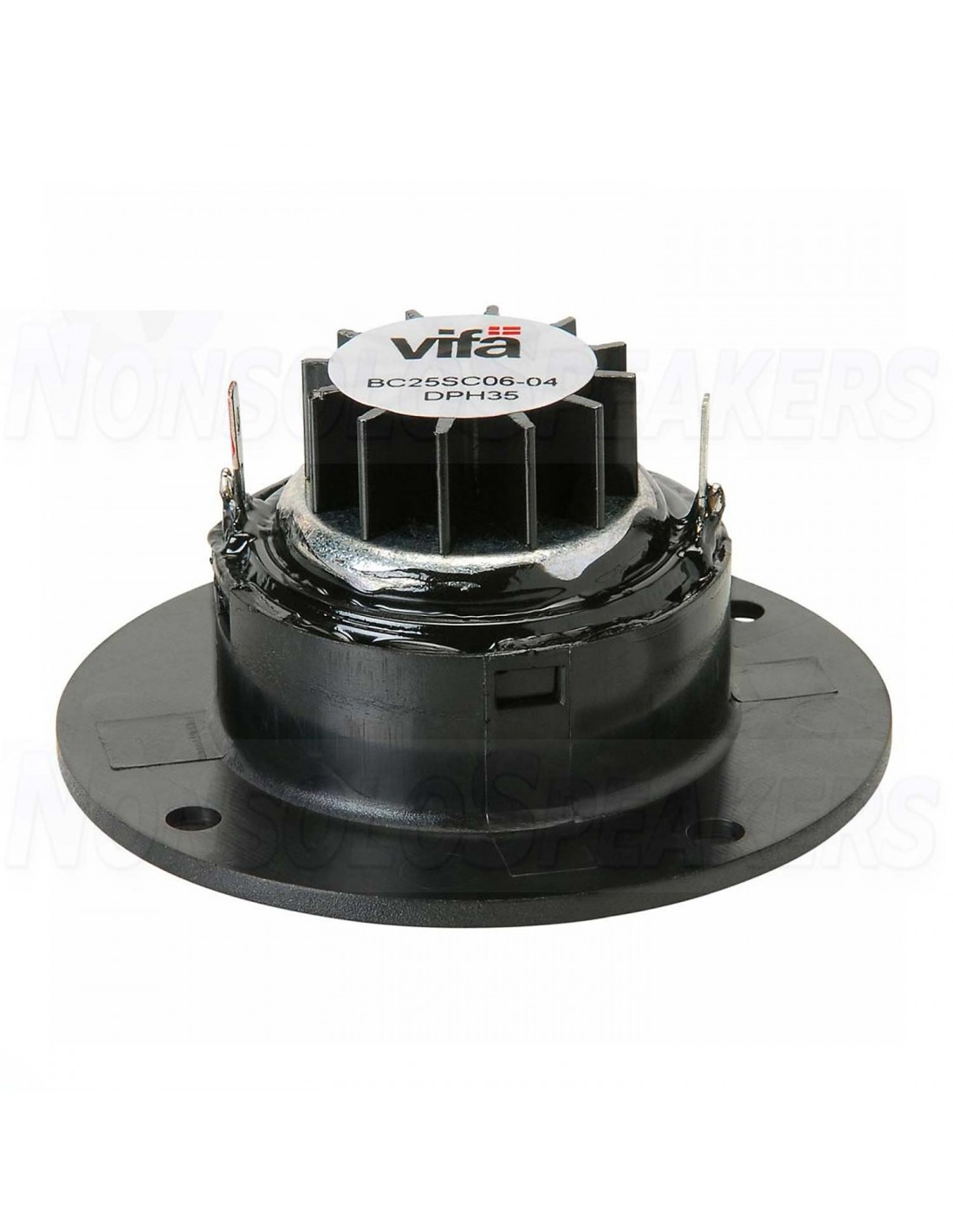

Rear heatsink improves thermal management

Smooth frequency response extends past 20 kHz

.

Product details

Peerless by Tymphany BC25SC06-04 1" Textile Dome Tweeter

The BC family of tweeters features a damped fabric dome for smooth frequency response performance and ferrofluid in the gap of the NdFeB magnet motor,providing enhanced cooling of the voice coil. BC tweeters come with a compact faceplate with recessed mounting holes,and for this driver a finned heat sink has been added to improve power handling.

.

Specifications

Article number BC25SC06-04

Tweeter Type Soft Dome

Tweeter Series BC Series

Cone / Dome Diameter 25 mm | 1"

Power Handling (RMS) 50 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 95.4 dB

Resonant Frequency (Fs) 1350 Hz

DC Resistance (Re) 2.9 ohms

Voice Coil Inductance (Le) 0.02 mH

Mechanical Q (Qms) 2.80

Electromagnetic Q (Qes) 2.30

Total Q (Qts) 1.26

Overall Outside Diameter 2.75”

Cutout Diameter 1.70”

Depth 1.25"
