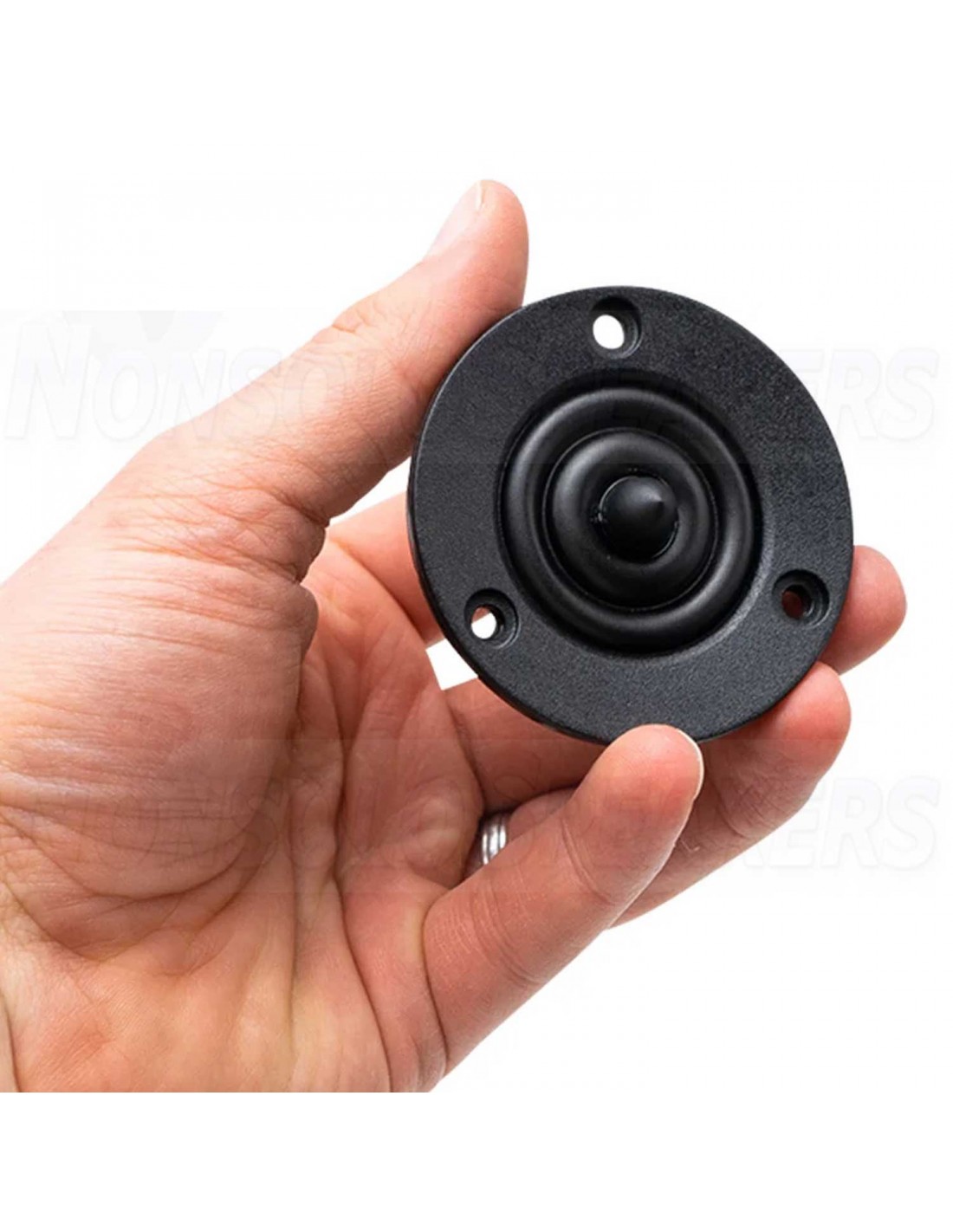

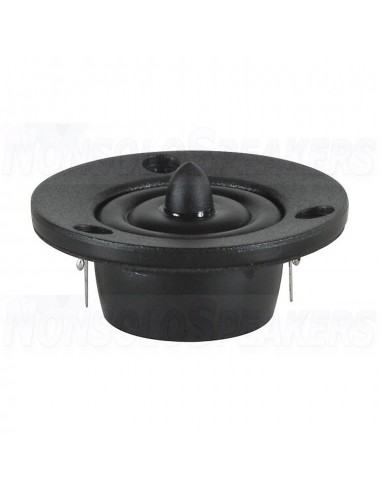

Peerless by Tymphany XT25SC90-04 Ring Radiator Tweeter.

.

Product description

The smaller-sized Tymphany XT25SC90-04 features a patented dual concentric diaphragm and a unique waveguide center plug that provide an excellent on- and off-axis response.

.

Highlights

Patented dual ring radiator diaphragm with waveguide center plug

Neodymium magnet, low distortion motor

Flat response to 40 kHz

.

Product details

Peerless by Tymphany XT25SC90-04 1" Dual Ring Radiator Tweeter

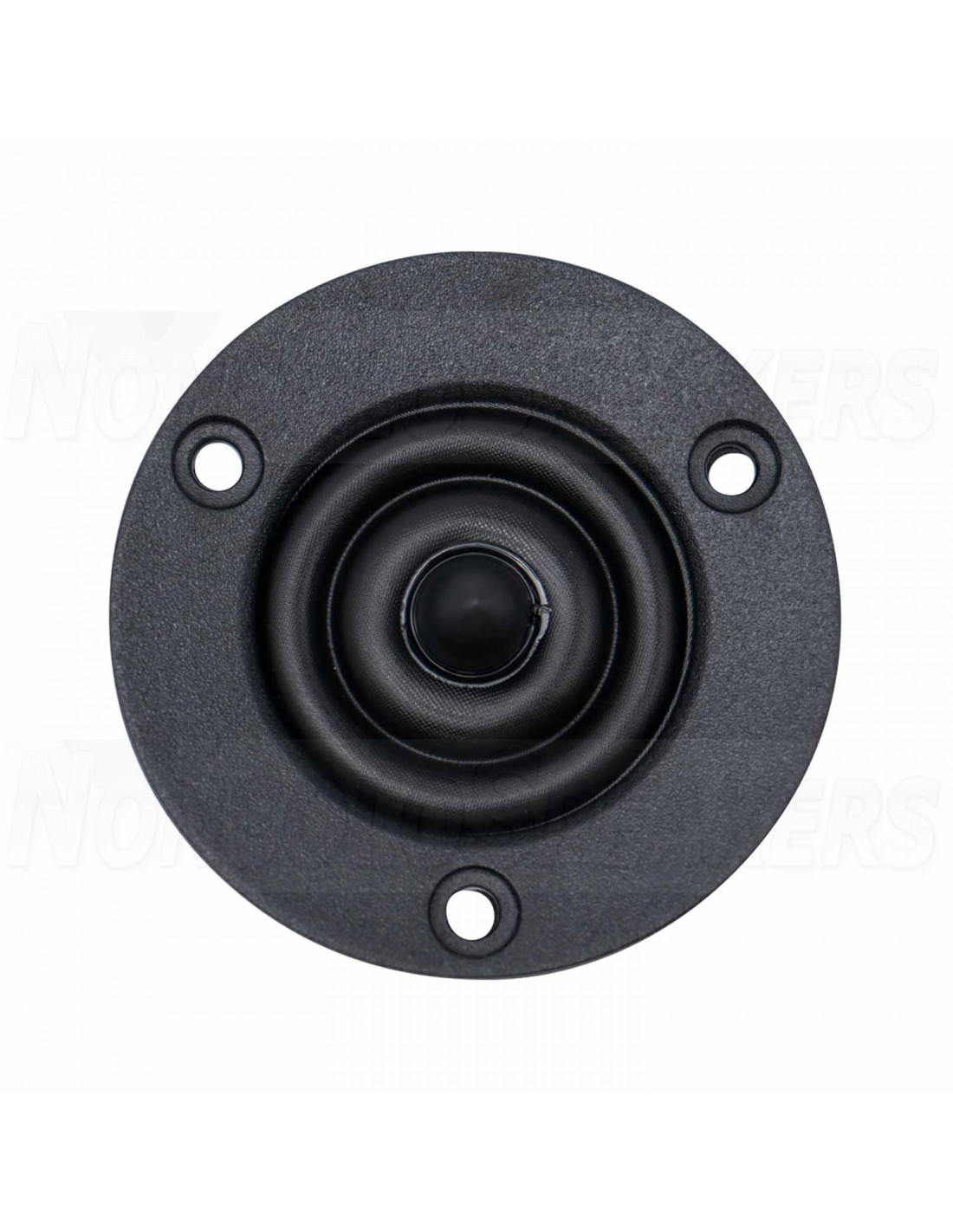

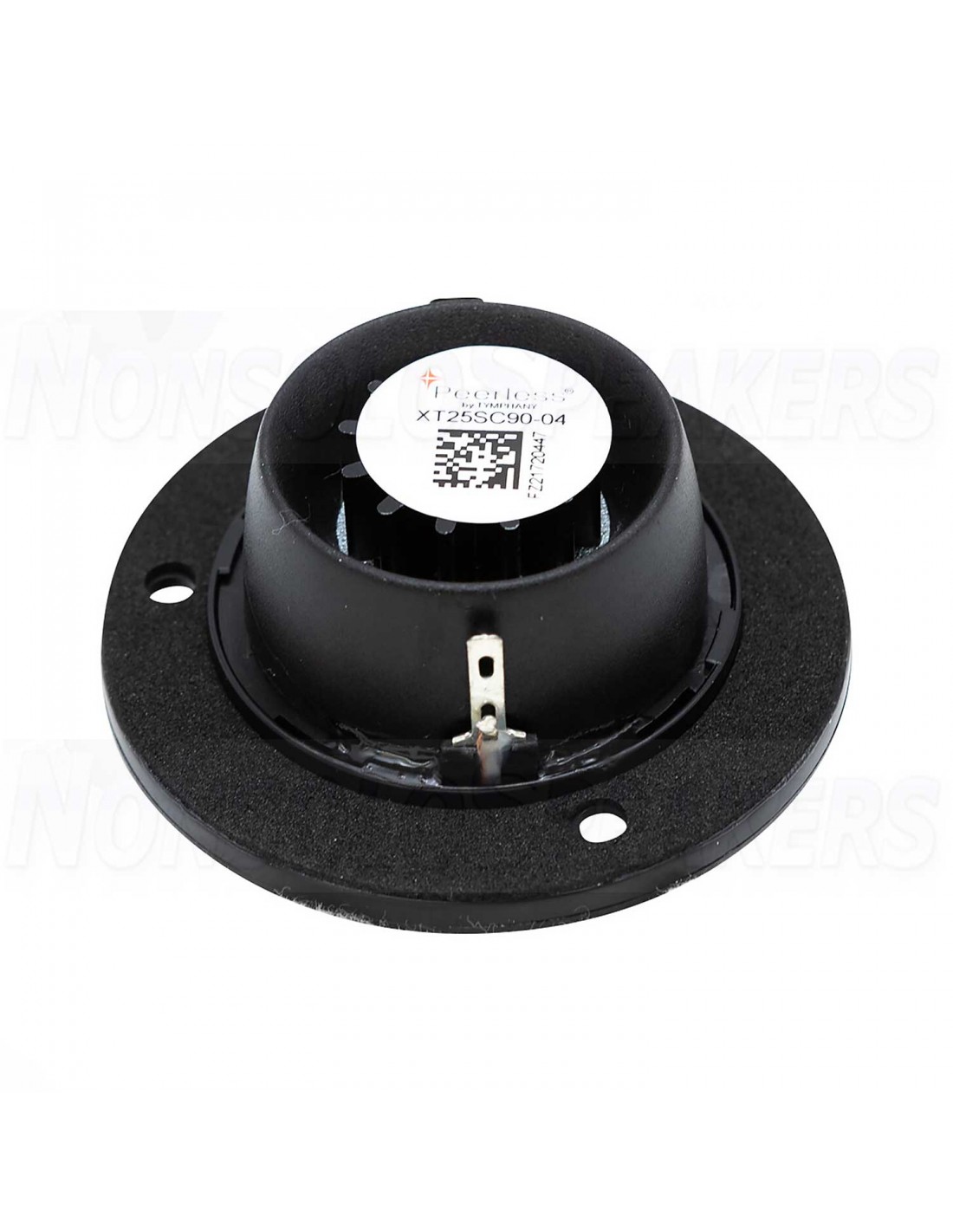

This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25 mm voice coil, mounted in a neodymium magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

.

Specifications

Article number XT25SC90-04

Tweeter Type Ring Radiator

Tweeter Series XT Series

Cone / Dome Diameter 25 mm | 1"

Power Handling (RMS) 100 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 93.14 dB

Frequency Response 1600 to 20,000 Hz

Resonant Frequency (Fs) 824 Hz

DC Resistance (Re) 3.13 ohms

Voice Coil Inductance (Le) 0.01 mH

Mechanical Q (Qms) 7.17

Electromagnetic Q (Qes) 1.07

Total Q (Qts) 0.93

Overall Outside Diameter 2.55”

Cutout Diameter 1.85”

Depth 1.00"
