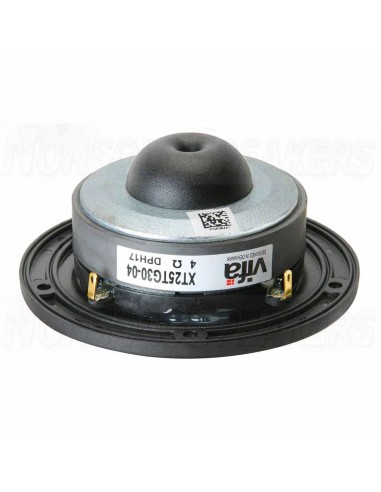

Peerless by Tymphany XT25TG30-04 Ring Radiator Tweeter

.

Product description

The XT25TG30-04 from Tymphany features a patented dual concentric diaphragm and a unique wave guide center plug which provide an excellent on- and off-axis response.

-

Highlights

Outstanding performance in 2-way systems

Dual ring radiator diaphragm (patented)

Waveguide center plug (patented)

Copper-clad aluminum VC wire

Flat response well beyond 20 kHz

Low distortion

.

Product details

Peerless by Tymphany XT25TG30-04 1" Dual Ring Radiator Tweeter

This member of the XT tweeter family utilizes two Tymphany technologies to deliver exceptional sound quality: the ring radiator patent, and the central waveguide patent. This model features a 4 ohm 25mm voice coil, mounted in a ferrite magnet motor. The tweeter also features a rear chamber to create extended low frequency response. The faceplate features recessed mounting holes which minimizes reflections off of mounting screws.

.

Specifications

Article number XT25TG30-04

Tweeter Type Ring Radiator

Tweeter Series XT Series

Cone / Dome Diameter 25 mm | 1"

Power Handling (RMS) 110 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 92.8 dB

Frequency Response 1300 to 20,000 Hz

Resonant Frequency (Fs) 426 Hz

DC Resistance (Re) 3 ohms

Voice Coil Inductance (Le) 0.01 mH

Mechanical Q (Qms) 2.5

Electromagnetic Q (Qes) 0.54

Total Q (Qts) 0.44

Overall Outside Diameter 4.09”

Cutout Diameter2.83”

Depth 1.77"
