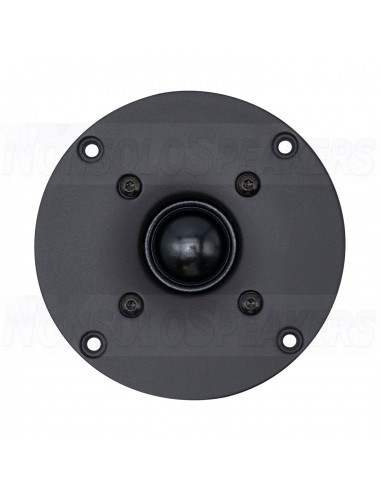

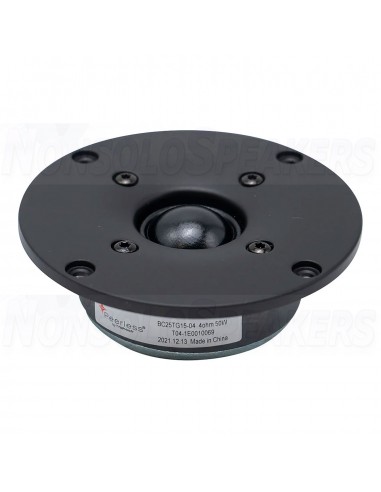

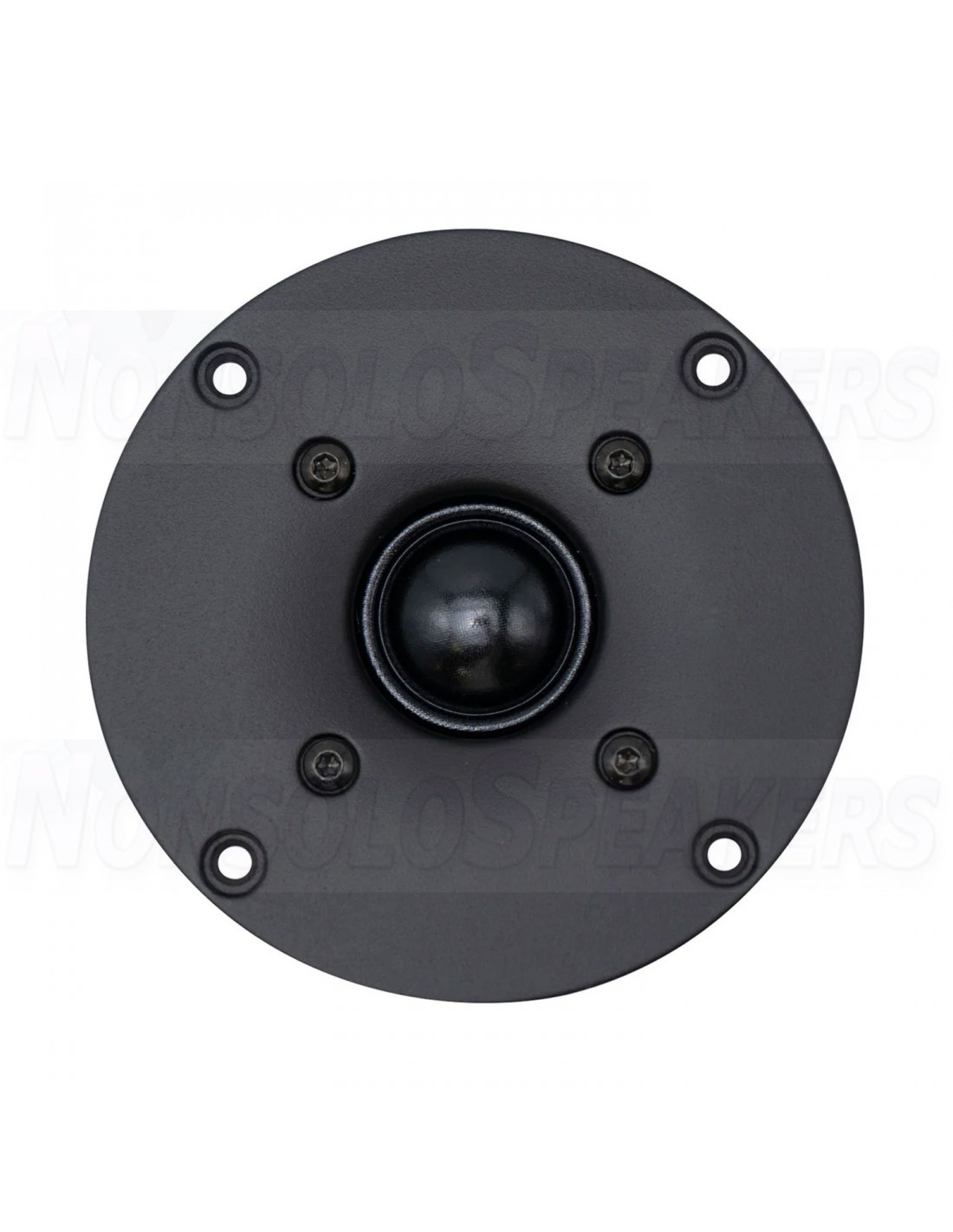

Peerless by Tymphany BC25TG15-04 Dome Tweeter

Product description

The BC25SG15-04 1" dome tweeter from Tymphany meet the most demanding requirements for audio excellence.

.

Highlights

Sculpted, recessed-loaded round 4-hole faceplate

Smooth, extended response and high efficiency

1" textile dome

Ferrofluid cooled voice coil

.

Product details

Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter

The BC family of tweeters features a damped fabric dome for smooth frequency response performance and ferrofluid in the gap of the ferrite magnet motor,providing enhanced cooling of the voice coil. BC tweeters come with a compact faceplate with recessed mounting holes,complete with sealing gasket which helps reduce vibration between baffle and driver.

.

Specifications

Article number BC25TG15-04

Tweeter Type Soft Dome

Tweeter Series BC Series

Cone / Dome Diameter 25 mm | 1"

Power Handling (RMS) 50 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 92.8 dB

Frequency Response 2200 to 28,000 Hz

Resonant Frequency (Fs) 1130 Hz

DC Resistance (Re) 3.1 ohms

Voice Coil Inductance (Le) 0.02 mH

Mechanical Q (Qms) 1.59

Electromagnetic Q (Qes) 1.06

Total Q (Qts) 0.64

Overall Outside Diameter 4.13”

Cutout Diameter 3.00”

Depth 1.25"
