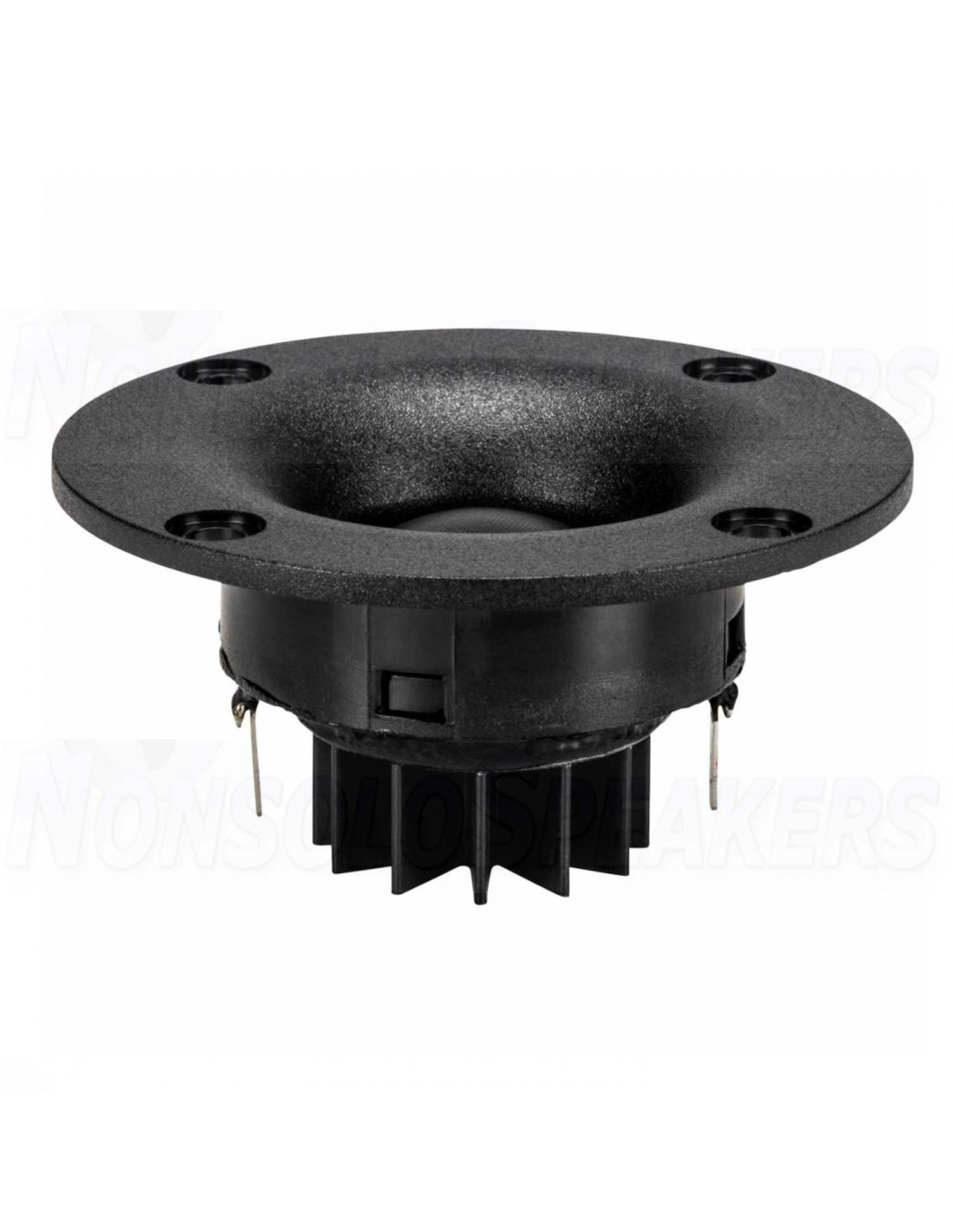

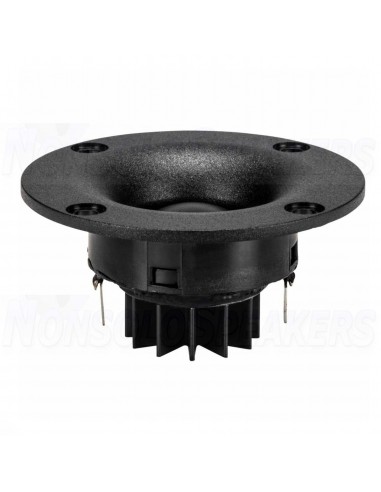

Peerless by Tymphany BC25SC08-04 Dome Tweeter With Waveguide

.

Product description

Tymphany's BC25SC08-04 4 ohm 1" silk dome tweeter is surprisingly efficient for its size. With natural response up to 20,000 Hz it is a great choice where space is at a minimum.

.

Highlights

Powerful neodymium motor increases efficiency and control

The silk dome produces a natural, non-fatiguing frequency response

Ferrofluid and cooling fins on the motor assembly for increased power handling

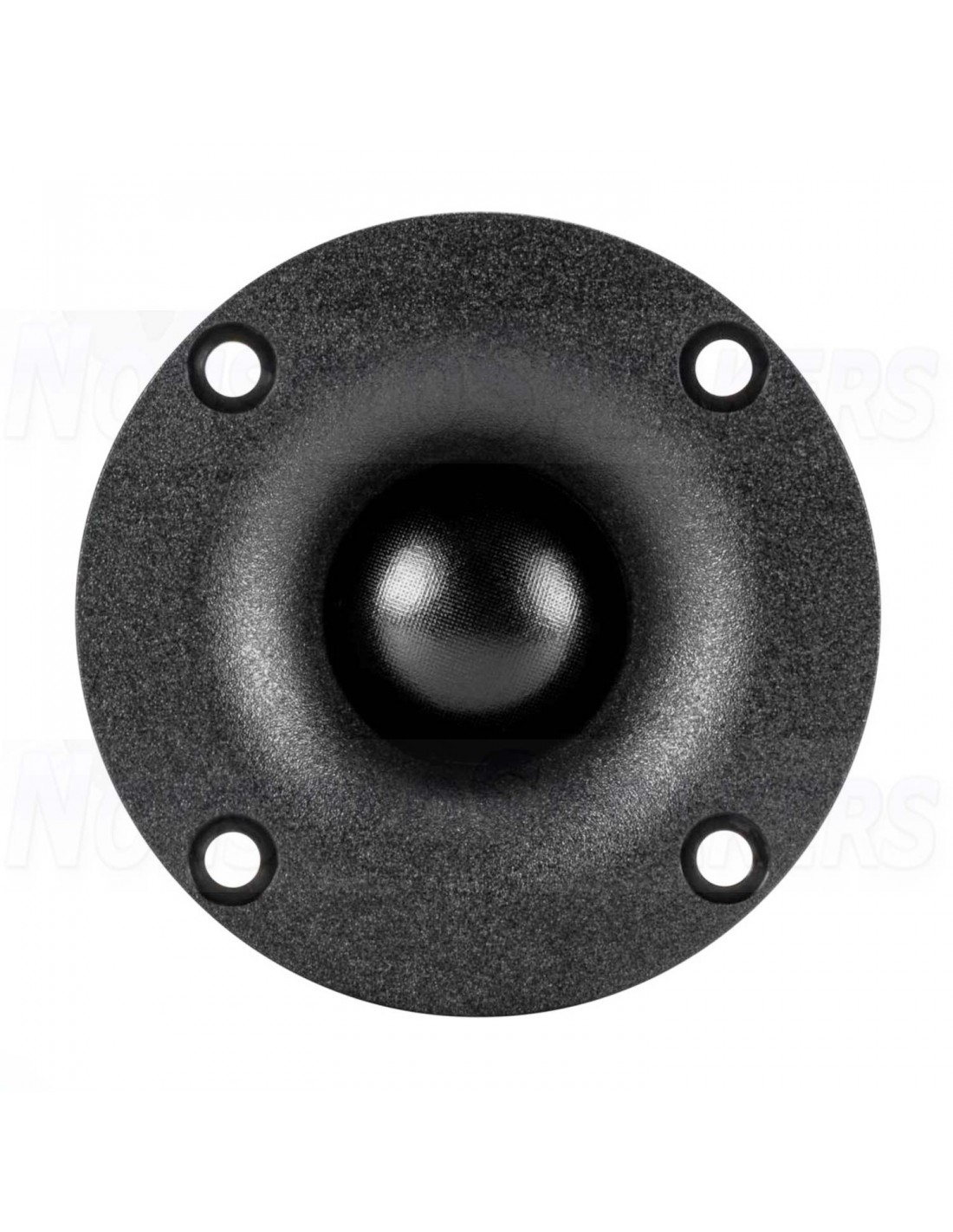

Waveguide faceplate controls dispersion and increases sensitivity

.

Product details

Peerless by Tymphany BC25SC08-04 1" Silk Dome Tweeter with Waveguide

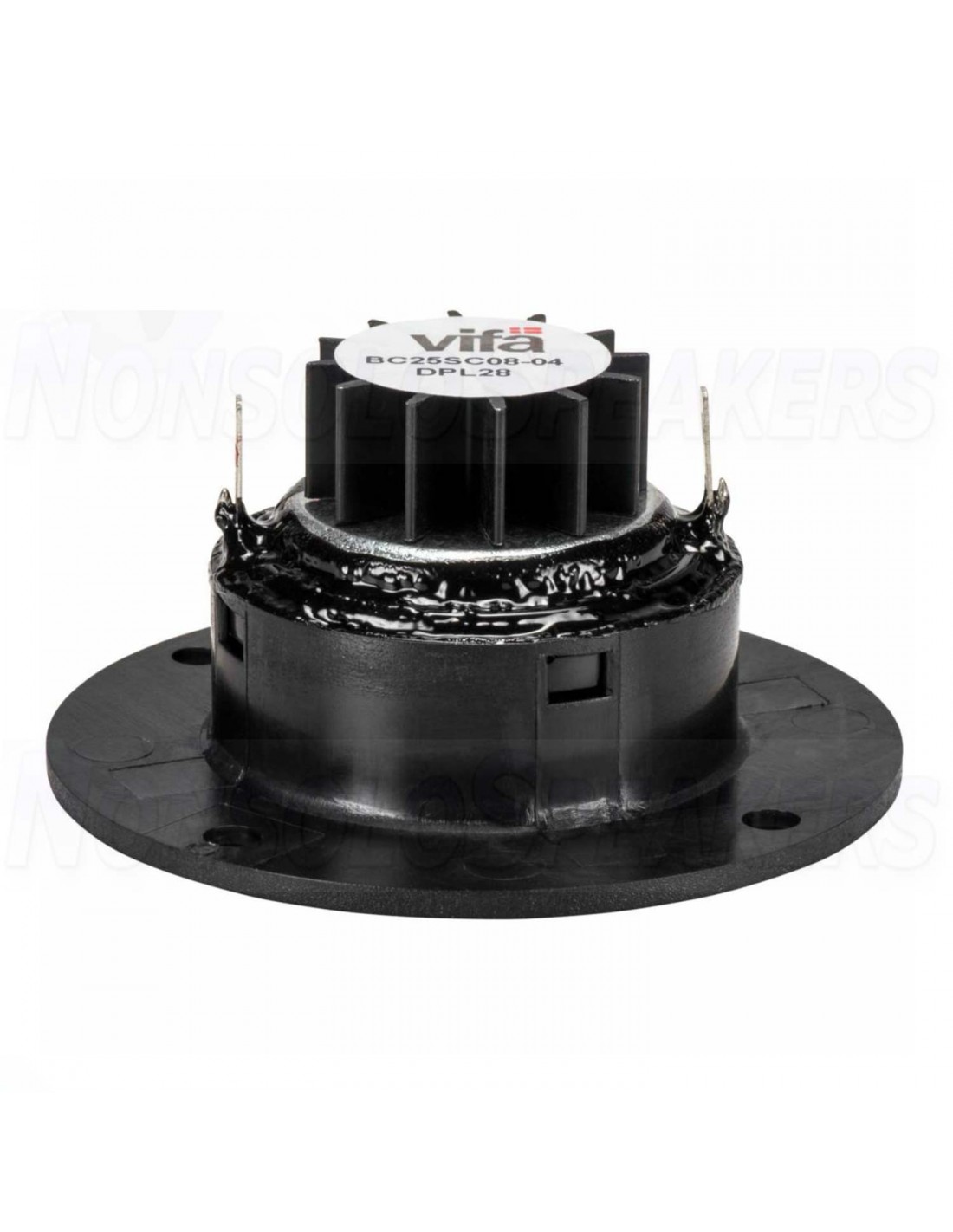

This BC family tweeter features a 4 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the NdFeB motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes. A finned heat sink has been added for improved power handling.

.

Specifications

Article number BC25SC08-04

Tweeter Type Soft Dome

Tweeter Series BC Series

Cone / Dome Diameter 25 mm | 1"

Power Handling (RMS) 100 Watts

Impedance (Z) 4 Ω

Sensitivity (SPL at 1m / 2.83V) 101.8 dB

Frequency Response 2500 to 18,000 Hz

Resonant Frequency (Fs) 1660 Hz

DC Resistance (Re) 2.8 ohms

Voice Coil Inductance (Le) 0.02 mH

Mechanical Q (Qms) 4.9

Electromagnetic Q (Qes) 1.53

Total Q (Qts) 1.17

Overall Outside Diameter 2.75

Cutout Diameter 1.75”

Depth 1.32"
