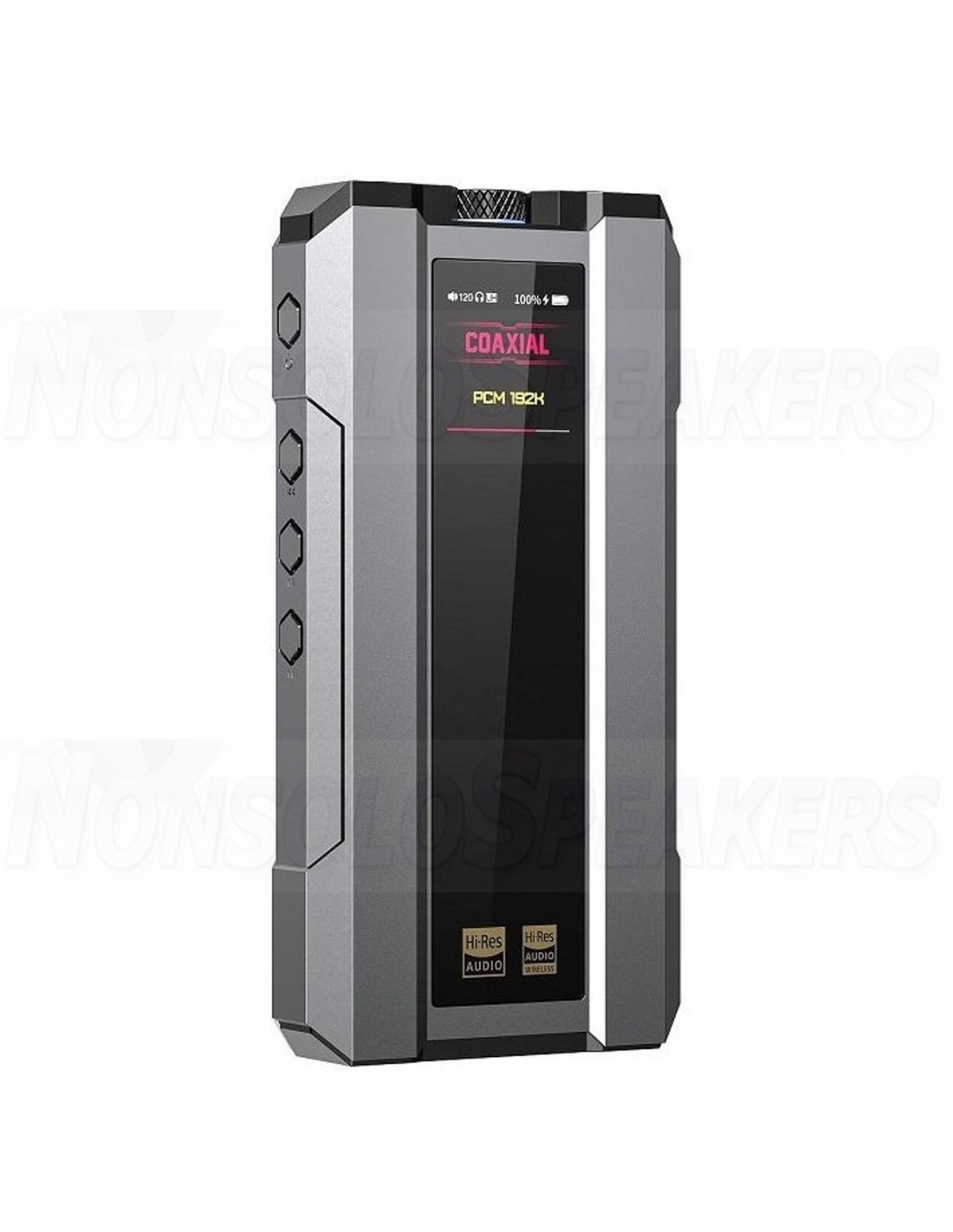

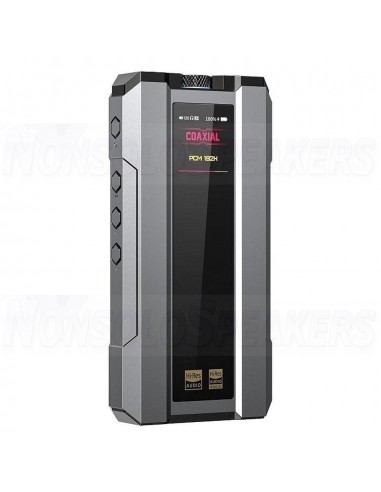

FiiO Q15 DAC and Headphone Amplifier

Highlights:

• For desk and on the go - Dual power supply mode - Separate Type-C power port
• 1600mW high output power - Easy to operate all kinds of IEMs and headphones
• Bluetooth / USB / Coaxial - One device that meets the needs of many usage scenarios
• AKM flagship DAC combination AK4191+AK4499EX - Digital-analog separated partitions, for significantly improved audio performance
• Qualcomm QCC5125 Bluetooth chip - Independent Bluetooth chip, supports high-resolution Bluetooth codecs such as LDAC XMOS 16-core XU316 - Supports 768kHz/32bit PCM, DSD512 and MQA full decoding
• Full-color IPS display - Comprehensive status display that makes control easier
• Global PEQ - 10-band EQ settings are available on all Bluetooth codecs and USB 192k
• 5-stage audio circuit - 5 gain stages, 15x digital-analog power supply
• Comprehensive protection - overheat/overvoltage/DC protection + comprehensive software and hardware battery protection mechanism

Portable device for the desk - FiiO Q15

The Q15 features a new desktop mode that features a separate Type-C power connector. When connected to the power adapter, the Q15 is powered externally, bypassing the battery.

.

Amazing power of 1600mW - Competing with desktop amplifiers

In desktop mode, the FiiO Q15 with balanced output can output 1600mW in the enhanced over-ear headphone mode, which is more than enough to drive various IEMs and full-size headphones..

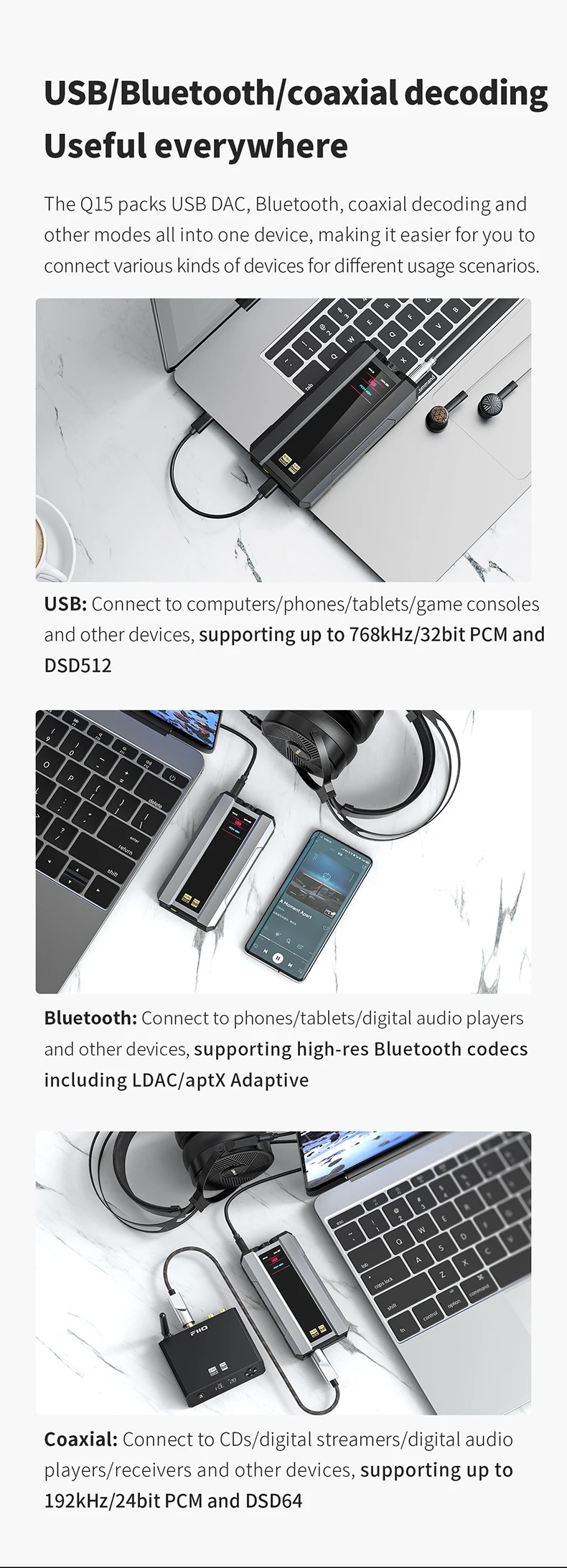

USB / Bluetooth / Coaxial decoding

FiiO Q15 combines USB DAC, Bluetooth, coaxial decoding and other modes in one device, making it easier to connect different devices for different usage scenarios. USB: Connect to computers/phones/tablets/game consoles and other devices, support up to 768kHz/32bit PCM and DSD512 Bluetooth: Connect to phones/tablets/digital audio players and other devices, support high-resolution Bluetooth codecs including LDAC/aptX Adaptive Coaxial: Connect to CD/digital streamer/digital audio players and other devices, support up to 192kHz/24bit PCM and DSD64

.

AKM Flagship DAC Combo - AK4191EQ+AK4499EX

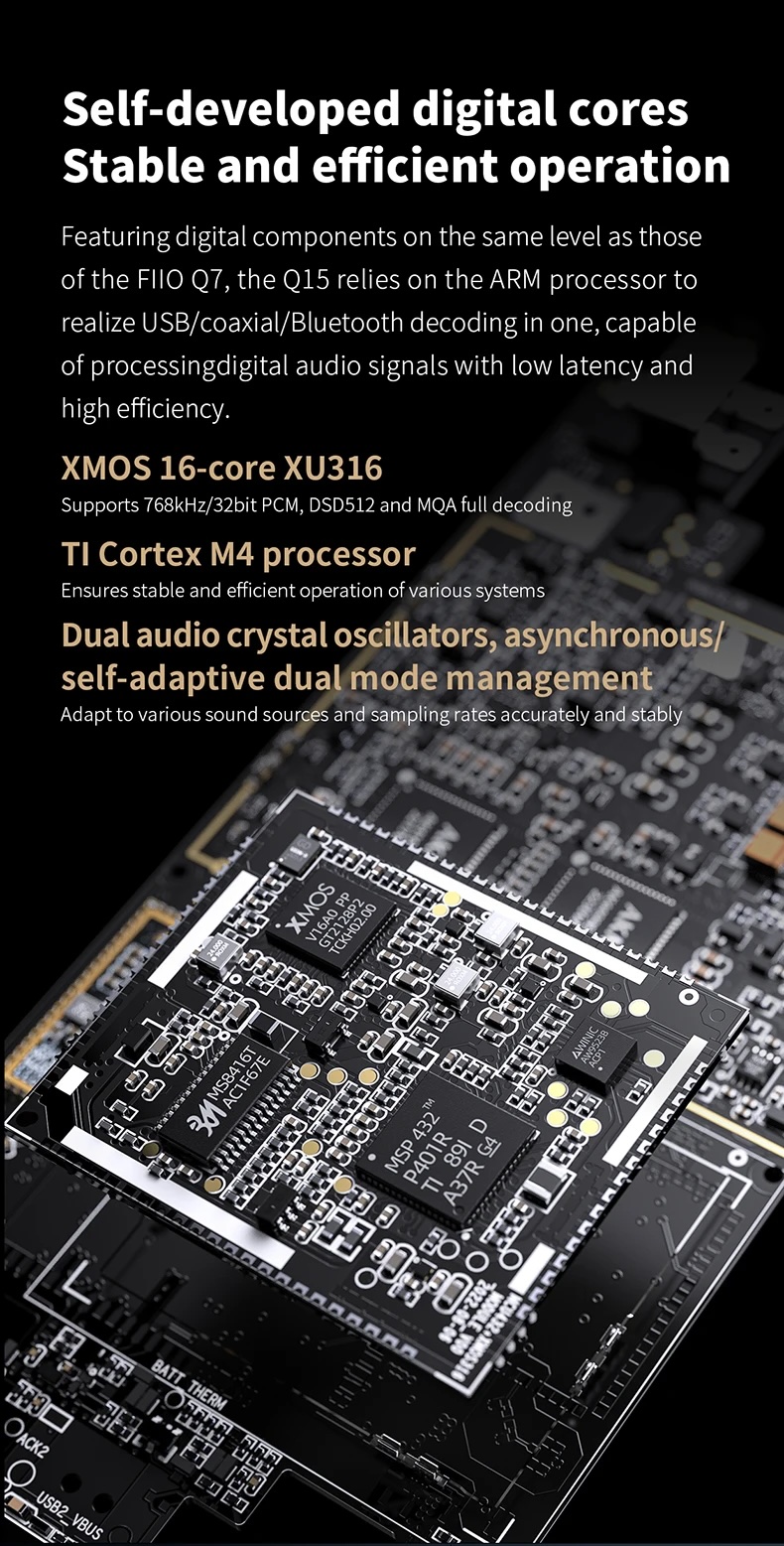

Self-developed digital cores - stable and efficient operation

The Q15 is equipped with digital components at the same level as the FiiO Q7 and uses the ARM processor to realize USB/Coaxial/Bluetooth decoding in one device, which can process digital audio signals with low latency and high efficiency. XMOS 16-core XU316: Supports full decoding of 768kHz/32bit PCM, DSD512 and MQA. TI Cortex M4 processor: Ensures stable and efficient operation of various systems Two audio crystal oscillators, asynchronous/self-adaptive dual-mode management: Accurate and stable adaptation to different sound sources and sampling rates

.

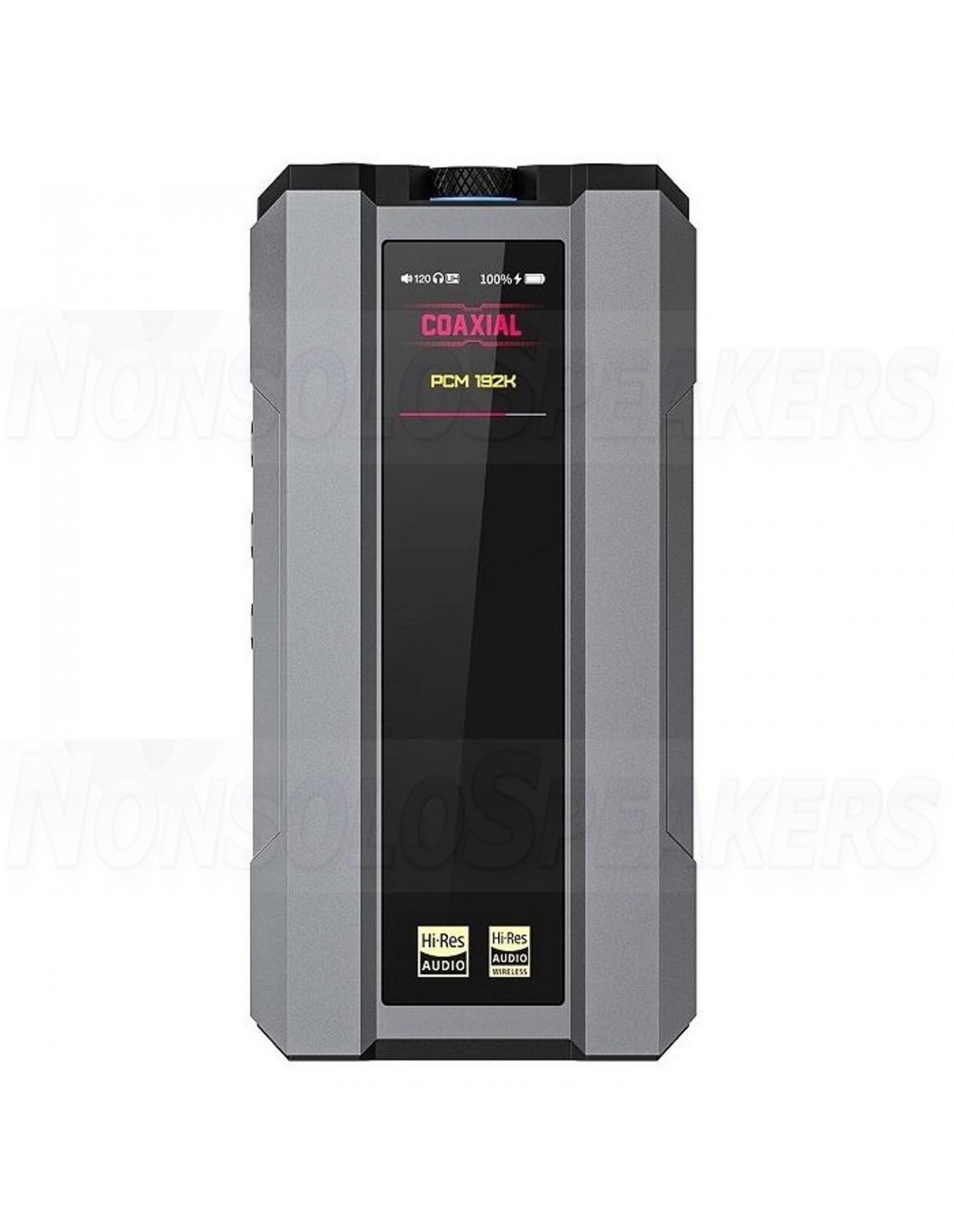

Full-color IPS display - visually appealing controls

The full-color IPS display makes it easy for you to view the current device status, such as current sample rate, volume, gain, and other information. An intuitive volume control helps you control the volume and easily navigate through the settings.

.

Phone mode switch - One touch

FiiO engineers have implemented a "Phone Mode" switch to make the Q15 more suitable for use with phones. When you enable Phone Mode*, the Q15 will be powered by the built-in battery and will not consume the phone's battery.

*If you need to connect to a computer, turn off Phone Mode.

.

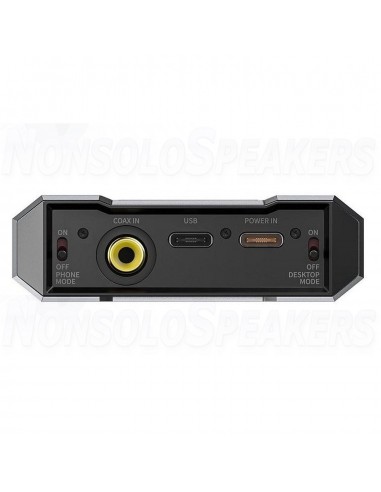

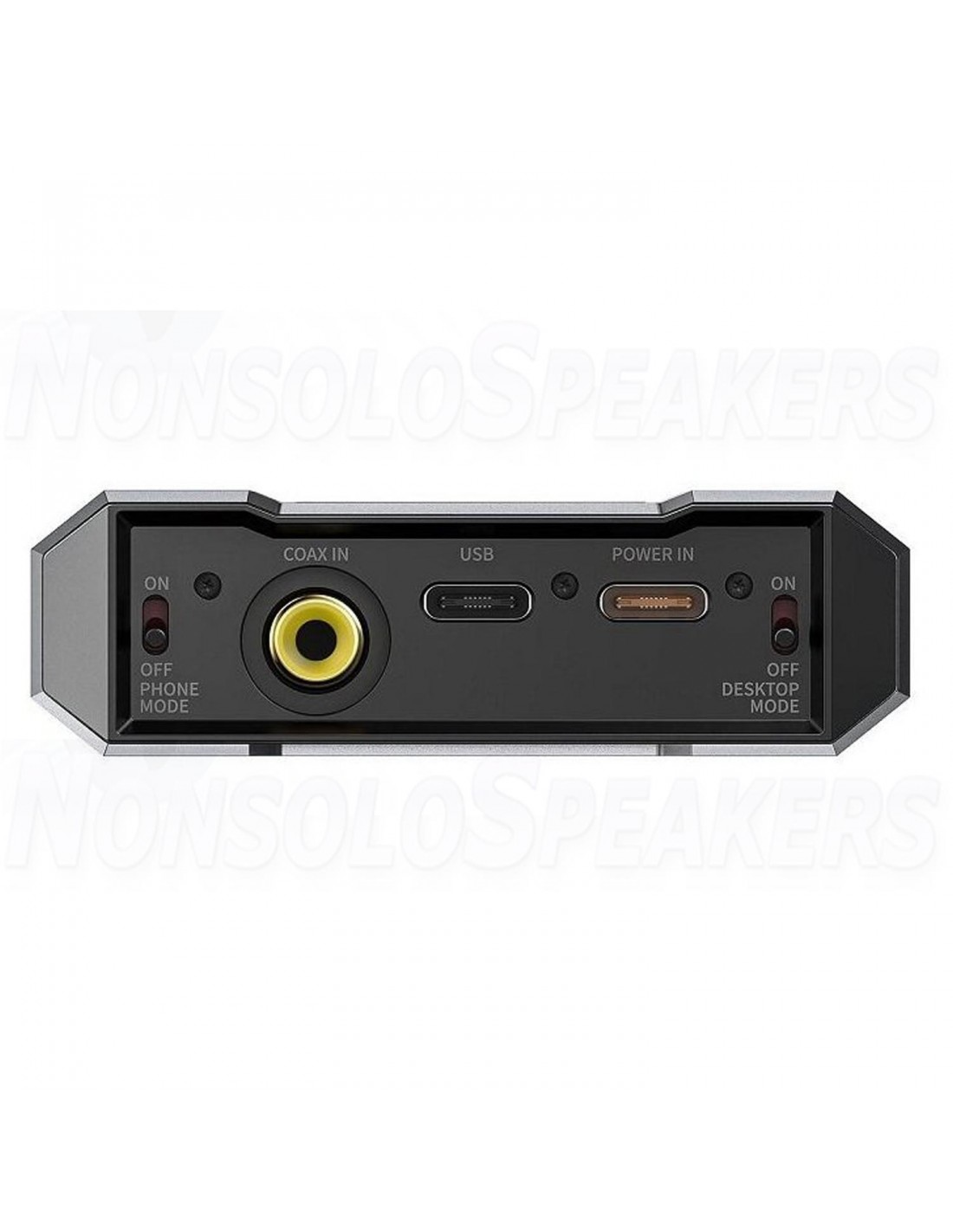

RCA coaxial connector - Complete transmission of the audio signal

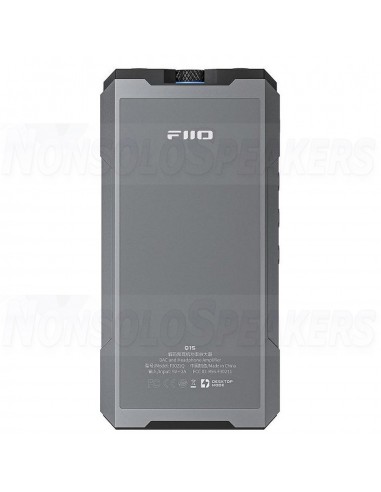

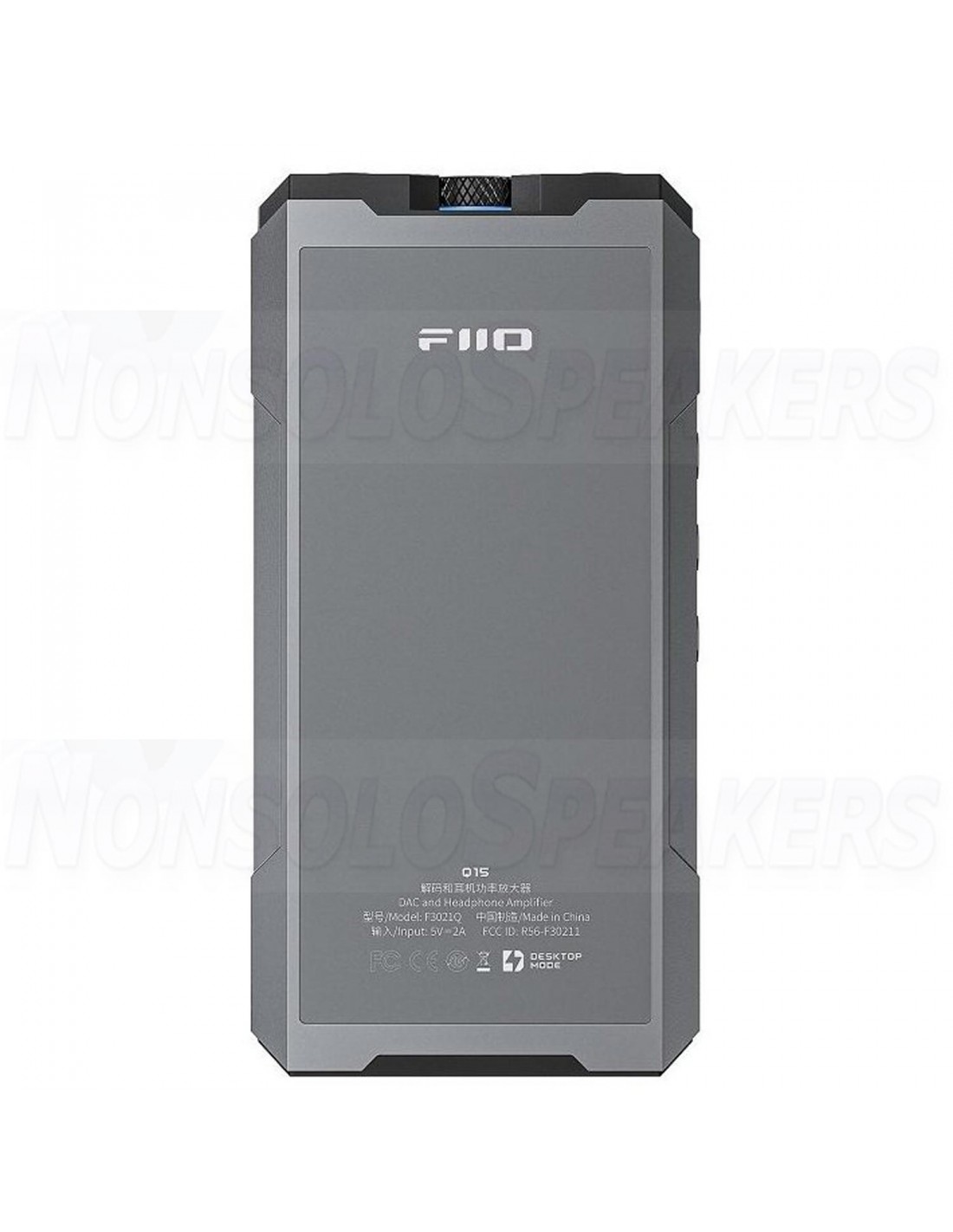

Thanks to the carefully designed internals, the FiiO Q15 also has a coaxial input. This allows the Q15 to be connected directly to digital streamers and CD players using regular coaxial cables. Perfect Size - Perfect Feel The Q15 uses AG glass for its back for the first time, which is scratch-resistant, prevents fingerprints and feels comfortable. Thanks to the 18:9 size ratio, the device is comfortable to use both in the hand and in combination with other portable devices. Whether you are simply on the go or on a business trip, you are in control of your high-quality sound.

.

Global PEQ - Adjustment to personal taste

FiiO Q15 features 7 EQ presets and 3 customizable PEQ* presets. PEQ can be used in both Bluetooth mode* and USB DAC mode*. FiiO's self-developed PEQ algorithm and user interface allow you to select the exact frequencies to adjust along with their gain and bandwidth - allowing you to fine-tune the sound exactly how you want it. *Customizable PEQ and PEQ under coaxial input will be supported by subsequent firmware upgrades. *PEQ in Bluetooth mode supports LDAC and other formats with support for 96kHz/24bit PCM. *USB DAC PEQ supports 192kHz/24bit PCM. *USB DAC EQ is controlled by the XMOS chip. When you turn the EQ on and off in this mode, the USB connection will be temporarily interrupted and automatically reconnected. Tap "Play" to restore the output.

.

Comprehensive protection

FiiO engineers have implemented a variety of hardware and software-controlled protection mechanisms to let you enjoy great sound without worry. Maximum volume limit to prevent hearing damage; Long-life high-temperature resistant battery + dynamic temperature-dependent charge and discharge control + charging protection + battery isolation, all of which work together to extend the battery life; Overheat, overvoltage and DC protection mechanism enables the Q15 to provide stable output power by ensuring the audio circuit works properly and ensuring the safety of the connected headphones.

Technical data

• Decoding inputs: USB/Bluetooth/Coaxial
• Bluetooth chip: QCC5125 (CPU+DSP dual-core design), Bluetooth 5.1
• USB chip: XMOS XU316 DAC: AK4191+AK4499EX
• Bluetooth codecs: AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC
• USB DAC: Asynchronous 768kHz/32bit, DSD256, MQA 8x deconvolution (EQ supports up to PCM 192kHz/24bit)
• USB DAC driverless mode: Supported
• Coaxial input: 192kHz/24bit, DOP64
• Display: 1.3-inch 240×240 IPS color display

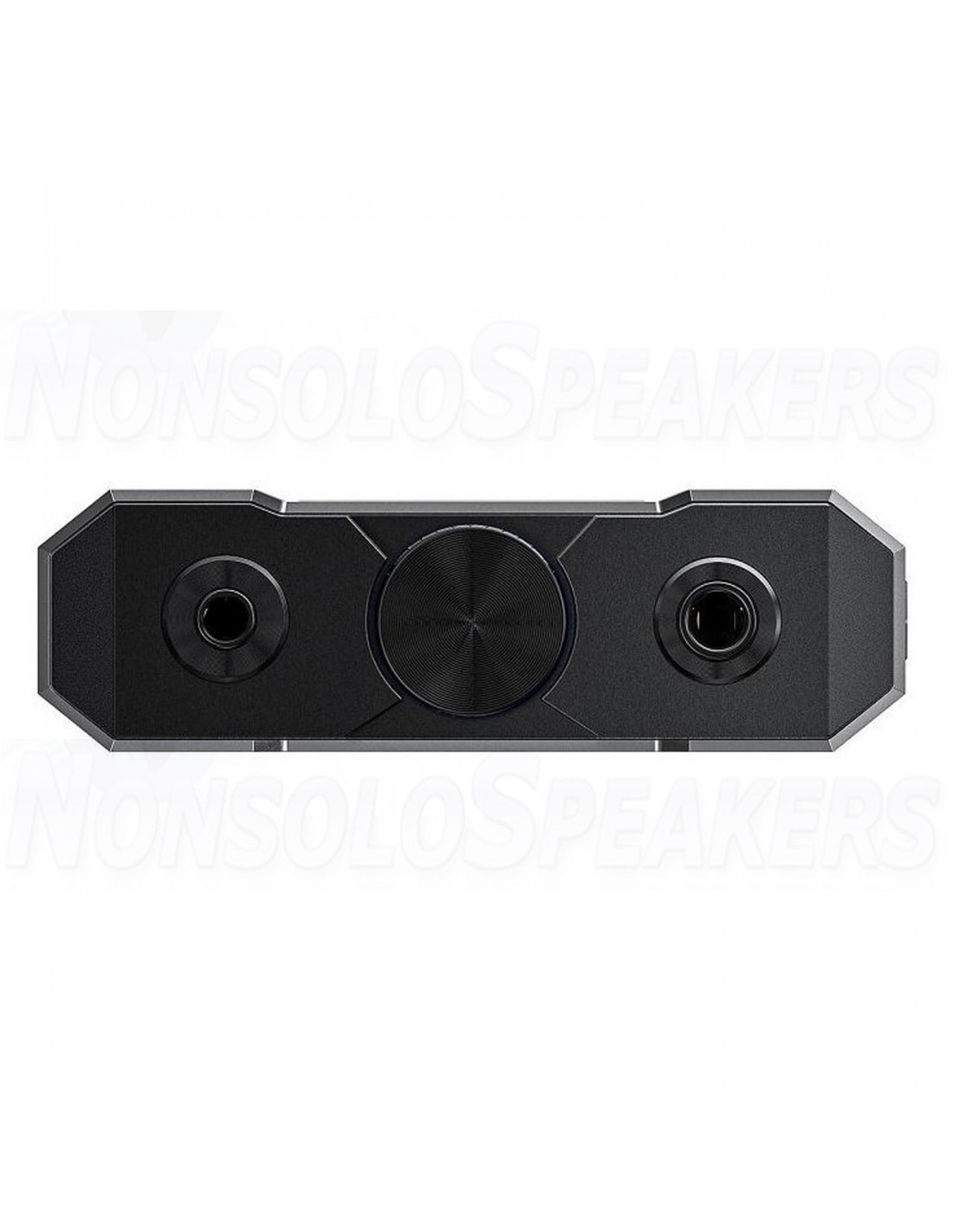

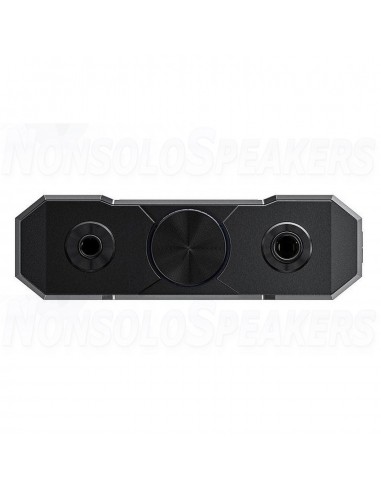

• Headphone outputs: Single-ended 3.5mm + balanced 4.4 mm
• Line output: single-ended + balanced; Multiplex headphone jack
• Battery: 5500mAh high temperature resistant lithium-ion battery
• Output power 1: L+R≥620mW+620mW (32Ω SE/THD+N＜1%)
• Output power 2: L+R≥85mW+85mW (300Ω SE/THD+N＜1%)
• Output power 3: L+R≥1600mW+1600mW (32Ω BAL/THD+N＜1%)
• Output power 4: L+R≥340mW+340mW (300Ω BAL/THD+N＜1%)
• Frequency response: 20Hz~80kHz (-3dB)
• Signal to noise ratio: ≥123dB (A-weighted)
• Noise floor: PO<3μV (UAC, Ultra High Gain Mode, A-weighted), LO<1.6μV (UAC, A-weighted), BAL<4.8μV (UAC, Ultra High Gain Mode, A-weighted), BAL LO<1.8μV (UAC, A-weighted)
• Output impedance: ＜1.5Ω (32Ω load) THD+N: ＜0.0004% (LO/1kHz/-4dB@10kΩ)
• Dimensions: Approx. 143.5mm × 71.75mm × 21.75mm
• Weight: Approx. 305g
