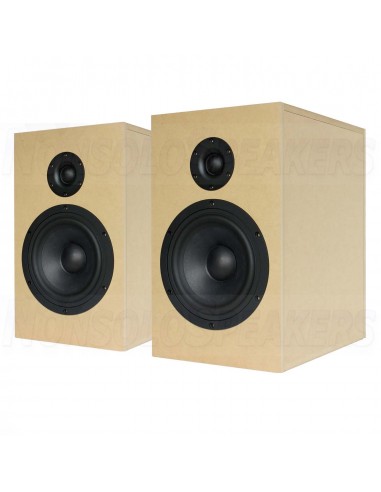

CSS Criton-1TD-X Bookshelf Speaker Kit with LD25X

.

Product description CSS Criton-1TD-X Speaker Bookshelf Kit

An upgrade for audio enthusiasts, the CSS Criton-1TD-X Speaker Bookshelf Kit builds upon the success of the original 1TD design. This DIY kit allows you to assemble your own bookshelf speakers, delivering exceptional sound quality.

.

Highlights

Crossover Point: 1600 Hz

Recommended Power: 20-100 watts

Nominal Impedance: 8 Ohm

Frequency Response:

+/- 2 dB from 45 Hz to 14 kHz anechoic

+/- 3 dB from 40 Hz to 20 kHz anechoic

30 Hz to 20 kHz in room

.

Product details

CSS Criton-1TD-X Bookshelf Speaker Kit with LD25X

The key improvement lies in the new LD25X tweeter. Compared to the previous version, the 1TD-X boasts smoother and clearer highs, thanks to this upgraded component. The kit retains the well-regarded 7-inch woofer for deep bass, and combines it with precision crossovers to ensure a well-balanced soundscape across the entire frequency range. Users consistently report a positive experience with the assembly process, making this kit a great option for both beginners and experienced DIYers.

While the 1TD-X speakers deliver impressive sound on their own, some listeners might prefer to add a subwoofer for an extra low-end punch. Overall, this CSS speaker kit offers a compelling proposition for those who crave high-fidelity audio with the advantage of enjoying the speaker building experience.

.

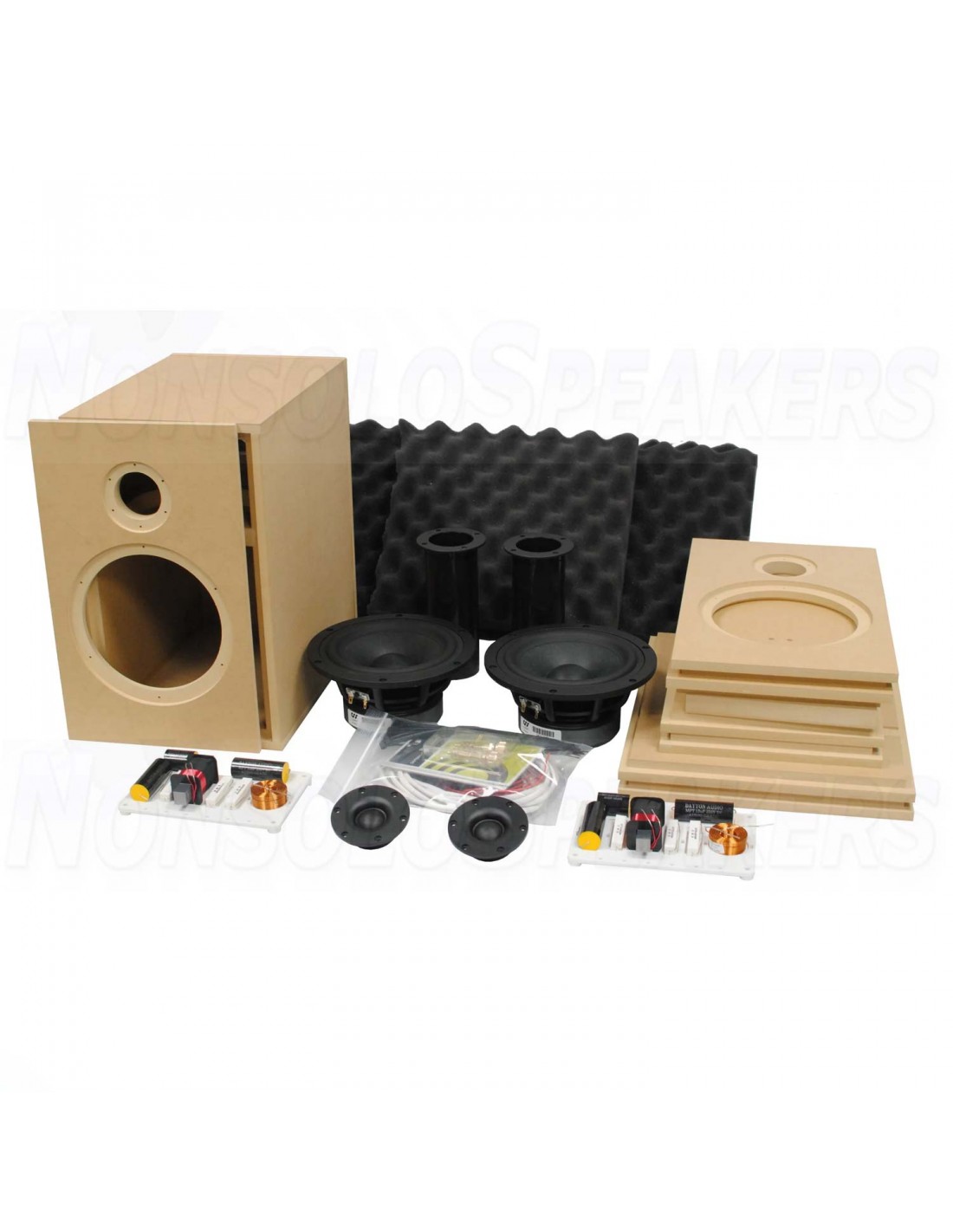

This kit includes:

2x CSS LD25X Tweeters

2x CSS LDW7 woofers

4x 12 uF capacitors*

2x 6.2 uF capacitors*

2x 3.0 mH 18 AWG I-Core inductors*

2x 0.30 mH 18 AWG air core inductors*

4x 6.0 Ohm 10 watt non-inductive resistors*

2x 2 Ohm 10 watt non-inductive resistors*

2x CSS SmartNode crossover boards*

2x pairs gold plated binding posts

2x 2" diameter port tubes

Screws

Zip Ties

Internal speaker wire

Crossover hookup wire

Eggcrate foam

.

Specifications
