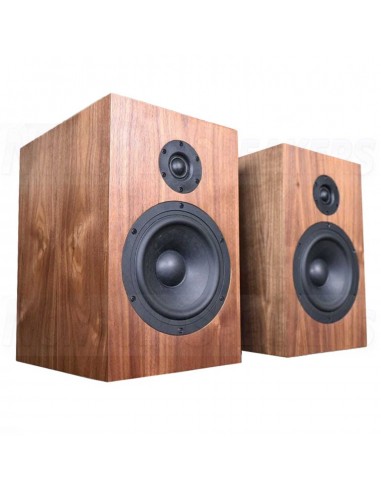

CSS Criton-1TD Bookshelf Speaker Kit with LD22

.

Product description CSS Criton-1TD Speaker Bookshelf Kit

The CSS Criton-1TD Speaker Bookshelf Kit is a DIY speaker kit that is well-regarded for its sound quality and value. It is a two-way bookshelf speaker that uses a 7" woofer and a 1" tweeter. The kit includes all of the necessary components to assemble the speakers, including the cabinets, drivers, crossovers, and hardware.

.

Highlights

Crossover Point: 1600 Hz

Recommended Power: 20-100 watts

Nominal Impedance: 8 Ohm

Frequency Response:+/- 1.5 dB from 45 Hz to 17 kHz anechoic

+/- 3 dB from 40 Hz to 20 kHz anechoic

30 Hz to 20 kHz in room

.

Product details

CSS Criton-1TD Bookshelf Speaker Kit with LD22

The Criton-1TD kit includes all the parts you need to create two bookshelf speakers. Each speaker features a 7-inch woofer for deep bass and a 1-inch tweeter for clear highs. The kit also boasts precision crossovers that ensure a smooth and balanced sound across the entire frequency range. Users appreciate the easy assembly process, making this kit a great option for beginners and experienced DIYers alike.

While the Criton-1TD speakers deliver impressive sound on their own, some listeners might prefer to add a subwoofer for an extra boost in the low-end frequencies. Overall, this CSS speaker kit offers a fantastic value proposition for those who crave high-quality audio.

.

This kit includes:

2x CSS LD22 tweeters

2x CSS LDW7 woofers

2x 8.2 uF capacitors

2x 6.8 uF capacitors

2x 25 uF capacitors

2x 2.5 mH 18 AWG I-Core inductors

2x 0.10 mH 18 AWG air core inductors

2x 0.30 mH 18 AWG air core inductors

2x 6.0 Ohm 10 watt non-inductive resistors

2x 10.0 Ohm 10 watt non-inductive resistors

2x CSS SmartNode crossover boards

2x pairs gold plated binding posts

2x 2" diameter port tubes

Screws

Zip Ties

Internal speaker wire

Crossover hookup wire

Eggcrate foam
