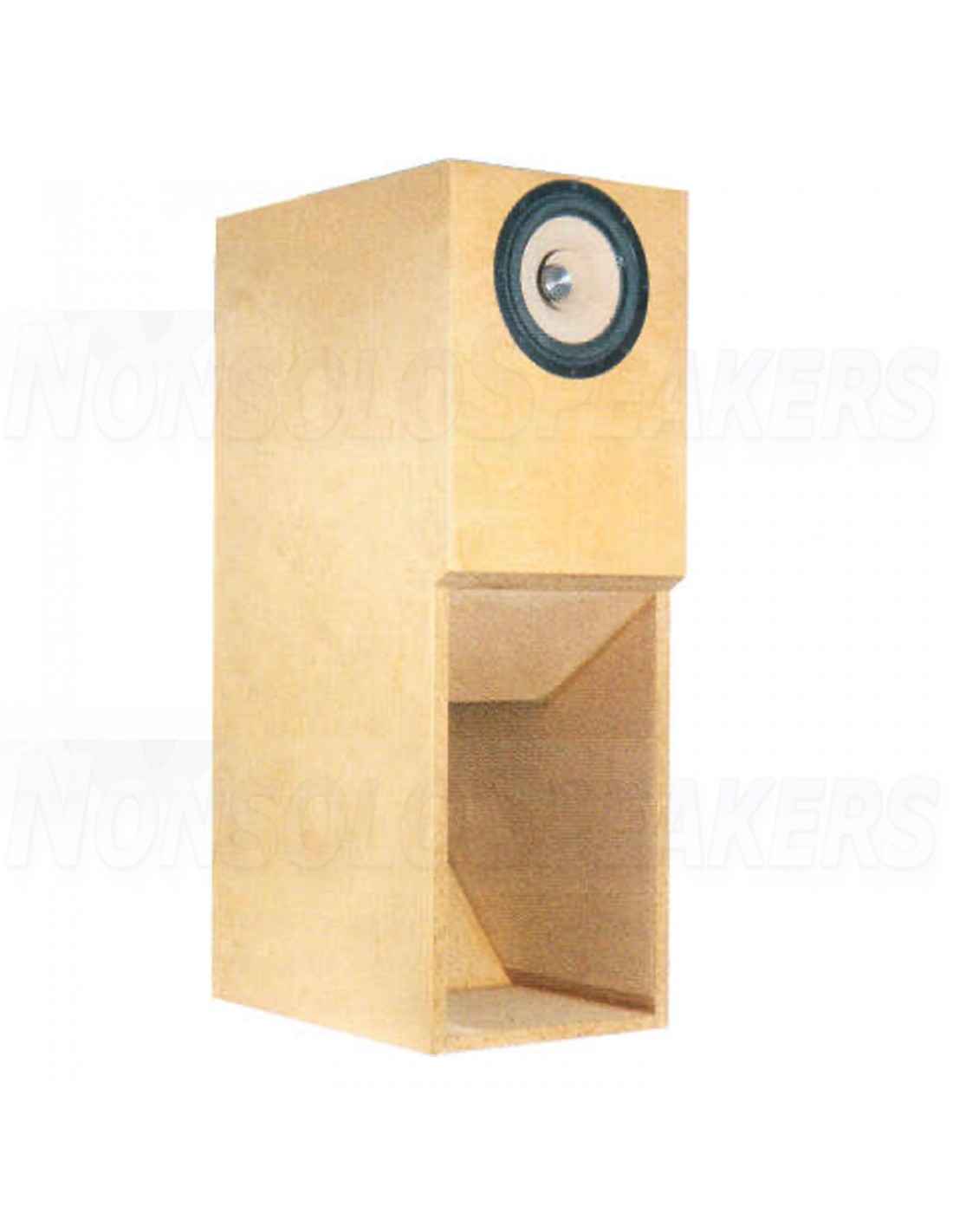

Tang Band Cobra-Horn 2 floorstanding loudspeakers Kit with high-end crossover

Kit with high-end crossover without housing price per speaker

Cobra-Horn 2 is a floor-standing loudspeaker with a broadband loudspeaker. Cobra-Horn 2 is a horn loudspeaker with a back-loaded hyperbolic horn with a chassis from Tang Band. The loudspeaker was developed by Bernd Timmermanns. The crossover consists of a blocking circuit for mid-range reduction. The frequency response is balanced. The decay spectrum (waterfall diagram) is exemplary for a broadband loudspeaker. It shows a rapid decay of all resonances. The non-linear distortions are less than 1% above 100 Hz at 90 dB (1m) sound pressure.

The high-end kit is equipped with a foil coil to reduce the microphonic effect (the current through the coil generates a magnetic field, which in turn sets the winding in motion. This movement induces voltages in the coil, which are added to the useful signal. The tighter the winding of the coil, the less the useful signal is distorted.) The capacitor for the broadband speaker is a Mundorf Supreme silver/oil capacitor.

.

Technical data:

• Impedance: 8 Ohm
• Sound pressure level (2.83V/1m): 92 dB
• Dimensions (HxWxD): 991 x 338 x 500 mm
• Frequency range (-8dB): 48 - 20000 Hz
• Crossover frequency(s): Hz
• Principle: Horn

Highlights

• Tang Band W8-2145 wideband speakers
• 0.5x PE foam sealing strip, 5x2 mm, roll 7.5 m
• 2x Sonofil insulation material 100 x 35 cm for 20 liters
• Pole terminals PK31, one pair, gold-plated, red+black
• 2m speaker cable 2x2.5 mm2, transparent
• Pan screws 4x20 black, Phillips, 8 pieces
• Construction plan for the kit the crossover components (right), to be assembled on a wooden board.
• Mundorf MCap EVO Silver Gold Oil 4.7 μF / 1000 V
• Mundorf foil coil CFC12-1.0mH/0.17Ohm
• Metal oxide resistor MOX10 3.9 Ohm (orange-white-gold)
