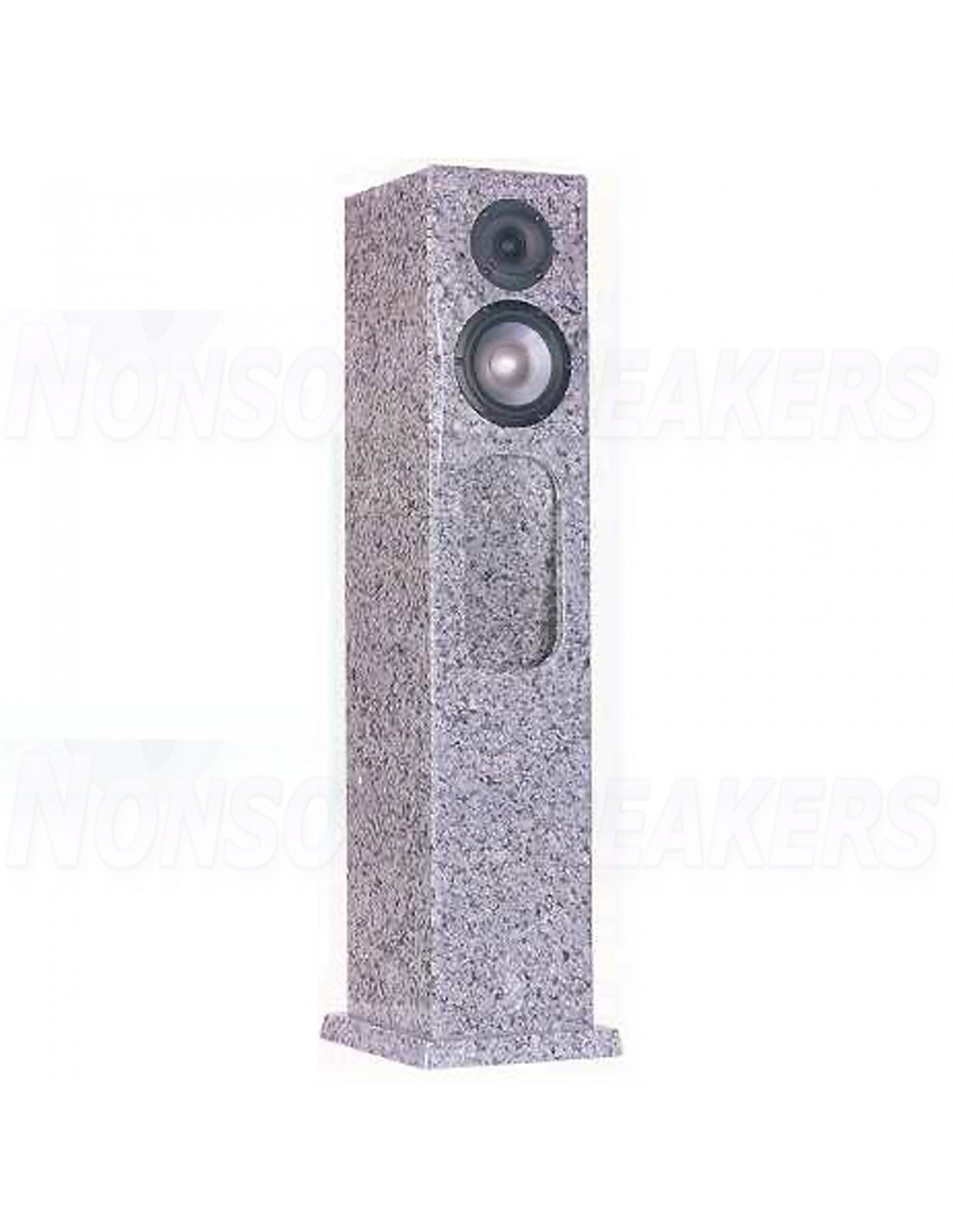

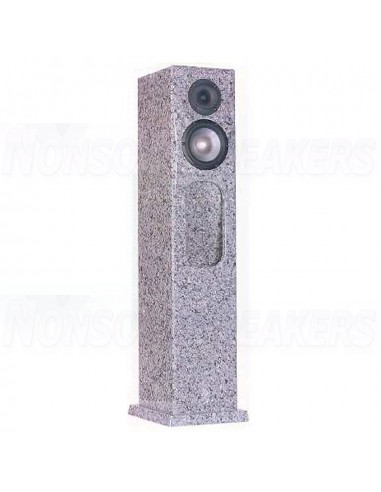

Seas Platino TL with Seas chassis from Hobby HiFi 4/08

Price per speaker without housing

Platino TL is a transmission line box with Seas components; Bernd Timmermanns chose the Seas 29 TFF/W dome and the L16RN-SL woofer.

.

Technical data:

• Sound pressure level: 82 dB (2.83V/1m)
• Frequency range (-3dB): 40 - 27 kHz
• Impedance: 8 Ohm
• Crossover frequency: 2.8 kHz
• Size (HxWxD): 98 x 17.2 x 30 cm
• Principle: Transmission line

Highlights

• Seas dome 29TFF/W
• Seas woofer L16RN-SL
• 1 Mat Damping 10
• 1 bag of polyester wadding
• Bass reflex tube HP 50, to be shortened to 5 cm
• Self-adhesive sealing strips
• 10 pan screws 4x20 mm
• 2 gold-plated pole terminals
• 3 m cable 2x2.5 mm2 for the internal wiring
• the crossover components (right)
• the construction plan
• grid plate RA 160
• 1.8 mH air coil / 1.4 mm
• 0.33 mH air coil / 0.7 mm
• 0.47 mH air coil / 0.7 mm
• 2x 3.3 μF MKP capacitor
• 3.0 μF MKP capacitor (2x 1.5 μF parallel)
• 1.0 μF MKP capacitor
• 8.2 Ohm MOX4 resistor (gray-red-gold)  6.8 Ohm MOX4 resistor (blue-gray-gold)

.
