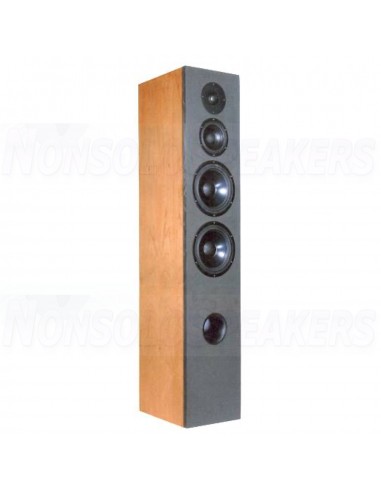

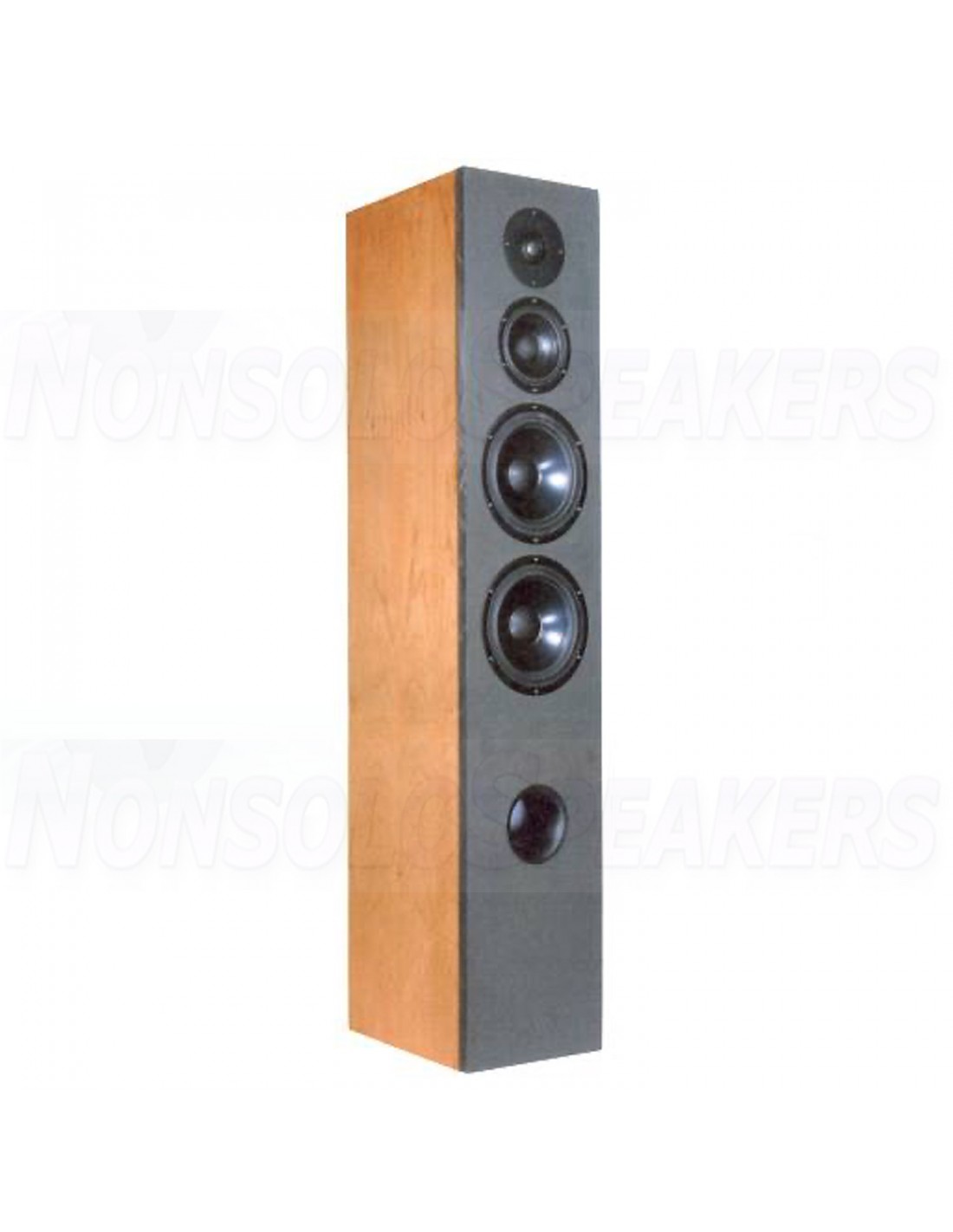

Seas Pareto floorstanding loudspeaker Kit with high-end crossover

Kit with high-end crossover without housing Price per speaker

Pareto is a floor-standing loudspeaker that uses Seas chassis. To keep the price of the 3-way speaker affordable, Bernd Timmermanns chose a slightly higher crossover frequency between the speakers. This makes the crossover components for the woofer and midrange speaker (coil, capacitor) cheaper. Due to the higher crossover frequency, the midrange speaker has to produce less bass: a smaller chassis can therefore be used. Since the two woofers connected in parallel would be too loud compared to the midrange speaker, the woofers were connected in series.

Instead of the 600 V - Q6 capacitors recommended in the Hobby HiFi magazine, which only have a slightly higher voltage rating than the standard version, we offer Jantzen Z-CAPs in our high-end kit. As recommended by Hobby HiFi, the coils are baked enamel coils with a diameter of 1.0 mm. A large I-core coil is used in series with the woofers; for the electrolytic capacitors, we supply components with a voltage rating of 70Vdc.

Technical data:

• Impedance: 8 Ohm
• Sound pressure level (2.83V/1m): 88 dB
• Dimensions (HxWxD): 1100 x 220 x 300 mm
• Frequency range (-8dB): 48 - 33000 Hz
• Frequency range (-3dB): 50 - 30000 Hz
• Crossover frequencies: 450, 2600 Hz
• Principle: bass reflex box

Highlights

• Seas tweeter 22 TAF/G
• Seas midrange MCA 12 RC
• 2 Seas woofers WA 180
• Bass reflex tube HP100

• 2.5 packs of Bondum 800 insulation fleece
• PE sealing strip
• 1.5 packs of polyester wadding insulation material
• Pair of pole terminals made of gold-plated brass
• 4m speaker cable 2x2.5 mm2, transparent
• 24 pan screws 4x20mm
• 2 grid plates LP/RA140
• Electrolytic capacitor, smooth 15uF / 70Volt
• Electrolytic capacitor, smooth 33uF / 70Volt
• Jantzen Z-standard MKP capacitor 4.7 μF / 400V
• Jantzen Z-standard MKP capacitor 10 μF / 400V
• Jantzen Z-standard MKP capacitor 33 μF / 400V
• Baked varnish air coil 0.27 mH / 1.0 mm
• Baked varnish air coil 1.0 mH / 1.0 mm
• H-core coil H71, 4.7 mH / 0.46 0hm
• large i-core coil 8.2 mH / 0.49 Ohm
• MOX10 resistor 1.0 Ohm/10Watt (brown-black-gold)
• MOX10 resistor 2.2 Ohm/10Watt (red-red-gold)

.
