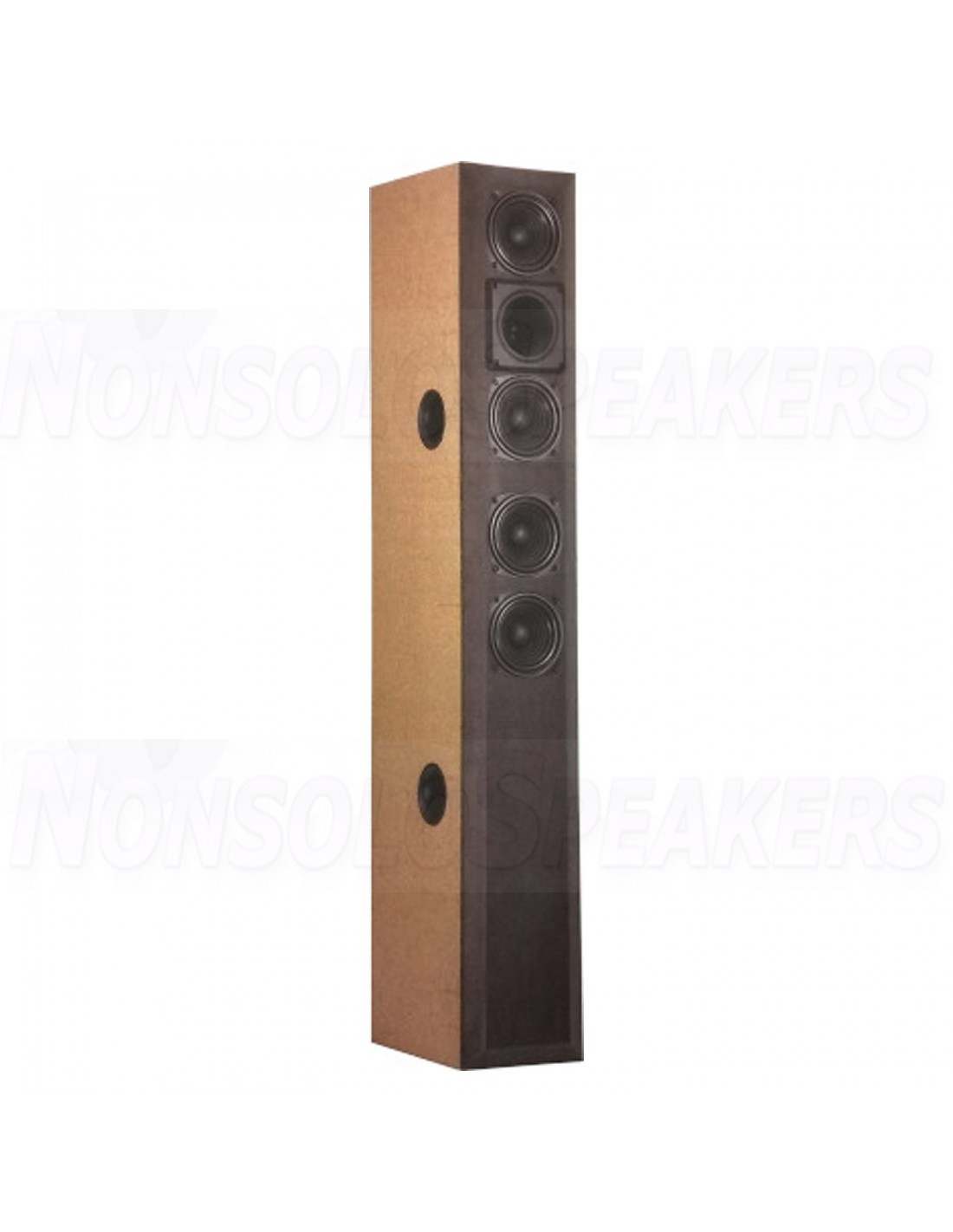

Monacor Long Tall Sally floorstanding loudspeaker kit with high-end crossover

Kit with high-end crossover without housing, price per speaker

Long Tall Sally is a two-and-a-half-way floor-standing loudspeaker. Long Tall Sally is a bass reflex loudspeaker with a chassis from Monacor. The loudspeaker contains the following loudspeaker chassis: - a Monacor MPT-165 tweeter - two Monacor SP-60/4 mid-woofers - two Monacor SP-60/4 woofers The loudspeaker was developed by Bernd Timmermanns. The crossover consists of: - a 2nd order high pass (12 dB / octave) for the tweeter. - a 2nd order low pass (12 dB / octave) for the mid-woofer. - a 2nd order low pass (12 dB / octave) for the woofer. The frequency response of the loudspeaker is balanced. The decay spectrum is almost flawless. The nonlinear distortions at medium volumes (90 dB, 1 m) are below 1.2% above 300 Hz.

The high-end kit is equipped with baked enamel coils in the important places to reduce the microphonic effect (the current through the coil generates a magnetic field, which in turn sets the winding in motion. This movement induces voltages in the coil, which are added to the useful signal. The tighter the winding of the coil, the less the useful signal is distorted.) The capacitors for the Monacor MPT-165 - where quality is particularly important - are high-quality Audaphon MKP CAP Superior with 400 V.

Technical data:

• Impedance: 6 Ohm
• Sound pressure level (2.83V/1m): 90 dB
• Dimensions (HxWxD): 1050 x 158 x 258 mm
• Frequency range (-8dB): 50 - 17000 Hz
• Crossover frequency(s): 4000 Hz
• Principle: bass reflex box

Highlights

• 4x Monacor SP-60/4
• Monacor MPT-165 piezo tweeter
• 2x bass reflex tube HP50, 50x145 mm, black
• 0.5x PE foam sealing strip, 5x2 mm, roll 7.5 m
• 0.5x Sonofil insulation material 100 x 35 cm for 20 liters
• Audaphon Damping 10, 970 x 470 mm, self-adhesive
• Pole terminals PK31, one pair, gold-plated, red+black
• 3m speaker cable 2x1.5 mm2, transparent
• 2.5x pan screws 4x20 black, Torx, 8 pieces
• Construction plan for the kit the crossover components (right), to be assembled on a wooden board.
• Audaphon MKP CAP Superior 1.0 μF / 400 Vdc
• Audaphon MKP CAP Superior 3.3 μF / 400 Vdc
• Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
• Smooth electrolytic capacitor, 100uF / 50 Vdc
• Mundorf baked varnish air coil BL71, 0.47 mH/0.57 Ohm
• Mundorf baked varnish air coil BL100, 0.33 mH/0.26 Ohm
• Mundorf baked varnish air coil BL100, 0.82 mH/0.45 Ohm
• Mundorf baked varnish air coil BL100, 2.2 mH/0.83 Ohm
• Metal oxide resistor MOX10 10 Ohm (brown-black-black)
• 2x metal oxide resistor MOX5 15 Ohm (brown-green-black)
