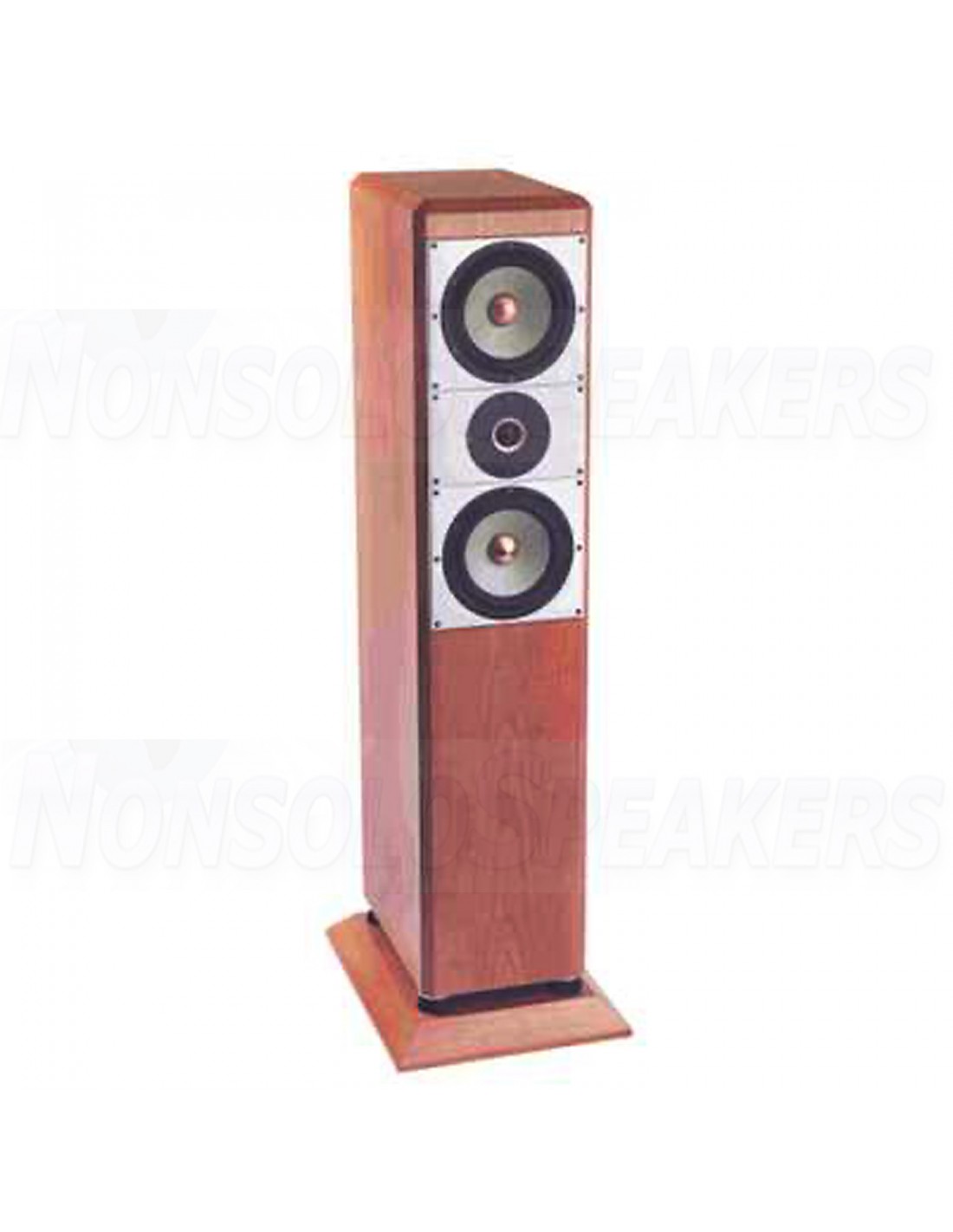

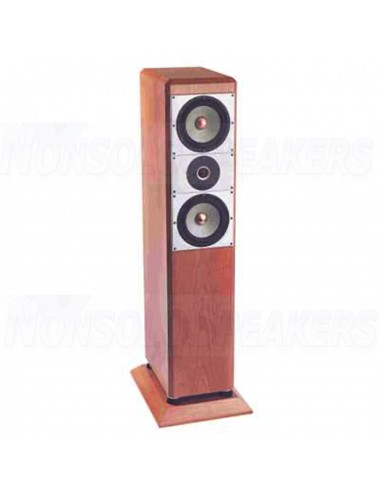

Excel Thor Evo 04 floorstanding speakers

Price per speaker (without housing)

Thor Evo 04 is a new highlight from Intertechnik, which further enhances the Thor kit, which is no longer available, with excellent accessories. These floor-standing speakers with excellent acoustic properties were developed by Dr. Joseph D'Appolito. Knowledge and a great deal of experience come together in this high-end speaker. The W 18 E001 and the T 25 CF002 used have already proven their performance in many individual tests. The two W 18 E001s impress with a very balanced frequency response and a powerful bass foundation. The tapered transmission channel ensures clean and impressive bass reproduction. The T 25 CF002 impresses with an absolutely precise response and resonance-free transmission behavior. Only first-class components were used to construct the crossover.

.

Technical data:

• Dimensions without base (height x width x depth): 1060 x 229 x 343 mm
• Power rating (nominal): 200 watts
• Average sound pressure level: 89 dB (1W/1m)
• Impedance: 4 ohms

Highlights

• Seas Excel, 25mm dome T25CF002 (E0011-06)
• 2x Seas Excel, 18cm woofer W18 E001
• ClarityCap PWA capacitor 2.2 μF / 400 Vdc
• ClarityCap PWA capacitor 47 μF / 160 Vdc
• ClarityCap ESA capacitor 5.6 μF / 630 Vdc
• ClarityCap ESA capacitor 15 μF / 630 Vdc
• Mundorf cfc copper foil coil, 0.15 mH
• Mundorf cfc copper foil coil, 0.22 mH
• Mundorf cfc copper foil coil, 0.27 mH
• Mundorf cfc copper foil coil, 1.0 mH
• MOX10 resistor 0.68 Ohm/10Watt (blue-gray-silver)
• MOX10 resistor 2.2 Ohm/10Watt (red-red-gold)
• MOX10 resistor 3.9 Ohm/10Watt (orange-white-gold)
• MOX10 resistor 4.7 Ohm/10Watt (yellow-violet-gold)
• PE foam sealing strip, 5x2 mm, roll 7.5 m
• 3x Sonofil insulation material 100 x 35 cm for 20 liters
• Biwiring terminal T122 Au with gold-plated brass terminals
• 3x Inakustik Premium LS Siver speaker cable 2x2.5mm2, silver-plated
• Pan screws 3.5x17 black, 4 pieces
• Pan screws 4x20 black, 16 pieces
• Construction plan for the kit
