Celestion Cinecor L Floorstanding speakers from K+T 5/2021

Kit without housing, price per speaker

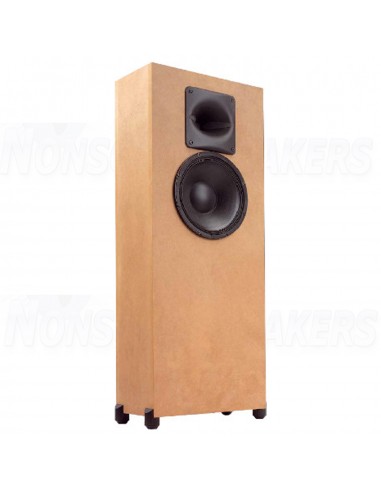

Cinecor L is a two-way floorstanding loudspeaker for high volumes. Cinecor L is a bass reflex loudspeaker with chassis from Celestion and Wavecor. The loudspeaker contains the following chassis: - a tweeter horn with Celestion CDX1-1747 drive with Celestion H1-7050 - a PA woofer Wavecor WF259PA01 The loudspeaker was developed by Thomas Schmidt. The crossover consists of: - a 2nd order high pass (12 dB / octave) for the tweeter. - a 3rd order low pass (18 dB / octave) for the woofer. The frequency response of the loudspeaker is balanced. The decay spectrum is almost flawless. The nonlinear distortions at high volumes (95 dB, 1 m) are below 0.8% above 300 Hz and remain below 2.3% in the audible range even at extremely high levels (105 dB, 1 m).

.

Technical data:

• Impedance: 6 Ohm
• Sound pressure level (2.83V/1m): 92 dB
• Dimensions (HxWxD): 1000 x 400 x 200 mm
• Frequency range (-8dB): 30 - 21000 Hz
• Crossover frequency(s): 1800 Hz
• Principle: bass reflex box

.

• Wavecor WF259PA01, 8 Ohm, PA woofer
• Celestion CDX1-1747, 1.75 inch Kapton driver
• Celestion H1-7050 NoBell horn, aluminum, 70x50 (T5134)
• Bass reflex tube HP100, 100x197 mm, black
• 0.5x PE foam sealing strip, 5x2 mm, roll 7.5 m
• 2x Sonofil insulation material 100 x 35 cm for 20 liters
• Convoluted foam panels N25 97.5x49x4cm anthracite/black
• Pole terminals PK31, one pair, gold-plated, red+black
• 2m speaker cable 2x1.5 mm2, transparent
• 1.5x Allen wood screws 5x30mm, black 8 pieces
• Construction plan for the kit
• Audaphon MKP CAP Superior 3.3 μF / 400 Vdc
• Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
• Audaphon MKT Capacitor 15 μF / 160 Vdc
• 1.0 mm air coil, 0.47 mH/0.32 Ohm
• 1.0 mm air coil, 0.68 mH/0.39 Ohm
• 1.3 mm air coil, 0.68 mH/0.22 Ohm
• 1.3 mm air coil, 2.2 mH/0.48 Ohm
• Ceramic resistor 15 Ohm/20 Watt
• Metal oxide resistor MOX10 10 Ohm (brown-black-black)
• Metal oxide resistor MOX10 15 Ohm (brown-green-black)
