Celestion Celeste Satellit Floorstanding speakers in Hobby Hifi 6/2013

Kit without housing, price per speaker

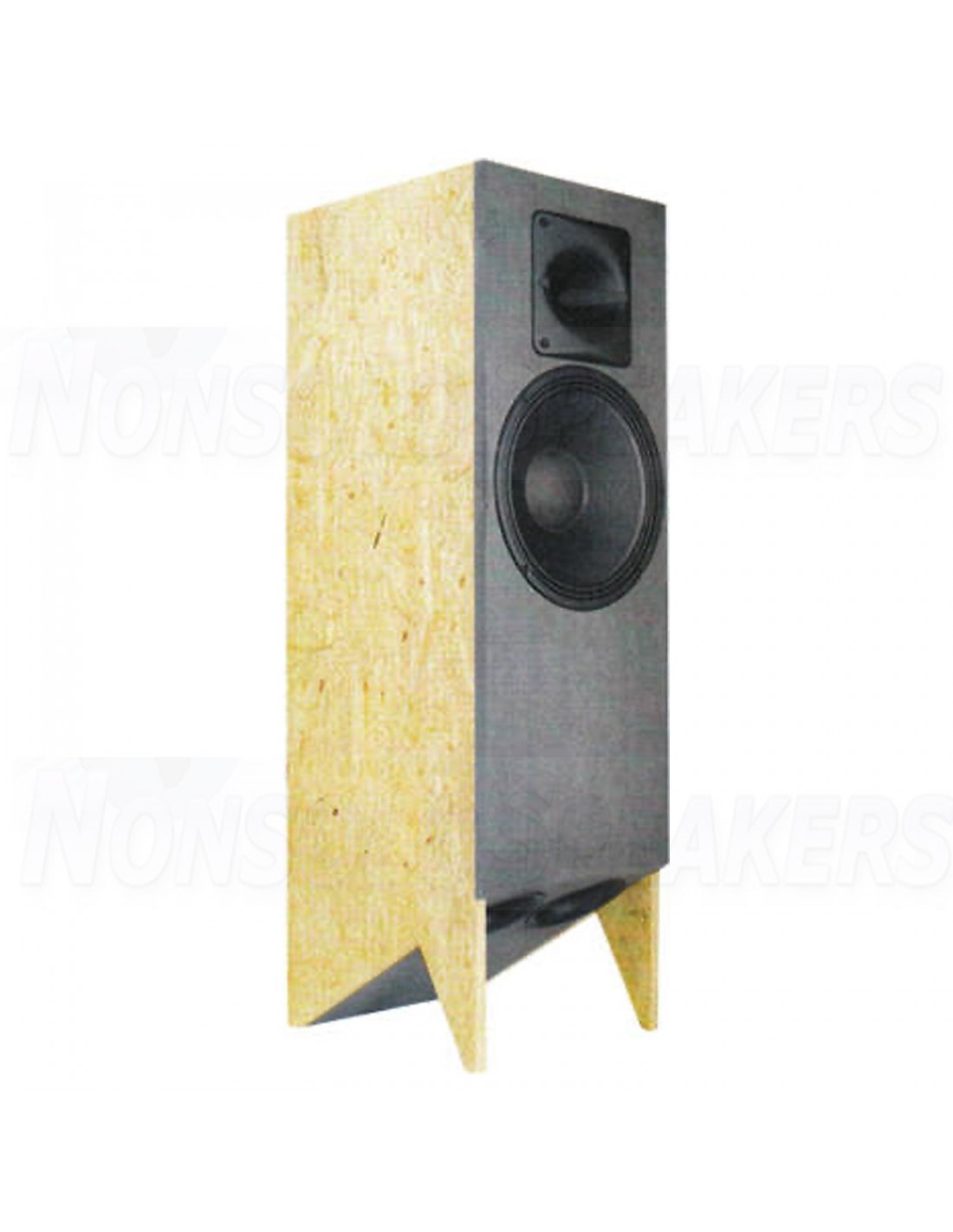

Celeste (Italian for heavenly) was derived from the name of the chassis manufacturer "Celestion". The kit developed by Bernd Timmermanns contains a Celestion bass driver, which performed excellently in the chassis test. A Celestion CDX1-1430 tweeter with Monacor horn is used as an accompaniment. These loudspeaker chassis, developed for professional sound reinforcement (PA), then show a high efficiency for HiFi loudspeakers of 92 dB (2.83V, 1m) in the full-range Celeste. The Celeste satellite described here has 95 dB efficiency. However, its frequency response is limited: It transmits in a smaller housing from 110 Hz in the same housing as the full-range loudspeaker from 80 Hz. To achieve 95 dB (2.83V, 1m) efficiency, Bernd Timmermanns uses a 2nd order crossover (12 dB/octave slope). Parallel to the tweeter driver, a suction circuit suppresses unwanted exaggerations. The loudspeaker box can be set up as a 90-liter bass reflex box, with the two bass reflex openings at the bottom radiating diagonally towards the floor, or as a much smaller closed box, which then only transmits from 110 Hz.

.

Technical data:

• Impedance: 6 Ohm

• Sound pressure level (2.83V/1m): 92 dB
• Dimensions (HxWxD): 1100 x 340 x 400 mm
• Frequency range (-8dB): 80 - 20000 Hz
• Crossover frequency(s): 2500 Hz
• Principle: bass reflex box

.

• Monacor PA horn MRH-180
• Celestion CDX1-1430 driver
• Celestion TF1225
• 2x bass reflex tube HP100, 100x200 mm, black
• 5.5x insulation fleece MT Bondum 800 (30 x 50 x 2 cm)
• PE foam sealing strip, 5x2 mm
• 3x insulation material Sonofil 100 x 35 cm for 20 liters
• Pole terminals PK31, gold-plated, red+black
• 3m speaker cable 2x1.5 mm2, transparent
• Allen wood screws 5x30mm, 8 pieces
• Construction plan for the kit the crossover components (right), to be assembled on a wooden board.
• Audaphon MKP CAP Superior 2.7 μF / 400 Vdc
• Audaphon MKP CAP Superior 3.3 μF / 400 Vdc
• Audaphon MKP CAP Superior 8.2 μF / 400 Vdc
• 0.7 mm air coil, 0.22 mH/0.39 Ohm
• 0.7 mm air coil, 0.39 mH/0.49 Ohm
• 1.4 mm air coil, 2.2 mH/0.46 Ohm
• Metal oxide resistor MOX10 2.7 Ohm (red-violet-gold)
• Metal oxide resistor MOX10 8.2 Ohm (gray-red-gold)
