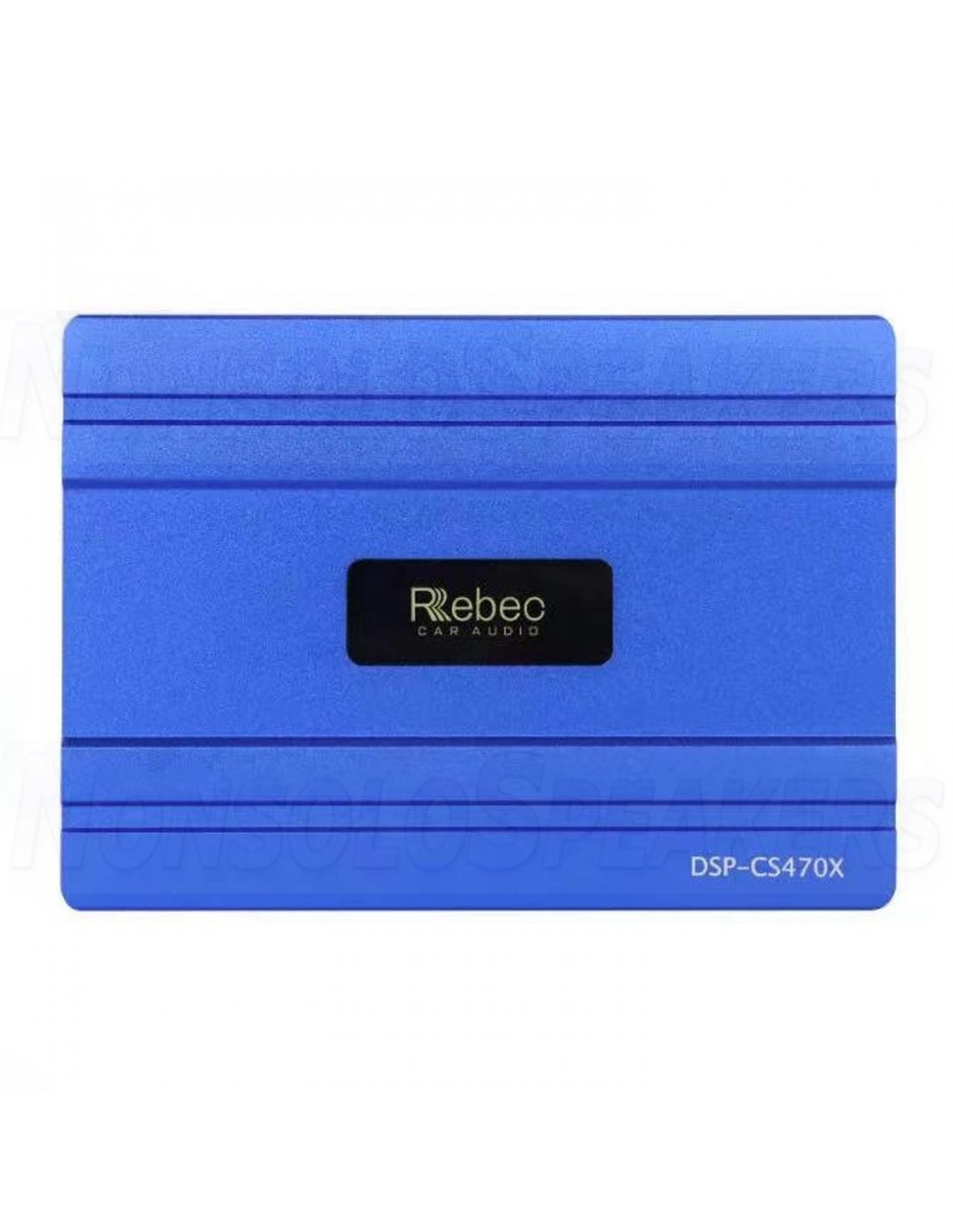

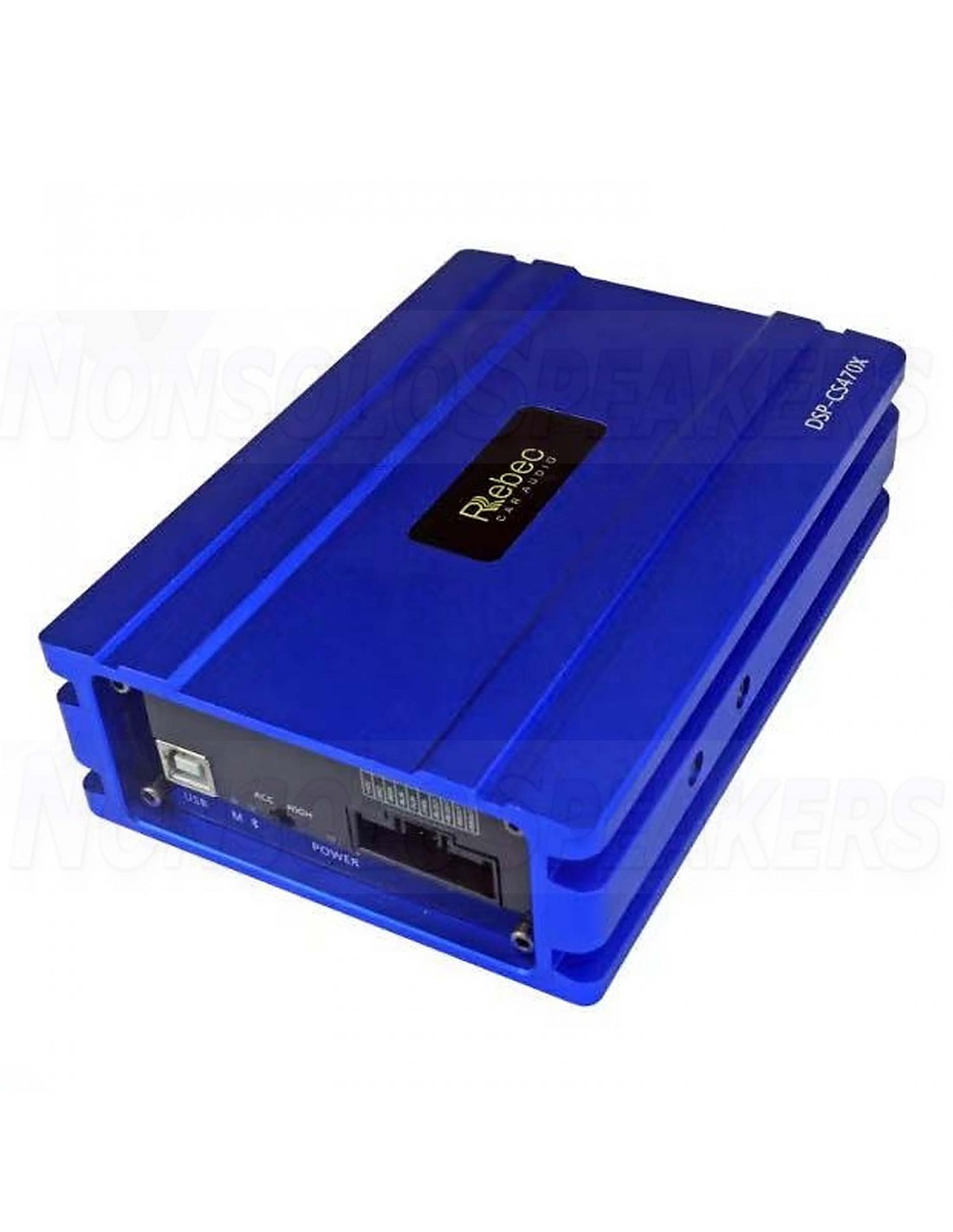

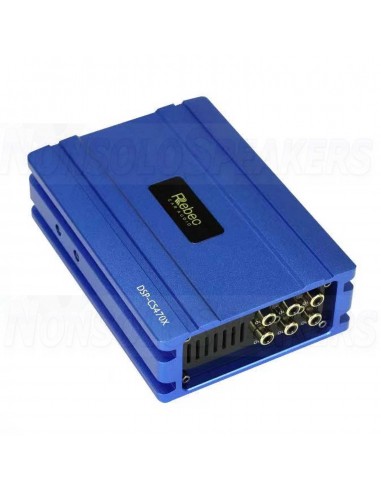

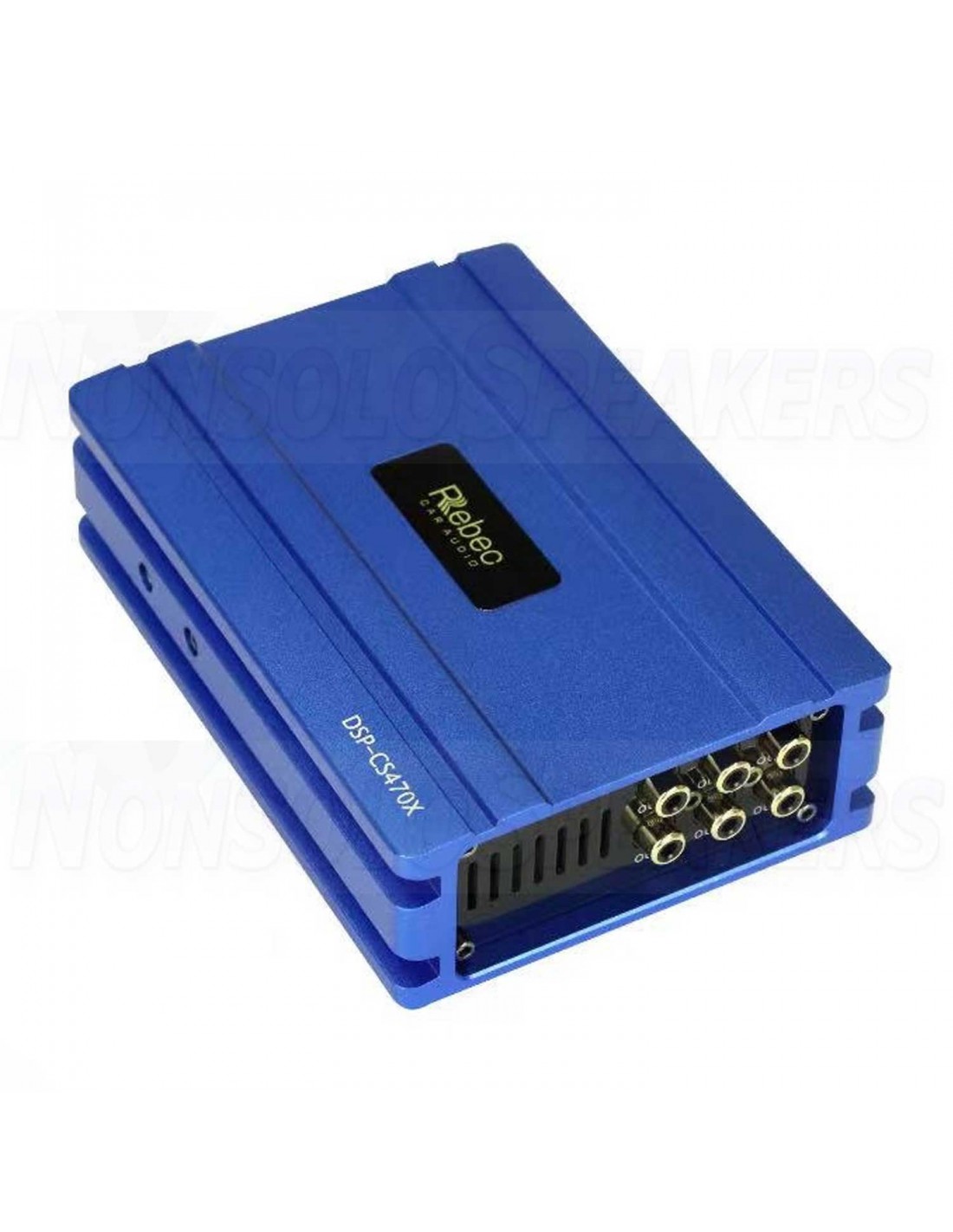

Rebec CS470X 6 channel DSP

The Rebec DSP-CS470X is a compact (19 x 14cm) DSP amplifier that can be connected to the car's original stereo. With the amplifier's built-in Bluetooth, you can stream music from your phone directly to the amplifier if the car's original does not have this function.

The amplifier offers 4 x 50W power for a load of four ohms or alternatively 4 x 65 W for a load of two ohms.

The amplifier also has RCA line outputs for six channels (and a six-channel processor), so you can e.g. connect a separate amplifier to the subwoofer, and you can use Rebec's processor to do all the equalizers, time-delay adjustments and crossover filters required. of the subwoofer.

The processor is connected to the computer with a USB cable and you have a 31-band equalizer for all six channels. All channels have their own high-pass and low-pass filters with 12/18/24/30db gradients, and all channels have their own time delay controls. In addition, you can adjust the Bluetooth input sensitivities and speaker level separately.

.

NOTE: The amplifier always requires a vehicle-specific Plug & Play cable kit, sold separately.

Amplifier power: 4 x 50W (4ohm) / 4 x 65W (2ohm)

RCA line outputs for six channels (2 volts)

Six-channel signal processor

Bluetooth music streaming

Playback range: 20Hz – 20kHz

A separate 31-band equalizer for each of the six channels

Each six channel has its own time delay settings (0-680cm / 0-20000ms)

Each six channel has its own low and high pass filters (20 – 20,000 Hz)

Steepness: 12 / 18 / 24 / 30dB

Signal to Noise Ratio: 99dB Harmonic Distortion: <0.01% <0.03%

Connection: USB-A -> USB-B (cable included)

Dimensions: 190mm x 137.6mm x 36.6mm

What is Rebec Plug & Play wiring?

The Rebec wiring harness is connected between the car's original stereo and the wiring harness to the car's original stereo. The cable network carries the speaker signal from the car's original player to the amplifier, from where the speaker signal is amplified and adjusted by the processor back to the car's speakers.
