Dayton Audio A400 Stereo Amplifier

.

Product description

The Dayton Audio A400 Amplifier delivers high-quality sound through superior performance and great value, offering up to 300 watts per channel or 600 watts peak power at 4 ohms, with the ability to deliver 1200 watts peak when bridged. It ensures cool, quiet operation during lengthy listening sessions and provides flexible connections, supporting both RCA and XLR through gold-plated ports, while allowing complex configurations with multiple amplifiers. Integrating seamlessly into any home audio setup with its brushed aluminum faceplate and oversized knob, it offers universal compatibility, syncs power with other equipment, and can disable the front LED for distraction-free viewing, making it a remarkable upgrade to any sound system.

.

Highlights

Ability to deliver up to 300W RMS per channel or up to 700W peak when bridged

Class AB topology for cleaner, crisper sound with remarkably low distortion

Easy switch between balanced and unbalanced inputs supporting both RCA and XLR

12V trigger inputs and outputs compatible with all power triggering systems

Universal compatibility operating at either 115 or 220 volts

Unique symmetrical circuit design and transformer placement for balanced audio

Heavy-duty gold-plated connections and chainable inputs for complex configurations

.

Product details

Dayton Audio A400 Stereo Amplifier

Experience true hi-end power in your entertainment system with our new A400 Amplifier. Seamlessly blending top-notch functionality and specs with great value, this piece is set to change the way you experience home cinema.

.

Specifications

Article number A400

Rated power output (RMS) 160W per channel into 8Ω and 300W per channel into 4Ω

Bridged power output (RMS) 500W

Minimum load 4Ω

Signal-to-noise ratio (SNR) 100dB

Frequency response 20Hz-20 Khz

Input sensitivity 470mV

Amplifier classification A/B

RCA in/out In

XLR in/out In

Power requirements 220V

Stand-by power consumption 27W

Dimensions (D x W x H) 17.47 (443.67 ) x 17 (433.4) x 5.97 (151.75) Inch (mm)

,

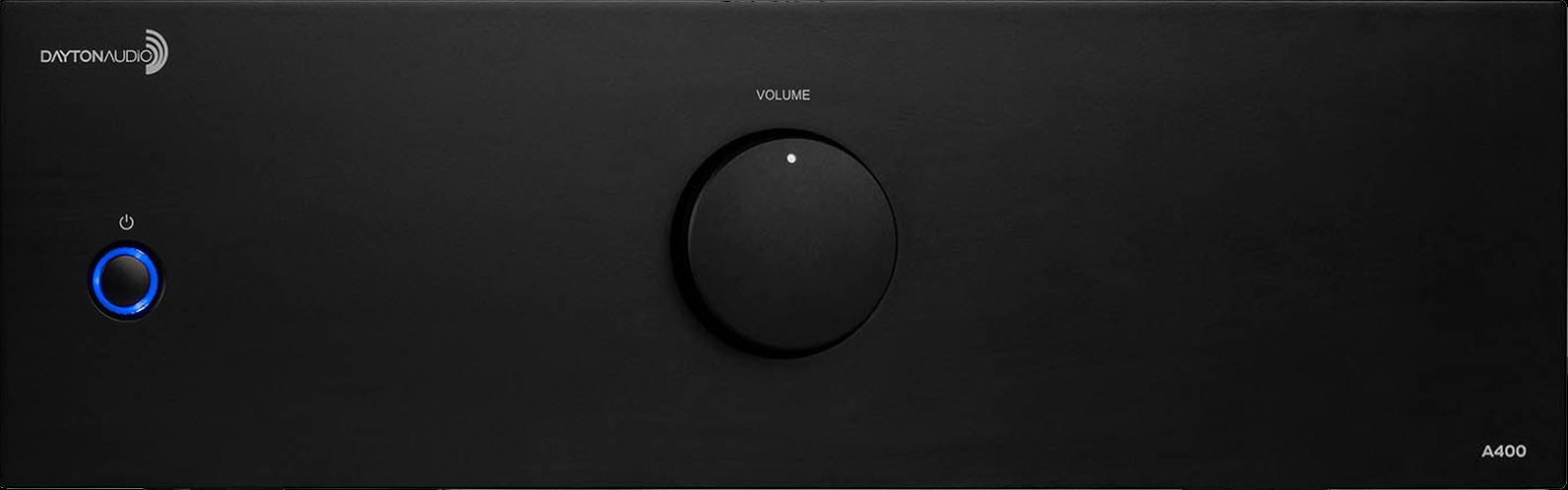

The A400 Amplifier makes an immediate visual impact with its classic, yet contemporary aesthetics. Crafted with an emphasis on simplicity and elegance, it adds a touch of sophistication to any space. The faceplate, fashioned from brushed aluminum, and oversized knob commands respect in a 3U package.

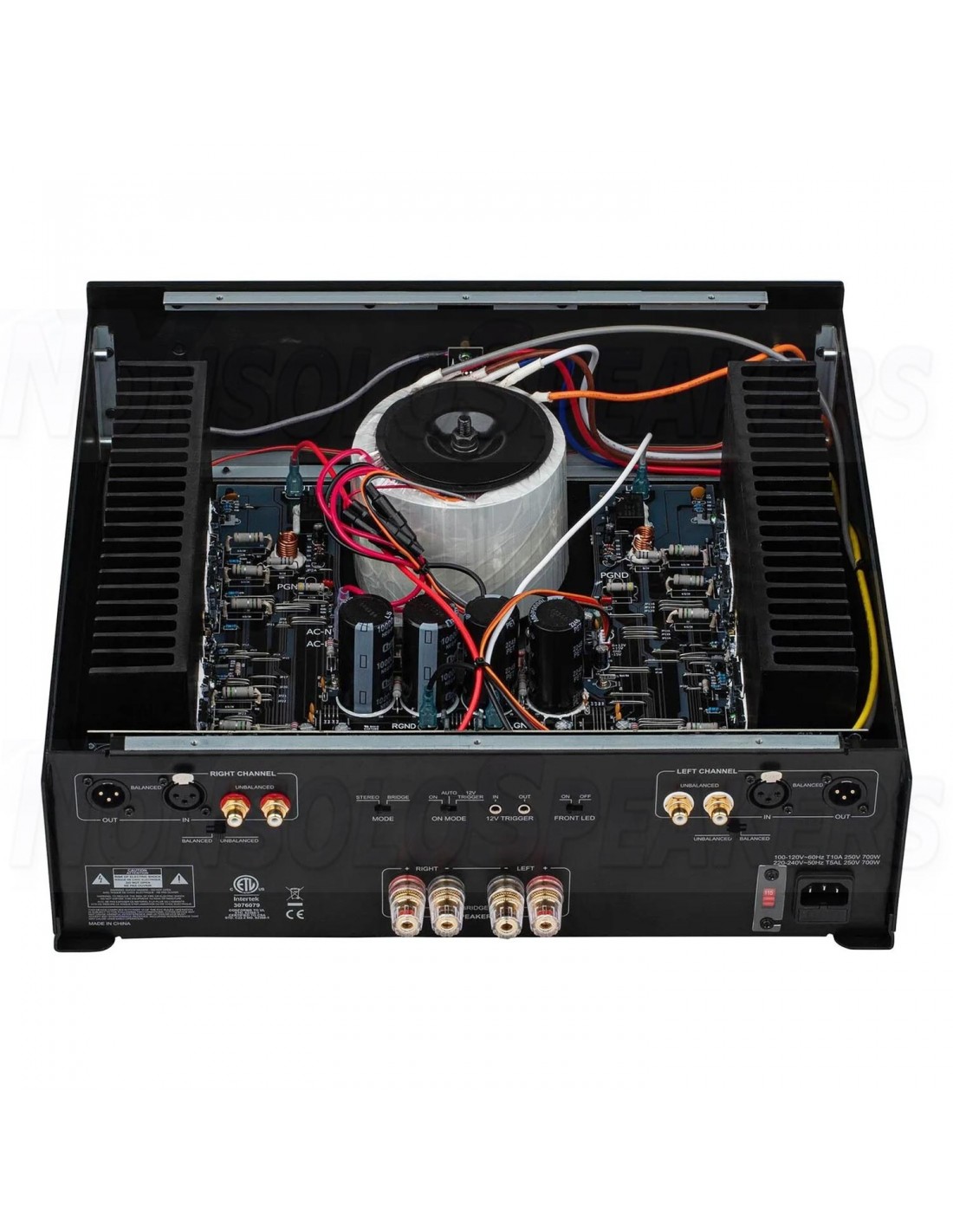

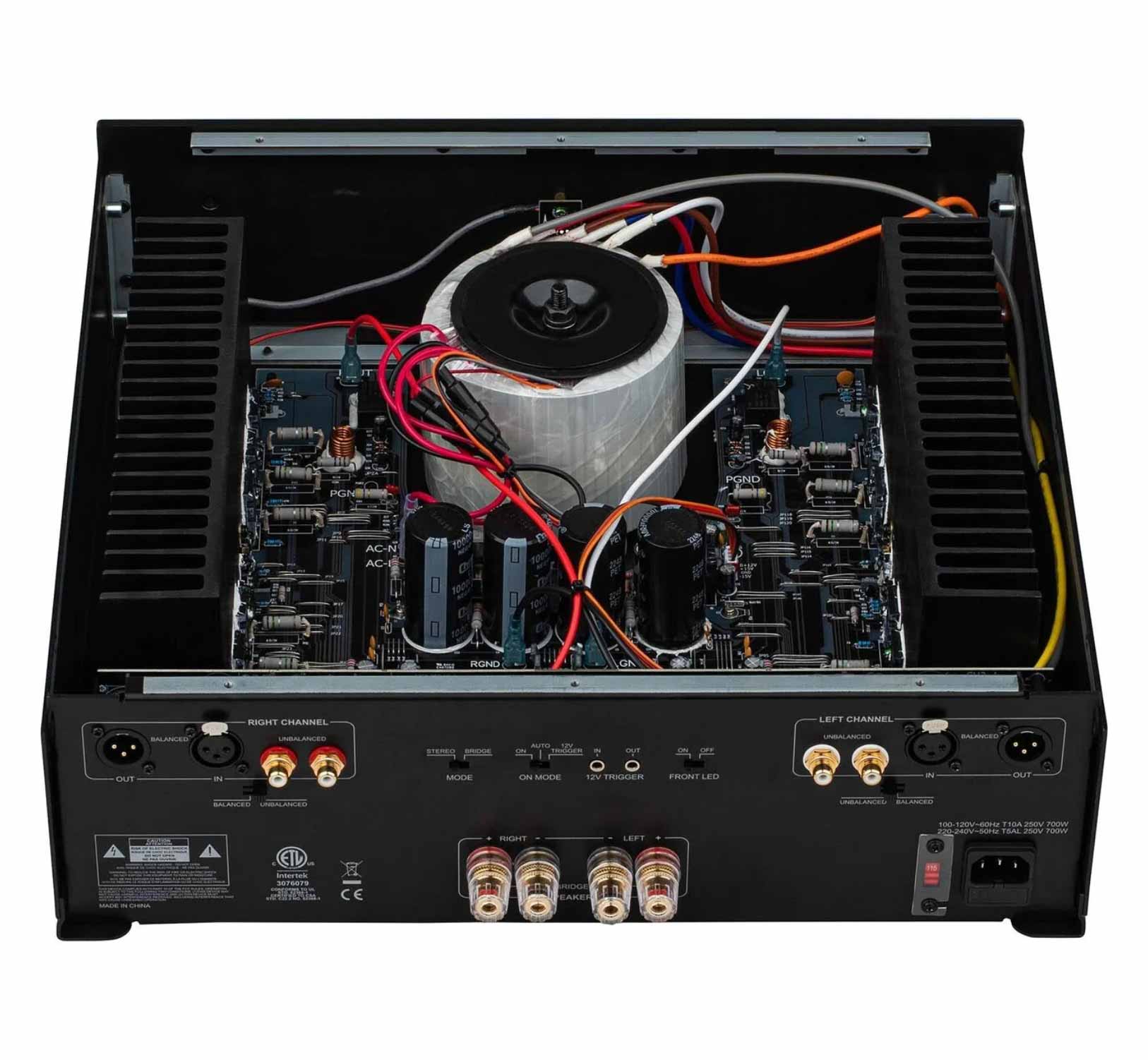

Built with a well-ventilated chassis, the A400 Amplifier runs cool even during extensive listening sessions and the unique symmetrical circuit design, and transformer placement, enhances balance and consistency in your audio experience, because of this, no noisy fan is required.

The Class AB topology of the A400 provides a 103dB Signal-to-Noise Ratio for cleaner, crisper sound, with a remarkably low %0.05 THD+N while providing up to 300W RMS per channel at 4 Ohms (600W Peak). For higher-powered use, the A400 can be bridged with the ability to deliver 1200W RMS mono at 4ohms.

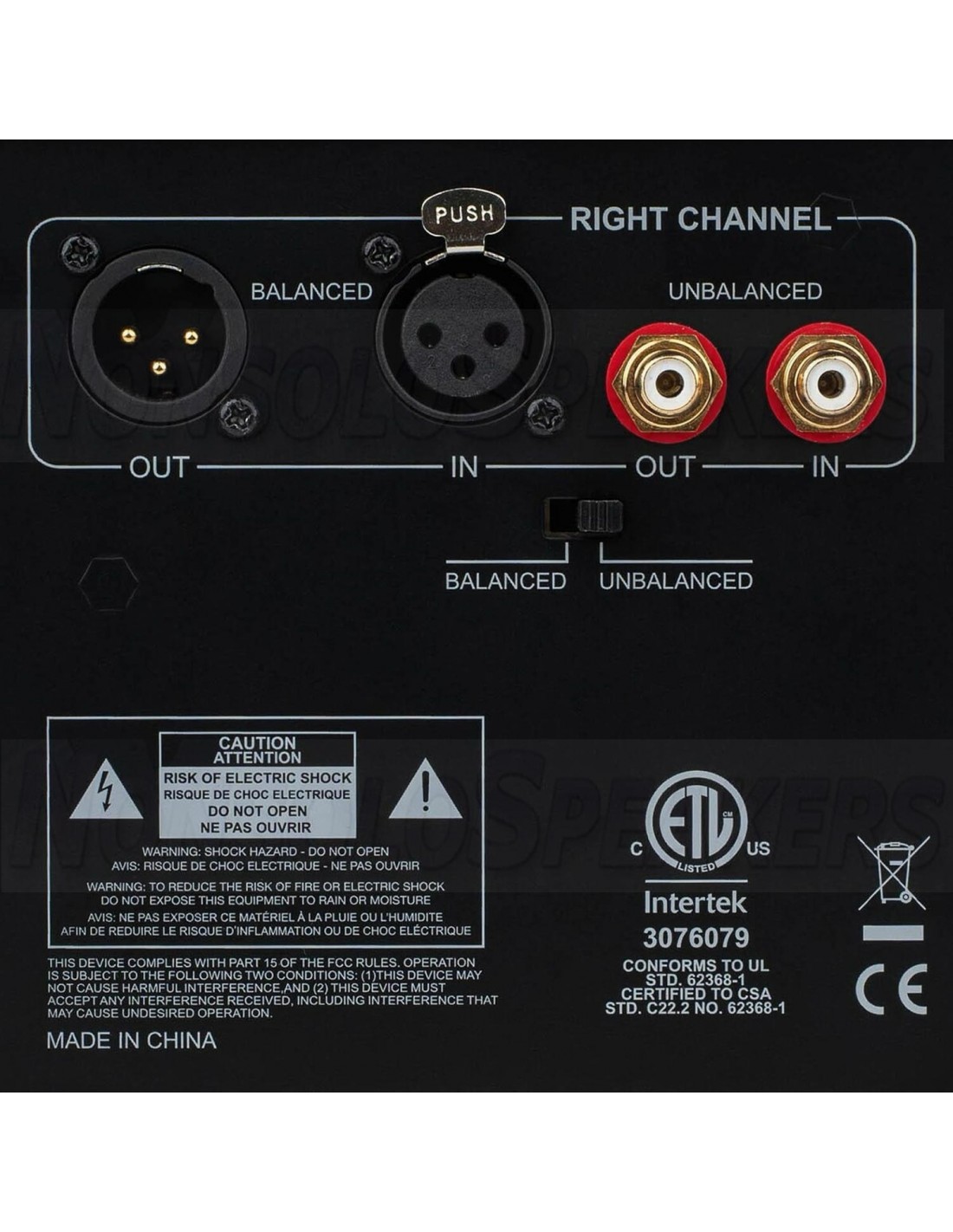

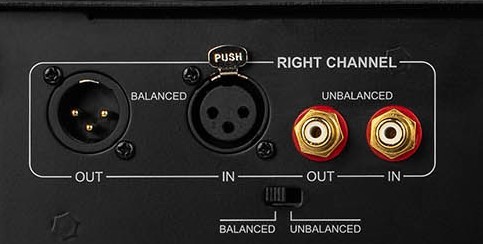

Versatile and professional, the A400 amplifier is designed to meet all your audio needs with ease. Building upon its exceptional performance, this amplifier offers a seamless switch between balanced and unbalanced inputs, accommodating both RCA and XLR connections effortlessly. Whether you prefer the convenience of RCA cables or the enhanced audio quality of XLR cables, the A400 has you covered.

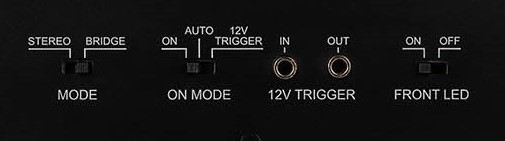

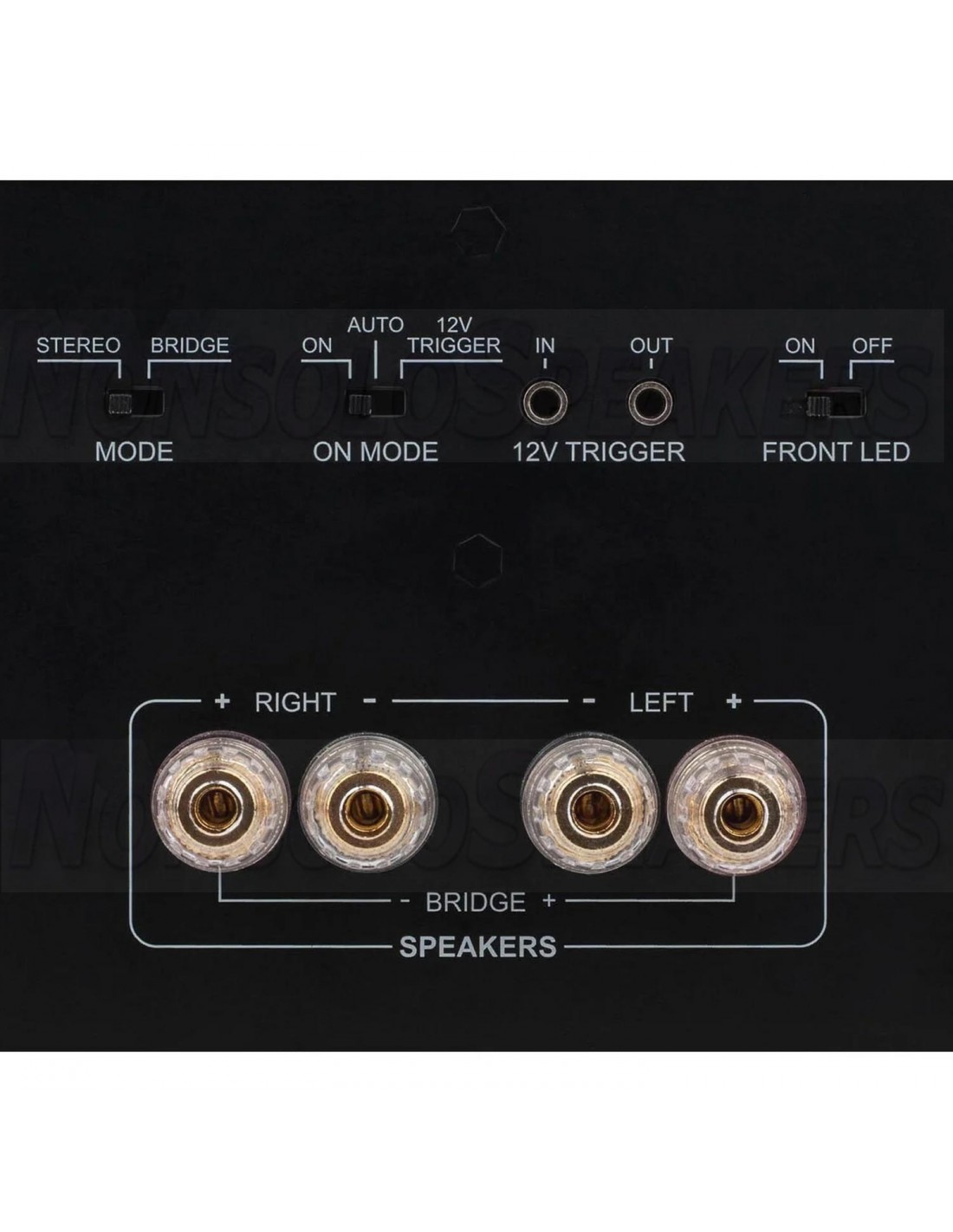

12V Trigger inputs and outputs allow seamless power management in your home theater. Our device is compatible across triggering systems, so you can easily integrate it without complications. We know bright lights can distract from movies, so we gave full control over the front LED power via a switch on the rear for undistracted enjoyment.

The A400 Amplifier combines functional design and superior sound quality in a straightforward and reliable package. Its advanced features, paired with a clean aesthetic, ensure it blends seamlessly into any home audio setup. Explore the A400, and experience the difference that a well-crafted amplifier can make in your audio journey.
