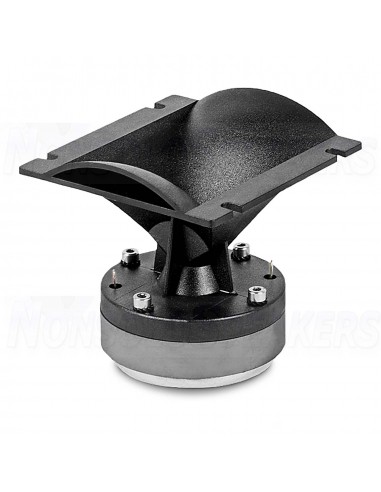

Beyma CP-09 1" 8ohm 104dB 15W Ferrite compression tweeter

This compression tweeter is a lightweight transducer suitable for use in professional environments. The sound transducer has a special aluminum voice coil winding and a CD horn (constant directivity). The voice coil is made of aluminum flat wire and is firmly glued to the aluminum membrane. The result is an extended frequency range and excellent fine resolution. The driver has a wide, precise dispersion pattern in the horizontal and vertical range (90° x 60°) and a balanced frequency response throughout its entire transmission range combined with an incredibly high sound pressure. The oscillation unit can be replaced on site without any soldering work.

.

Key Features:

• Excellent power handling: 15W AES
• High sensitivity: 104 dB @ 1 W @ 1 m
• Extended frequency range: 2 - 20 kHz
• Aluminum diaphragm 1” (25.4mm) aluminum voice coil
• Excellent transient response
• Constant directivity horn to achieve an extended
• Coverage angle: 90º x 60º

.

Technical Specifcations:

• Rated impedance 8Ω
• Minimum impedance 6.6Ω @ 7.5kHz
• D.C. resistance 5.2Ω
• Power capacity* 15W AES above 2.5 kHz
• Program power 30W above 2.5kHz
• Sensitivity** 104dB 1W @ 1m
• Frequency range 2 - 20 kHz
• Recommended crossover 6 kHz or higher (12 dB/oct min.)
• Voice coil diameter 25.4mm 1in
• Flux density 1.4T
• Bl factor 4 N/A

.

Mounting Information:

• Overall diameter 98x92mm 3.85x3.6in
• Baffle cutout dimensions 90x70mm 3.54x2.75in
• Depth 96mm 3.78in
• Net weight 0.60kg
• Shipping weight 0.70kg
