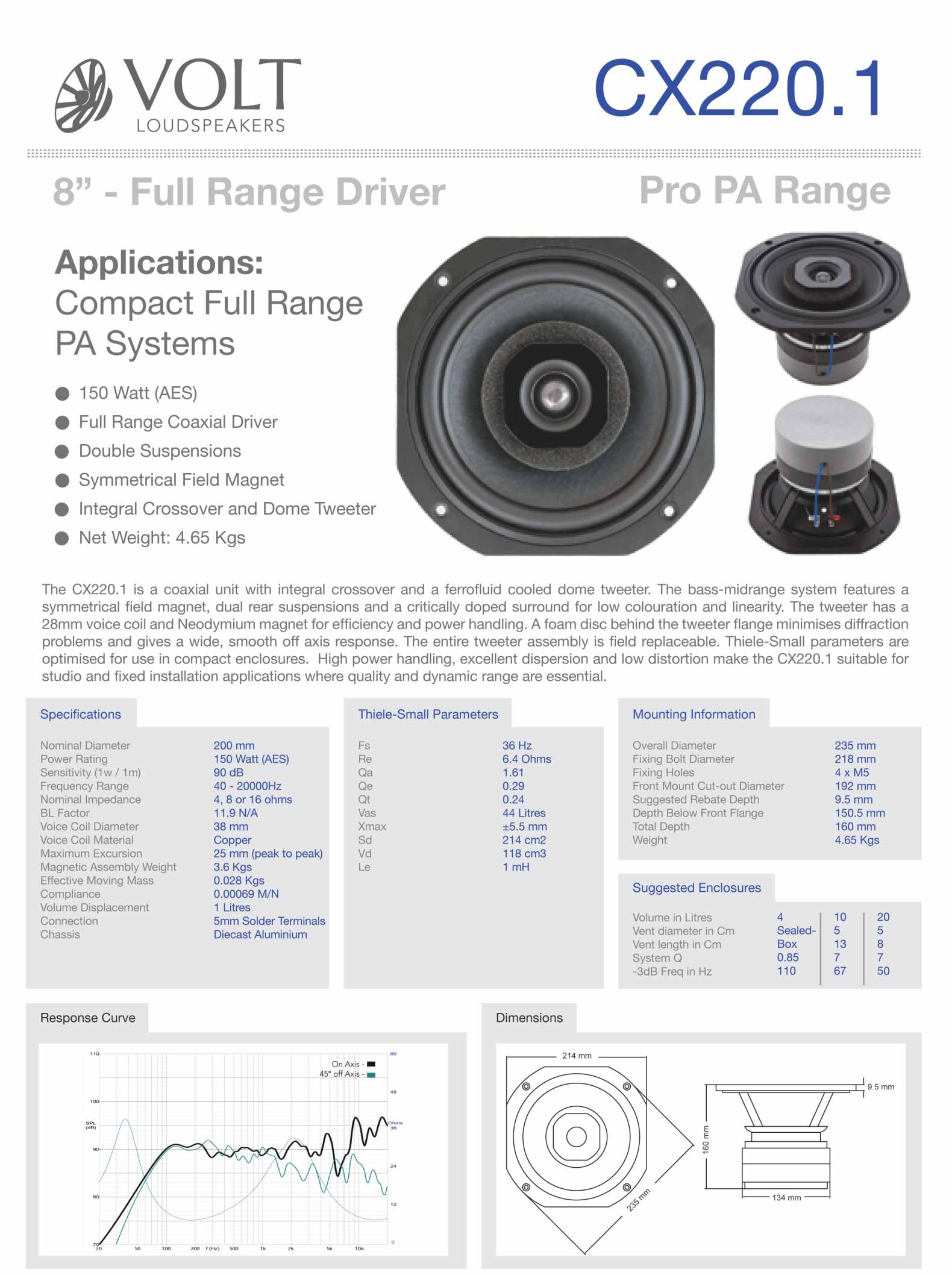

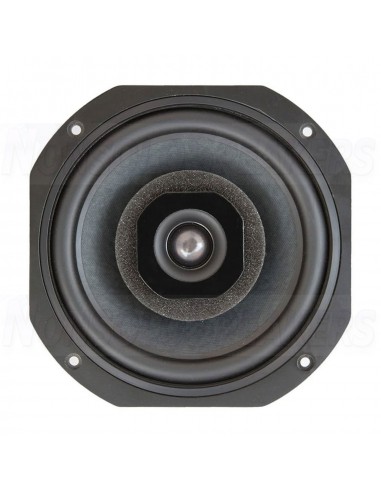

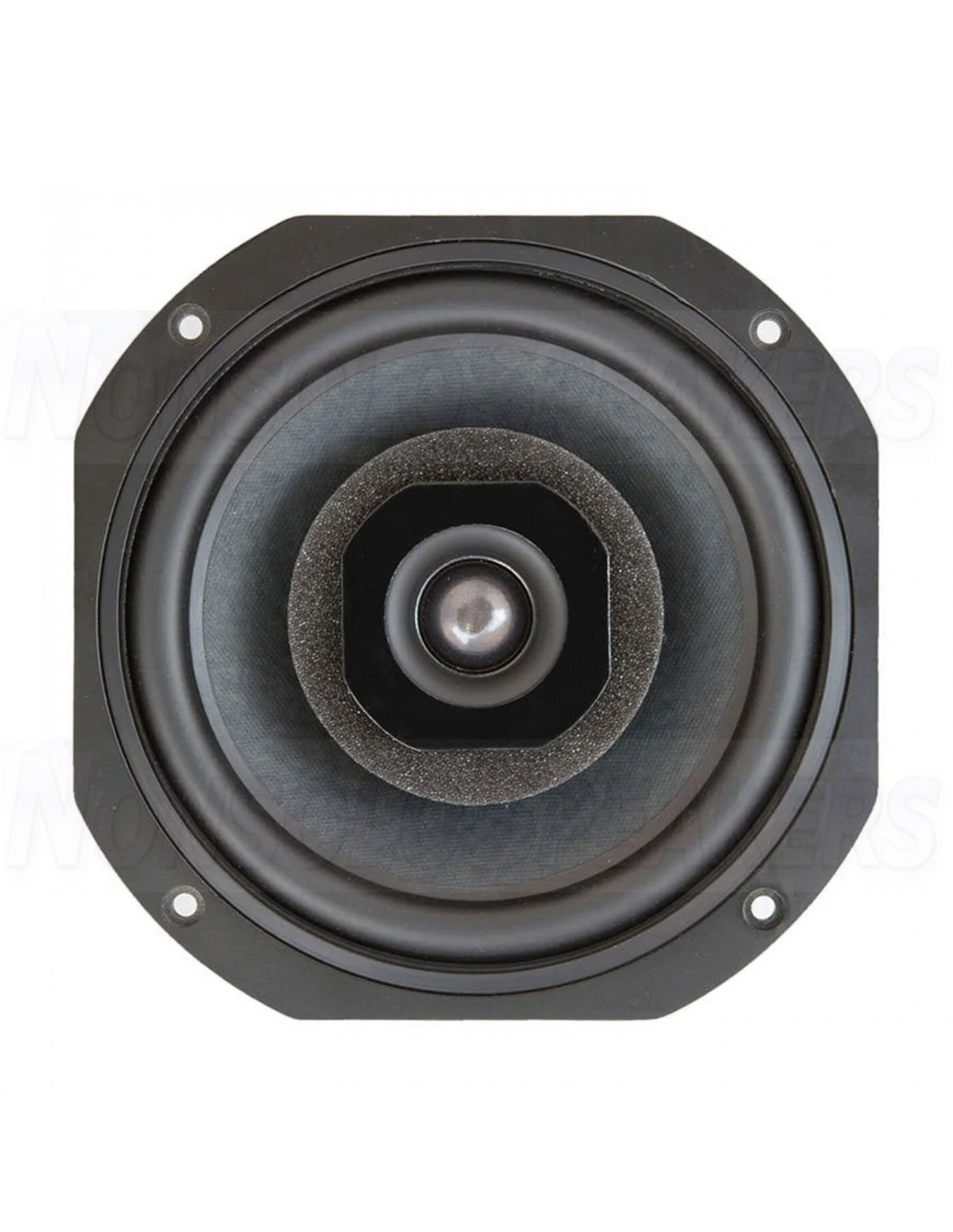

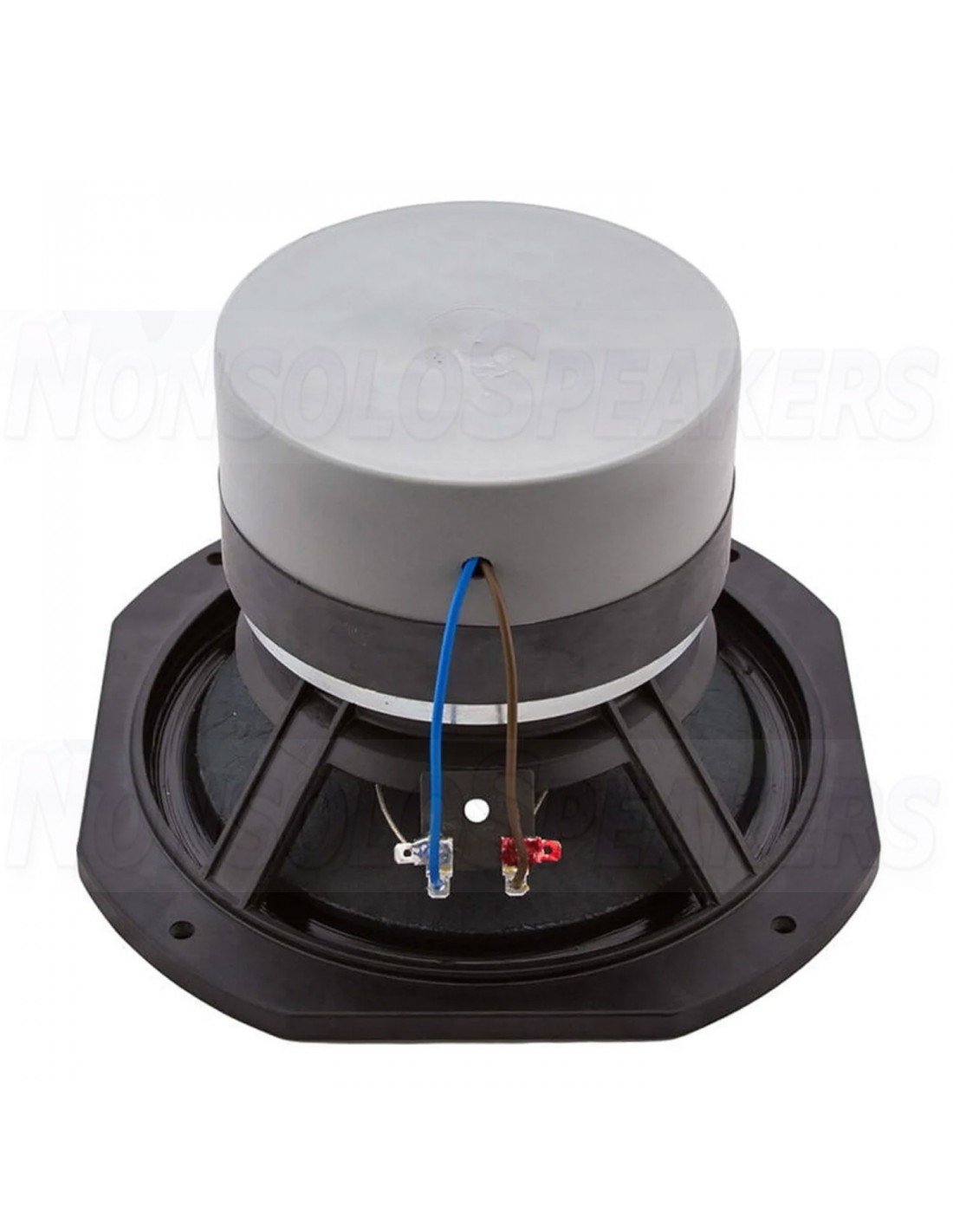

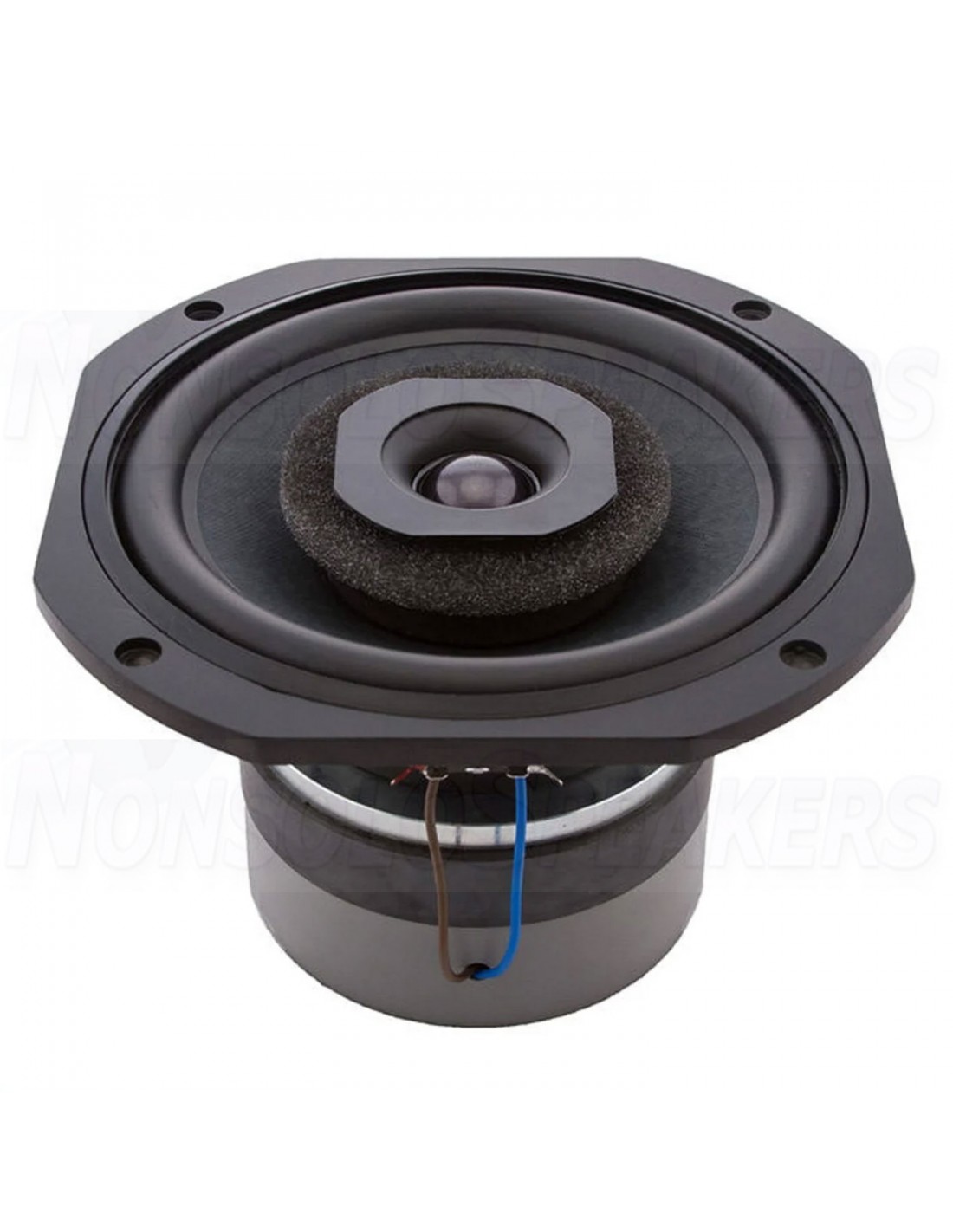

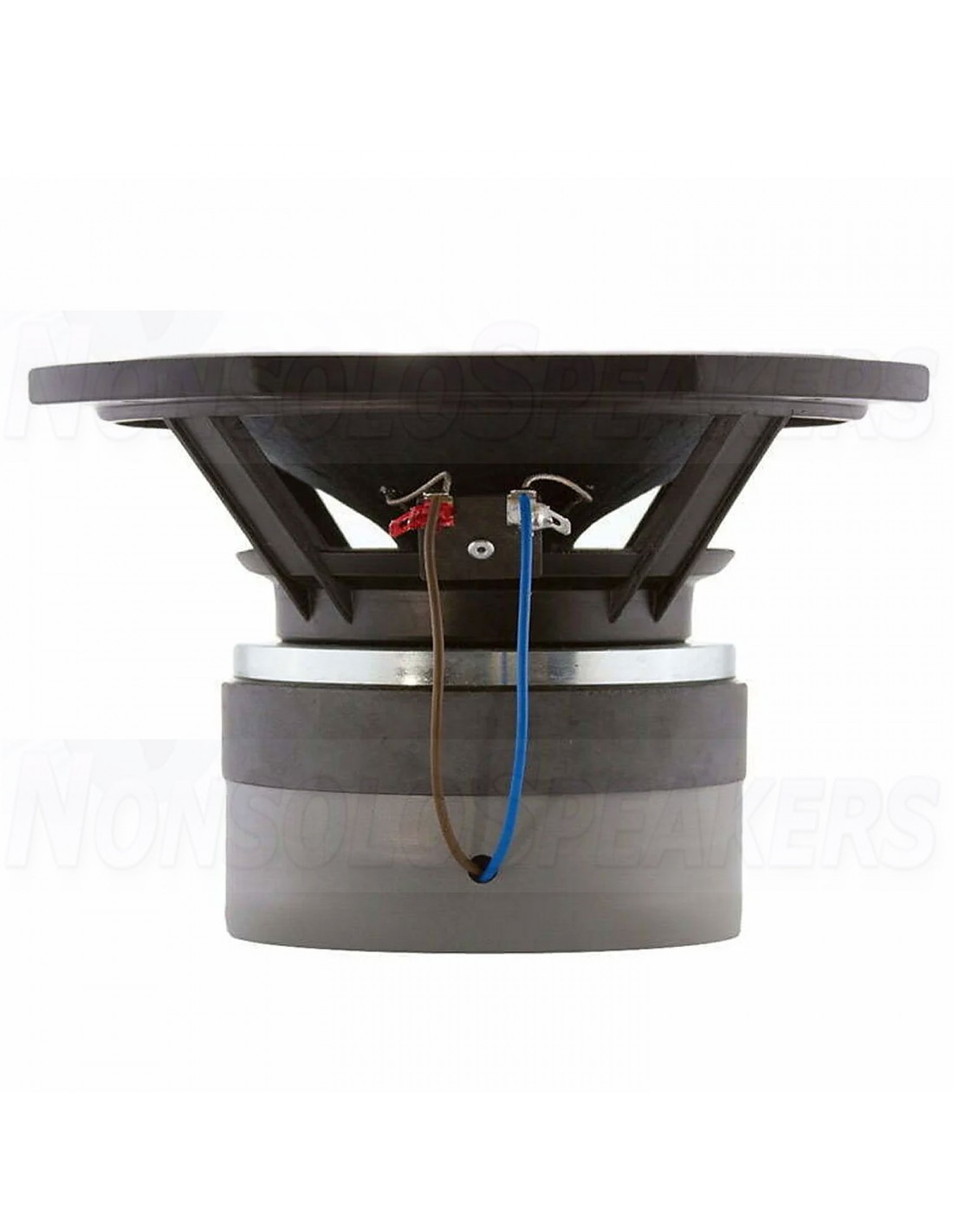

Volt Loudspeakers CX2201 8'' Coaxial Woofer 8 ohm

.

Product description

The Volt Loudspeakers CX2201 is an 8" coaxial woofer designed to deliver high-quality sound with excellent dispersion and low distortion. This driver is well-suited for both studio and fixed installation applications where dynamic range and sound quality are crucial.

.

Highlights

8" coaxial unit with integral crossover

Ferrofluid cooled 28mm dome tweeter

Symmetrical field magnet system for linearity

Dual rear suspensions for transient stability

Critically doped surround for low coloration

Neodymium magnet for efficiency and power handling

.

Product details

The CX2201 features an 8" bass-midrange system with a symmetrical field magnet and dual rear suspensions, providing linearity and low distortion. The 28mm dome tweeter is ferrofluid cooled and utilizes a neodymium magnet for enhanced efficiency and power handling. This coaxial driver includes an integral crossover, simplifying system integration and ensuring seamless audio performance. The tweeter assembly is field replaceable, offering ease of maintenance.

Operating within a frequency range of 40 to 20,000 Hz, the CX2201 has a sensitivity of 90 dB/W/m and a power handling capacity of 150 watts. It is available in 4, 8, or 16 ohm versions, providing versatility for different audio system requirements. The Thiele-Small parameters are optimized for compact enclosures, making it an excellent choice for space-limited setups​​.
