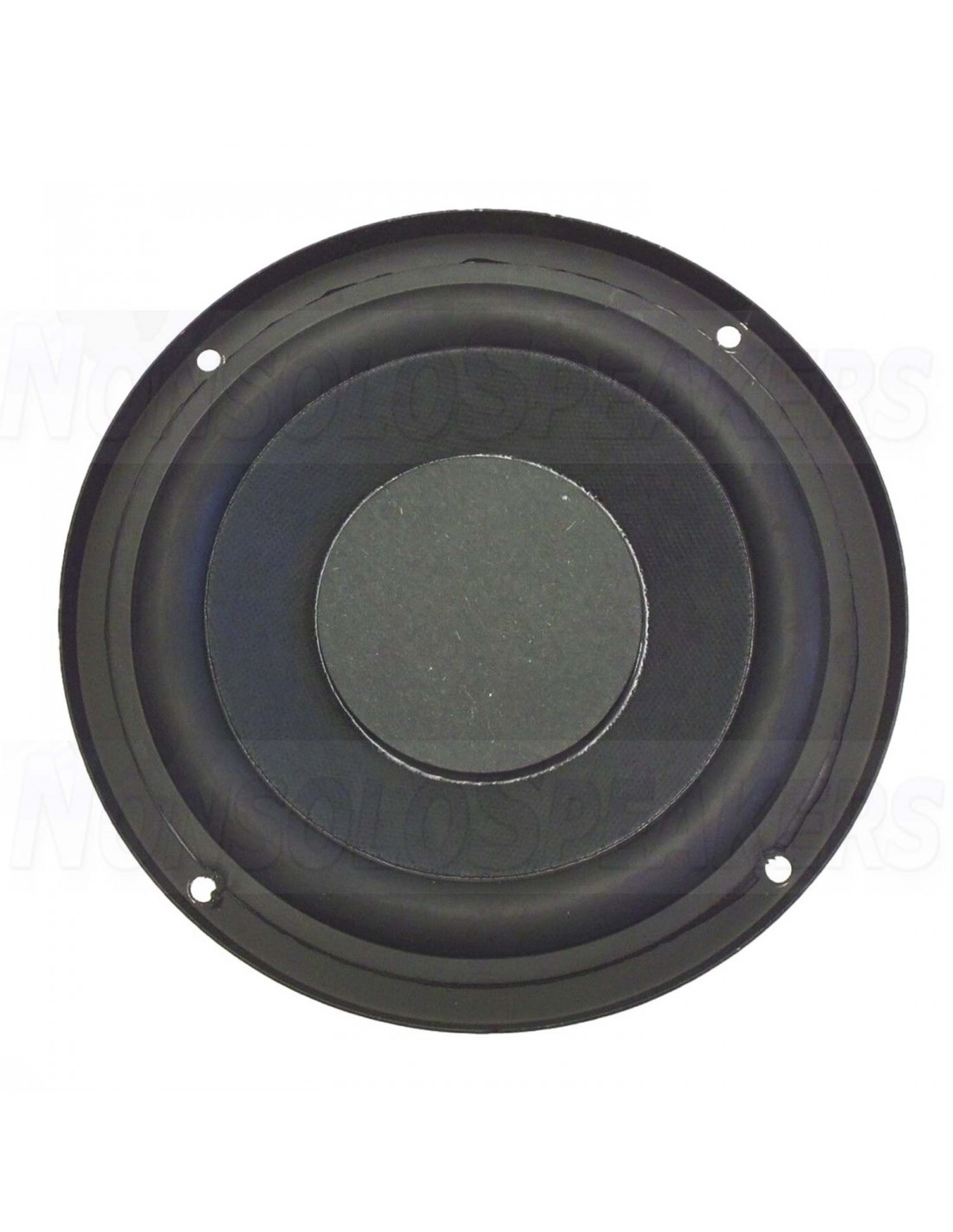

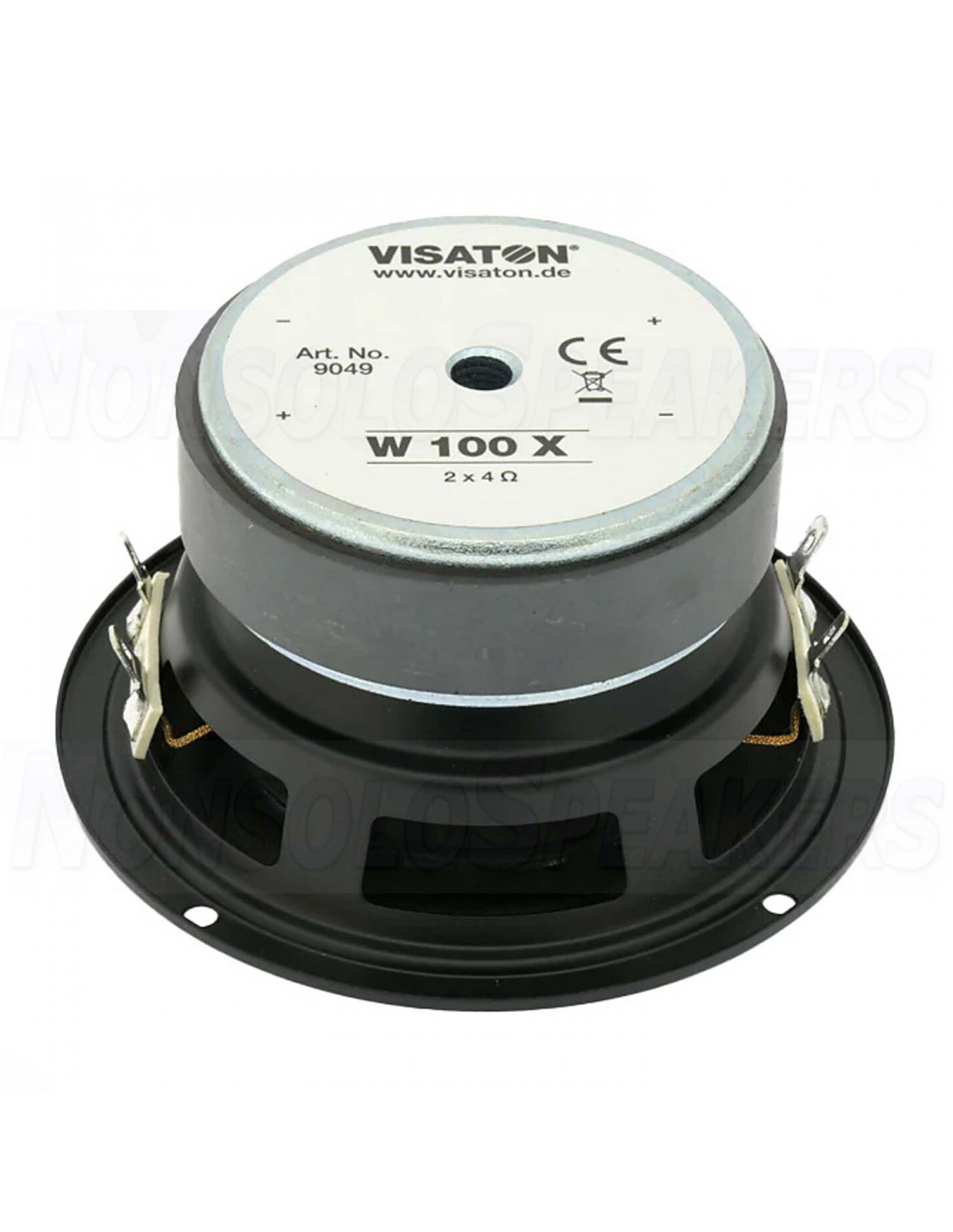

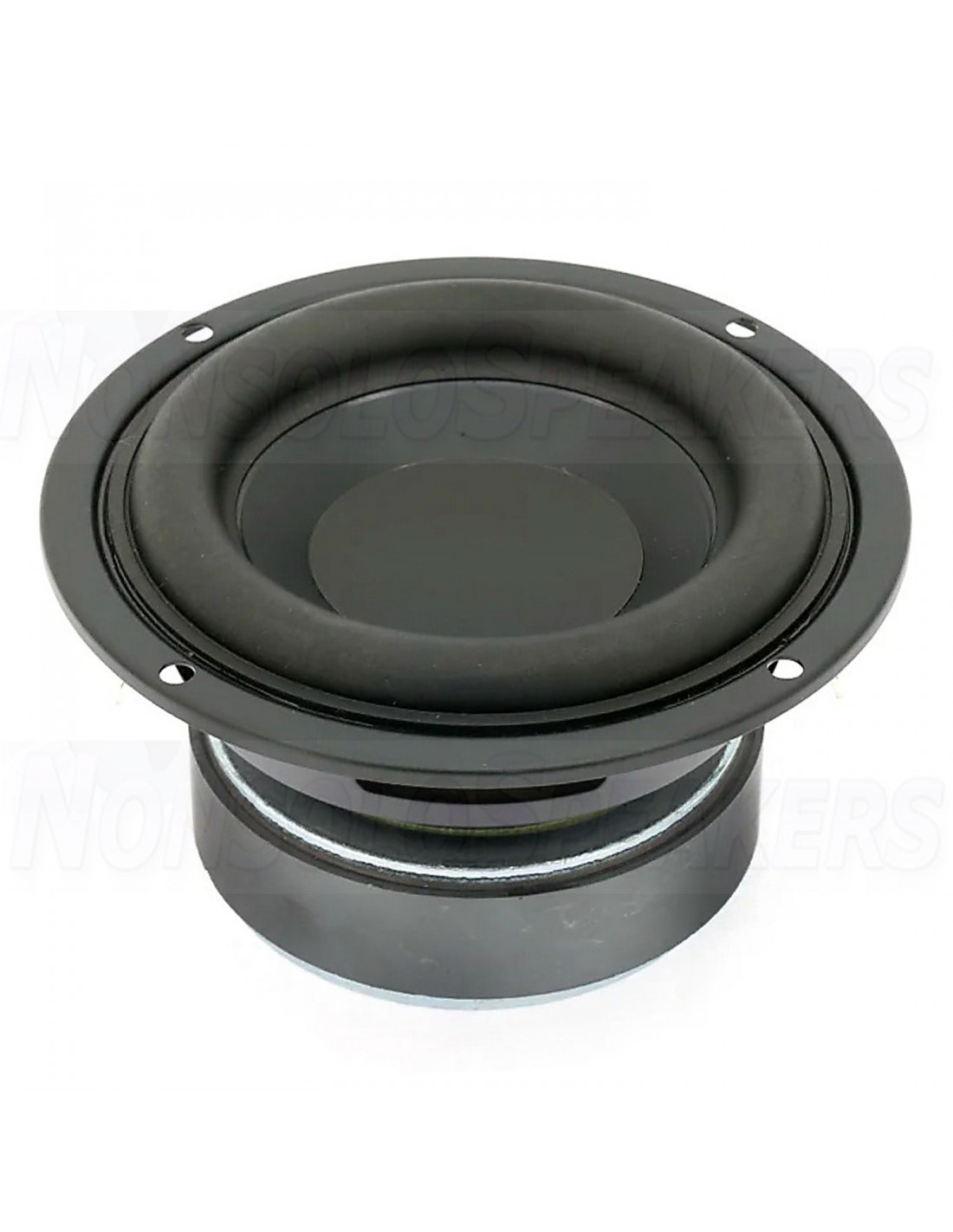

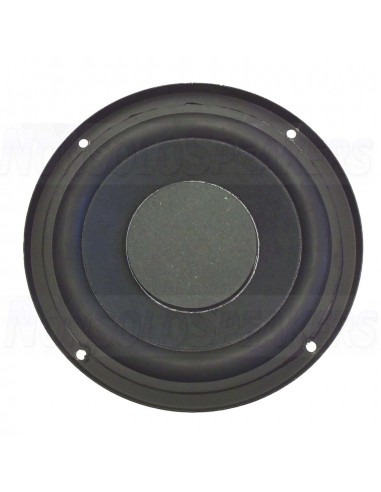

Visaton W 100 X Bass-midwoofer 4"

Introducing the VISATON W 100 X, a high-performance 10 cm (4”) woofer designed for optimal audio quality and versatility. Its compact size and advanced features make it an excellent choice for both hi-fi systems and industrial applications.

.

Highlights

• Low resonant frequency for superior bass performance
• Wide and elastic rubber surround for large excursion
• 2x4 Ohm dual voice coil for flexible impedance options
• Easy-to-install and visually appealing metal basket

.

Product Details

VISATON W 100 X Subwoofer

The VISATON W 100 X is a 10 cm (4”) woofer featuring a low resonant frequency and a compact design. Its wide and elastic rubber surround enables a large excursion, ensuring deep and accurate bass reproduction. The dual 2x4 Ohm voice coil allows for various impedance configurations (2, 4, and 8 Ohms), making it suitable for different audio setups, including stereo connections through car radio rear channels.

The W 100 X's metal basket is not only easy to install but also adds a touch of aesthetic appeal, making it a versatile subwoofer for high-fidelity audio and industrial use.

.

Technical data

• Rated power 40 W
• Impedance 2 x 4 Ω
• Mean sound pressure level 81 dB (1 W/1 m)
• Frequency response (–10 dB) 45–12000 Hz
• Resonant frequency 63 Hz
• Excursion limit xmech ± 7.5 mm
• Height of front pole-plate 3.5 mm
• Voice coil diameter 26 mm Ø
• Height of winding 10 mm
• Cut-out diameter 97 mm Ø
• Terminal 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (–)
• Net weight 0.76kg
