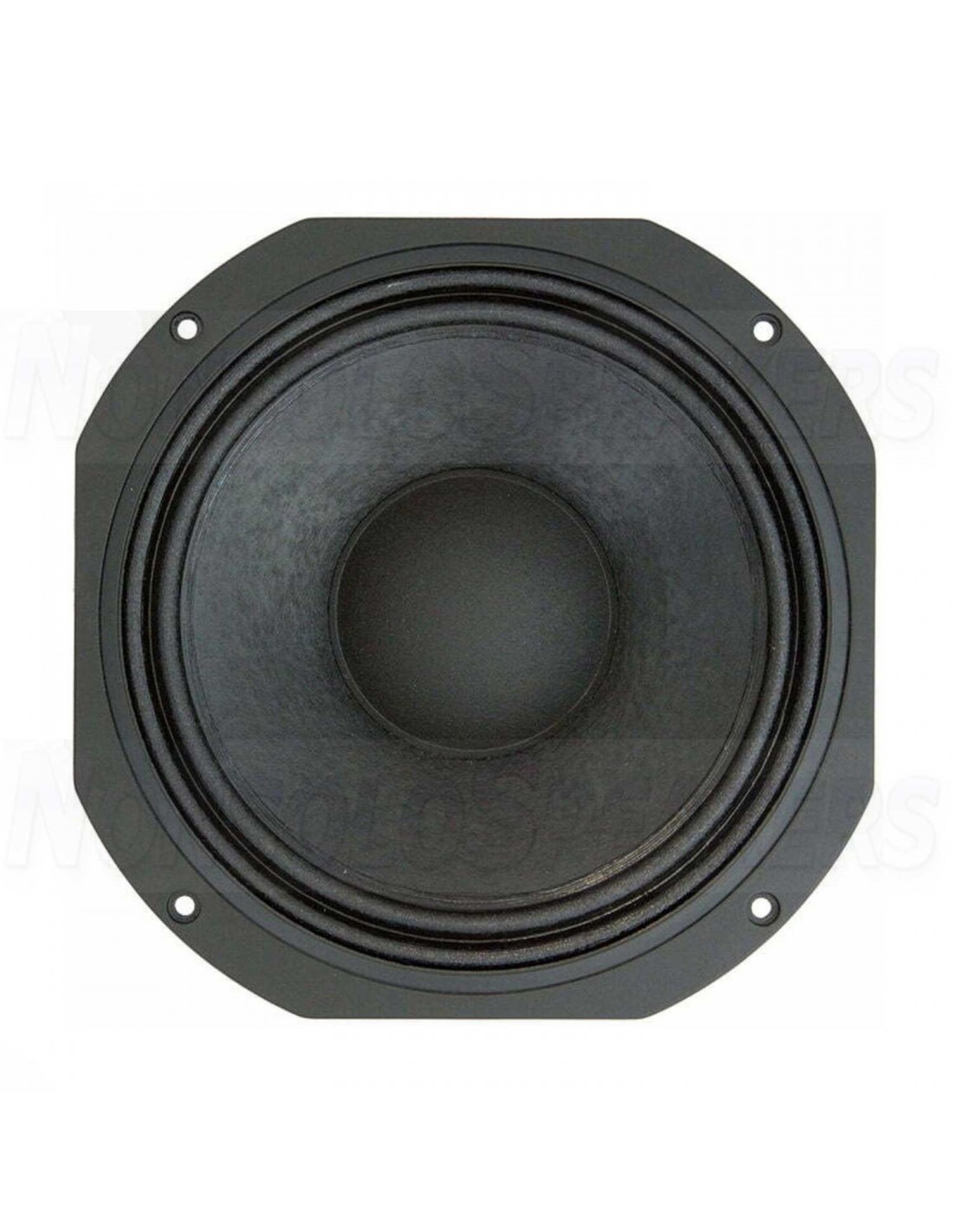

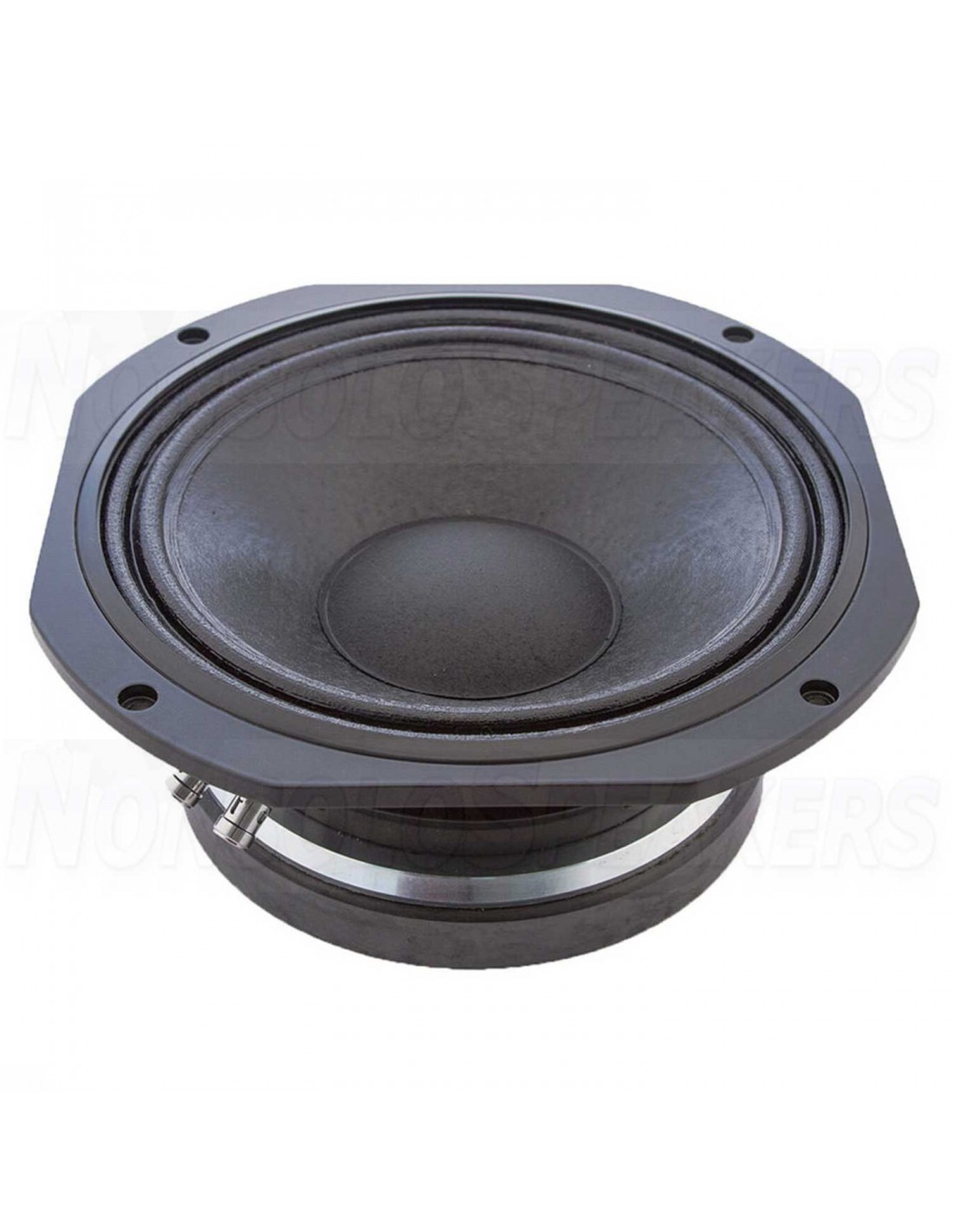

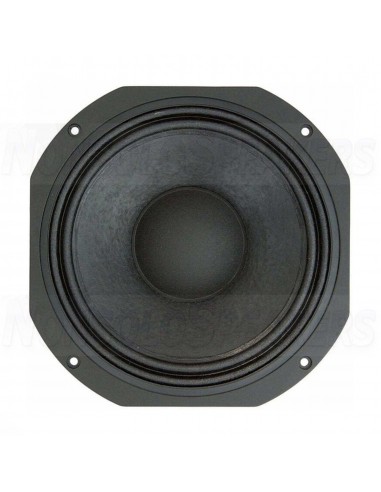

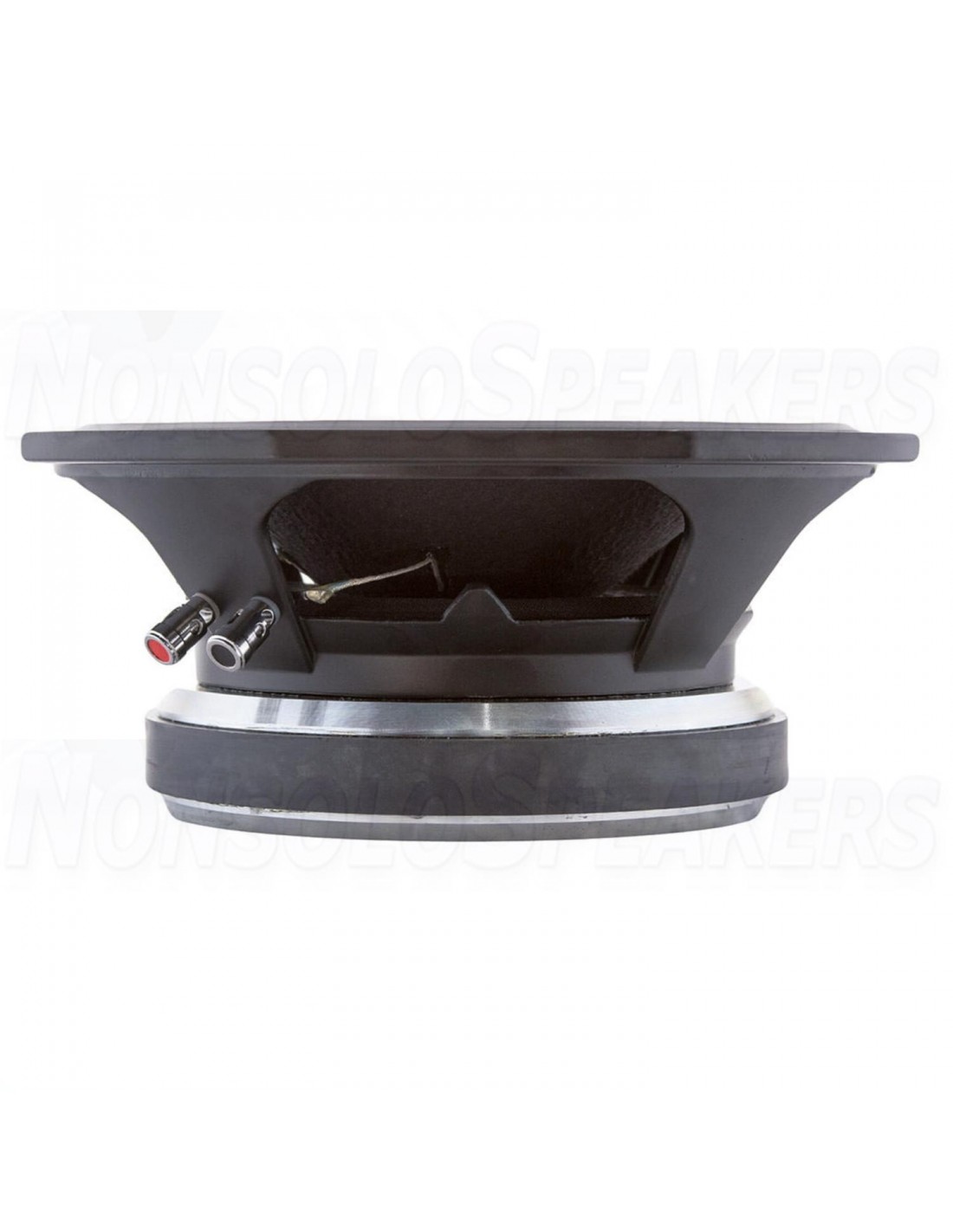

Volt Loudspeakers BM25004 10'' Bass-midwoofer 8 ohm

The Volt Loudspeakers BM2500.4 is a high-quality 10-inch bass-midwoofer designed for use in nearfield studio monitors, where accuracy and realism are paramount.

.

Highlights

Massive symmetrical field magnet and extended pole for maximum linearity

Critically matched doped cone, linen surround, and dome for low midband coloration

High sensitivity of 93 dB/W/m

Wide frequency response range of 25 Hz to 2000 Hz.

.

Product details

Volt BM2500.4 Bass-Midwoofer High-Power Driver

The Volt BM2500.4 is engineered for two-way nearfield studio monitors, delivering superb accuracy and realism. This 10-inch driver incorporates a massive magnet with a symmetrical field and extended pole piece, paired with an exceptionally long voice coil for maximum linearity. The cone, linen surround, and dome are critically matched and doped to ensure very low midband coloration, resulting in an analytical sound quality with stunning dynamic range. The driver’s design ensures consistent performance, making it an excellent choice for professional studio applications.

The Volt BM2500.4 Bass-Midwoofer combines precision engineering and robust construction to provide reliable and high-fidelity audio performance, ideal for demanding studio environments.

.

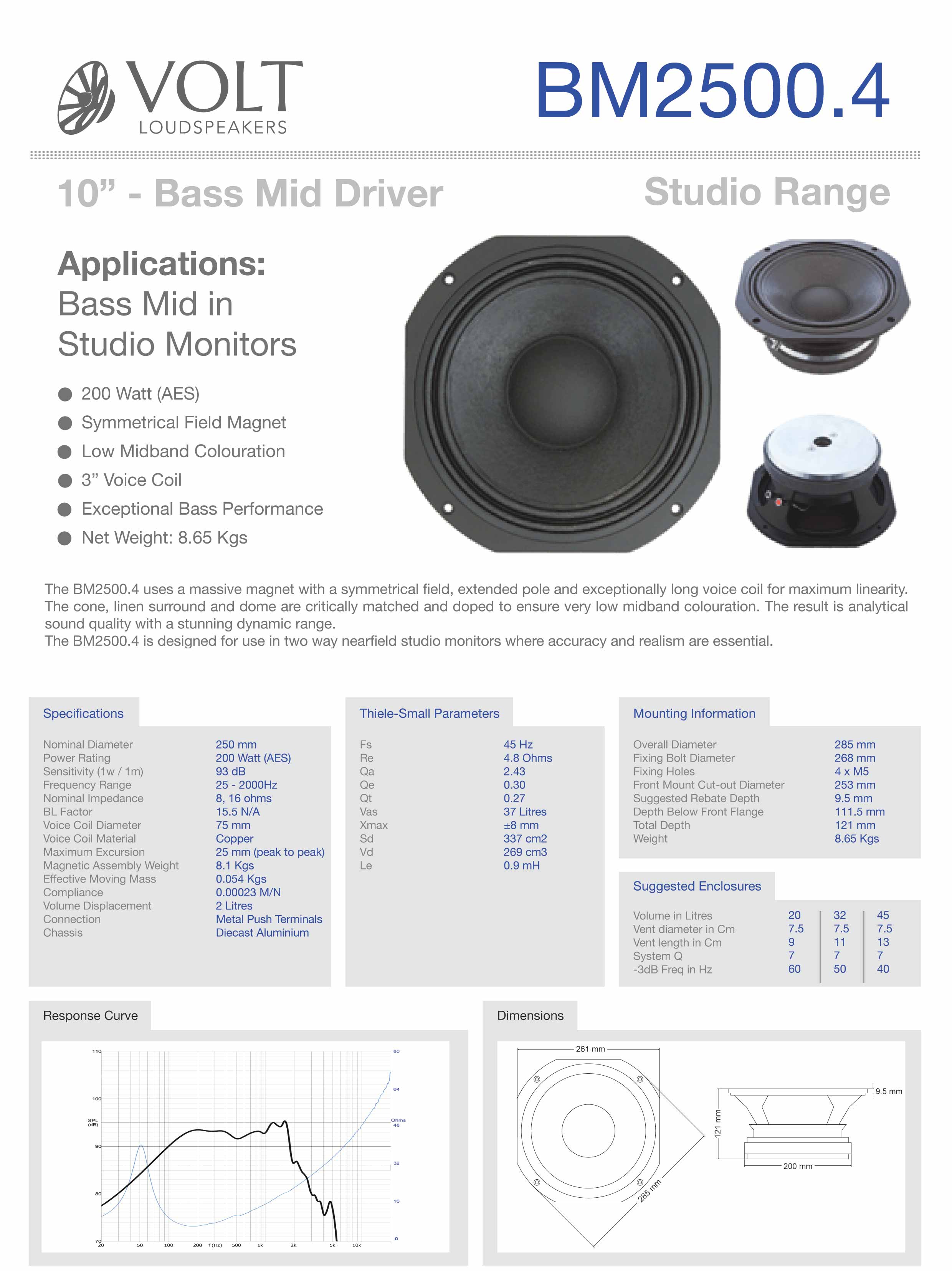

Technical Specifications:

Nominal Diameter: 250 mm (10 inches)

Power Handling: 200W RMS

Sensitivity: 93 dB/W/m

Frequency Response: 25 Hz - 2000 Hz

Impedance: 8 or 16 ohms

Voice Coil Diameter: 75 mm

Maximum Excursion: ±8 mm

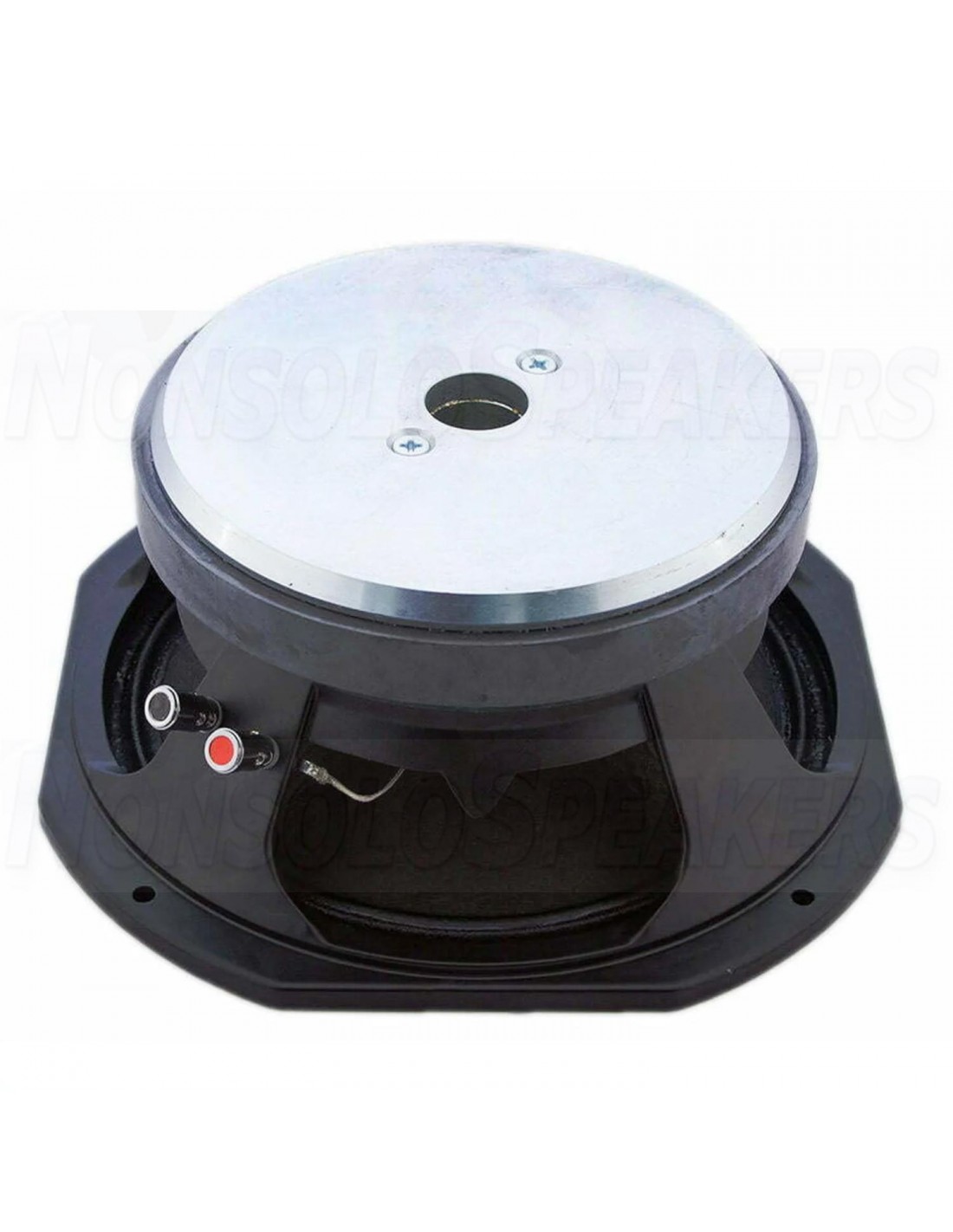

Magnet Assembly

Weight: 8.1 kg

Overall Diameter: 285 mm

Mounting Depth: 121 mm

Chassis: Diecast Aluminium
