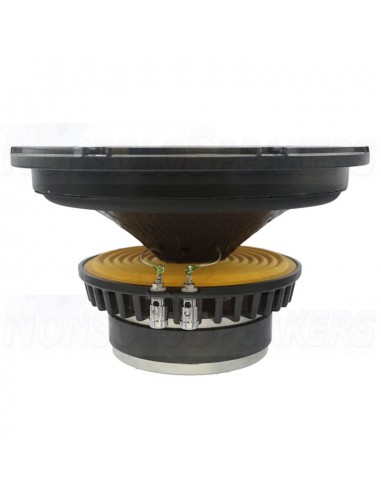

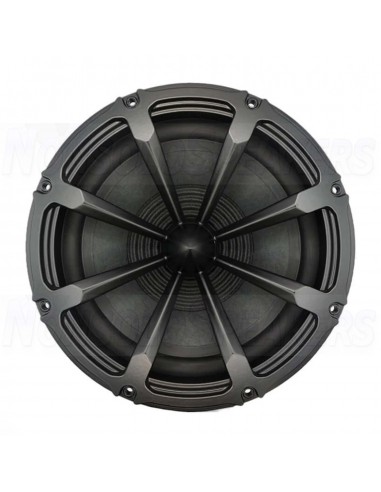

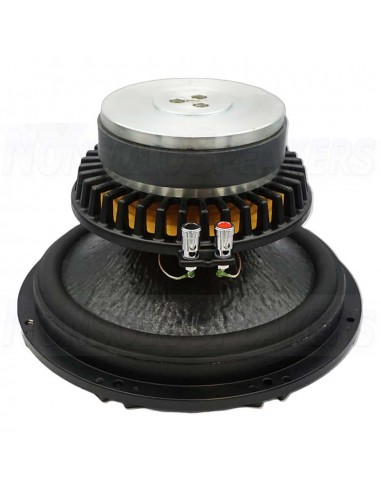

Volt Loudspeakers RV2501 10'' Radial Subwoofer 8 ohm

The Volt Loudspeakers RV2501 Radial Subwoofer is a high-performance 10-inch subwoofer designed with advanced Radial Technology for exceptional power handling and reliability.

.

Highlights

Radial chassis technology for superior cooling and heat dissipation

Triple cooling system: vented magnet, Radial chassis, and multi-finned magnet intercooler

High sensitivity of 91 dB/W/m

Wide frequency response range of 30 Hz to 800 Hz

.

Product details

Volt RV2501 Subwoofer Radial Bass Driver

The Volt RV2501 is meticulously designed to deliver consistent performance and visual appeal, making it suitable for both smaller studios and home hi-fi systems. Its Radial Technology allows for superior power handling and exceptional reliability. The RV2501 features a unique three-tiered cooling system: a vented magnet, the Radial chassis acting as a heatsink, and a multi-finned magnet intercooler. This design ensures low voice coil and magnet temperatures, resulting in reduced power compression and tight, clean bass even during prolonged operation at maximum power.

The Volt RV2501 Radial Subwoofer is engineered for optimal performance and reliability, making it a top choice for audio professionals and enthusiasts seeking high-fidelity bass reproduction.

.

Technical Specifications:

Nominal Diameter: 250 mm (10 inches)

Power Handling: 250W RMS, 500W Program Power

Sensitivity: 91 dB/W/m

Frequency Response: 30 Hz - 800 Hz

Impedance: 8 ohms

Voice Coil Diameter: 50 mm

Maximum Excursion: ±5 mm

Magnet Assembly Weight: 5.2 kg

Overall Diameter: 270 mm

Mounting Depth: 149 mm

Chassis: High-Pressure Diecast Aluminium
