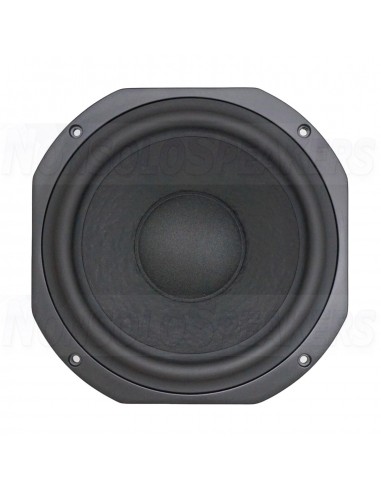

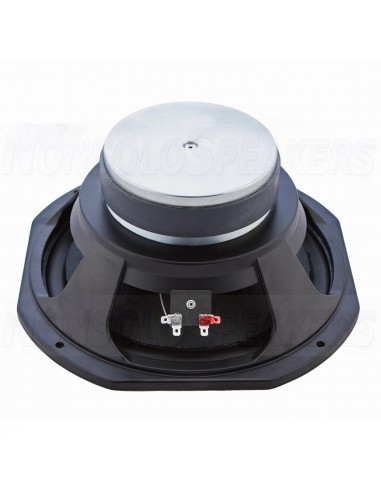

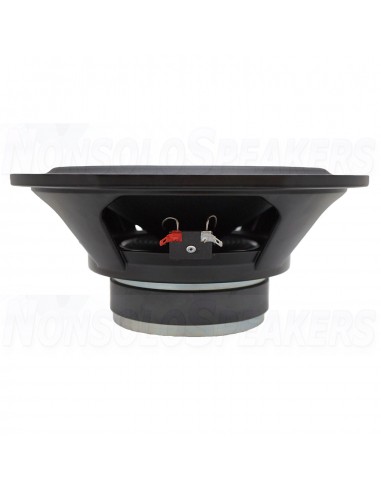

Volt Loudspeakers B2518 10'' Subwoofer 8 ohm

The Volt Loudspeakers B2518 is a 10" subwoofer designed to deliver powerful and low-distortion bass performance, optimized for extended bass response in high-end audio systems.

.

Highlights

10" paper cone for rigidity and minimal coloration

Symmetrical field magnet system for maximum linear excursion

Double rear suspensions for transient stability

Optimized for bass extension in various enclosures

.

Product details

Volt Loudspeakers B2518 Subwoofer

The B2518 subwoofer features a 10" cone made of rigid paper to ensure true piston movement with minimal coloration. The symmetrical field magnet system, along with a long voice coil, enables large linear excursions essential for deep bass reproduction. The double rear suspensions ensure transient stability even at high power levels, making it suitable for demanding audio environments.

Operating within a frequency range of 24 to 1000 Hz, the B2518 has a sensitivity of 90 dB/W/m and a power handling capacity of 150 watts AES. It is available in 4, 8, or 16 ohm versions, offering flexibility for different system configurations. The driver’s chassis is made of diecast aluminum, providing durability and reliability​​.

.

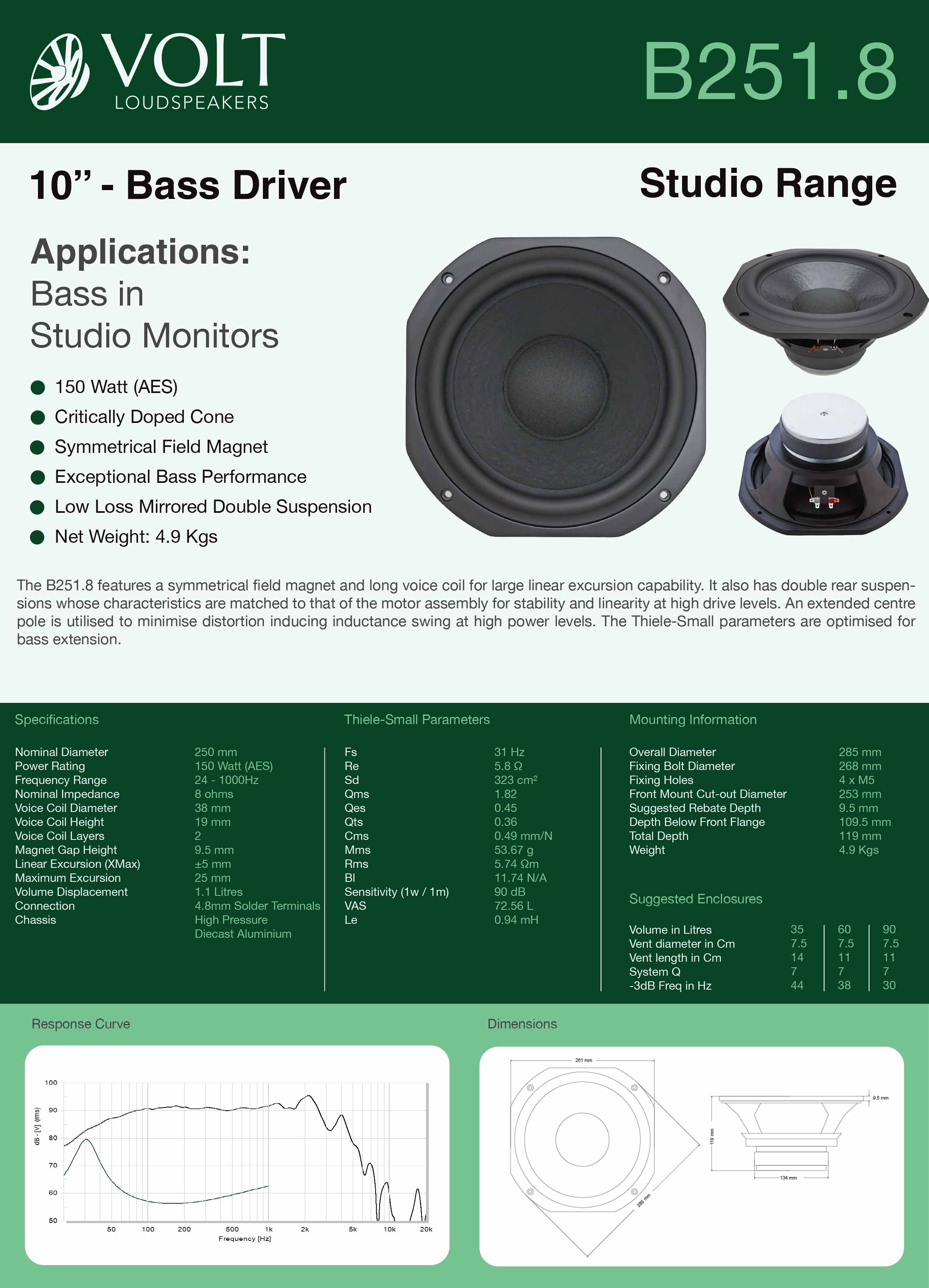

Technical Specifications:

Nominal Diameter (mm): 250

Power Capacity (Watt AES): 150

Frequency Range (Hz): 24-1000

Impedance (Ohms): 8

Magnet Gap Height (mm): 9.5

Linear Excursion (XMax) (mm): ±5

Maximum Excursion (mm): 25

Volume Displacement (litres): 1.1

Voice Coil Material: Copper

Voice Coil Diameter (mm): 38

Voice Coil Height (mm): 19

Voice Coil Layers (mm): 2

Magnet Assembly Weight (Kg): 3.6

Connection: 5mm Solder Terminals

Chassis: Diecast Aluminium

Overall Diameter 285mm

Mounting Bolt Circle Diameter 268mm

Number and Size of Bolts 4 M5

Baffle Cutout Diameter 253mm front mount

Baffle Cutout Diameter 245mm rear mount

Depth 109.5mm below front flange

Depth 119mm total depth

Weight 4.9Kg
