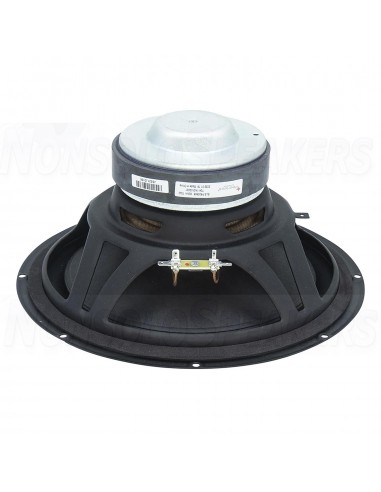

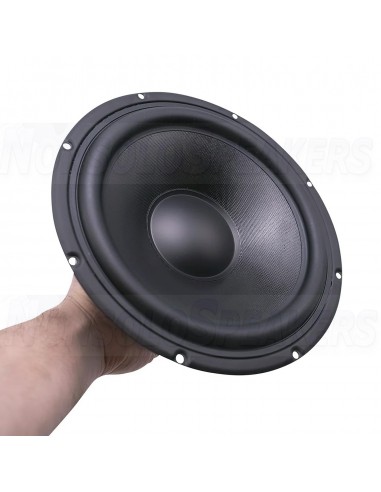

Peerless by Tymphany SLS-P830668 Subwoofer

.

Product description

The Peerless SLS Series combines high quality performance with an affordable design.

.

Highlights

Premium sculpted stamped steel chassis

Coated paper cone with rubber edge

Shorting ring in magnet system

.

Product details

Peerless by Tymphany SLS-P830668 10" Paper Cone SLS Subwoofer

The SLS line combines high quality performance with an affordable design. This 10 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.

.

Specifications

Article number SLS-P830668

Woofer Type Subwoofer

Nominal Diameter 10"

Power Handling (RMS) 70 Watts

Power Handling (max) 140 Watts

Impedance (Z) 8 ohms

Sensitivity (SPL at 1m / 2.83V) 87.9 dB

Frequency Response 30 to 2,000Hz

Voice Coil Diameter 1.5"

DC Resistance (Re) 5.6 ohms

Voice Coil Inductance (Le) 1.37 mH

Resonant Frequency (Fs) 32 Hz

Mechanical Q (Qms) 7.1

Electromagnetic Q (Qes) 0.59

Total Q (Qts) 0.55

Diaphragm Mass Inc. Airload (Mms) 56.28g

Mechanical Compliance of Suspension (Cms) 0.43 mm/N

Surface Area of Cone (Sd) 346.4 cm²

BL Product (BL) 10.42 Tm

Compliance Equivalent Volume (Vas) 2.57 ft.³

Maximum Linear Excursion (Xmax) 8.3 mm

Cone / Diaphragm Material Coated Paper

Surround Material Rubber

Basket / Frame Material Steel

Magnet Material Ferrite

Overall Outside Diameter 10"

Overall Depth 5.24"

Baffle Cutout Diameter 8.9"

# Mounting Holes 8

Sealed Volume 1.25 ft.³

Sealed F3 56 Hz

Vented Volume 3.92 ft.³

Vented F3 28 Hz
